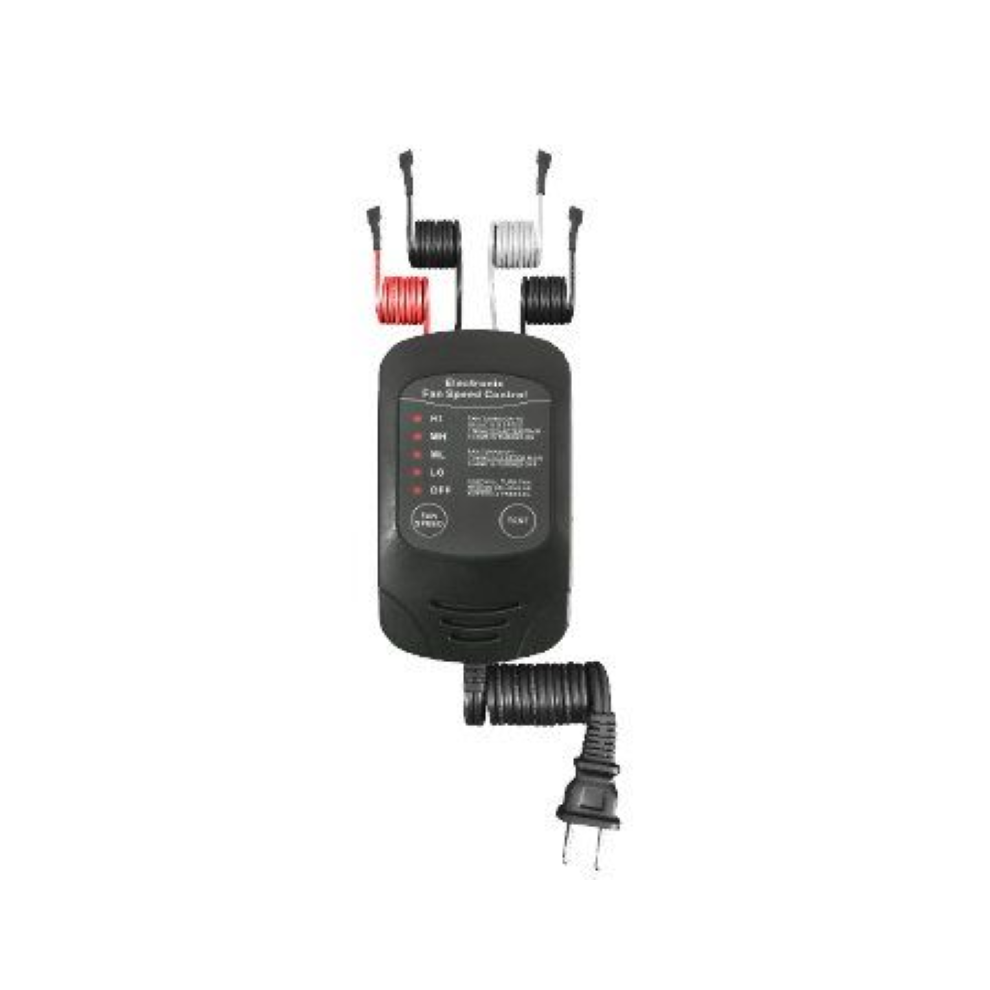

Skytech Electronic Fan Speed Control, Multi-Speed Fireplace Blower Control with Timer | FK-ESC
Skytech Electronic Fan Speed Control, Multi-Speed Fireplace Blower Control with Timer | FK-ESC
The Skytech FK-ESC is an electronic fan speed control that runs an existing fireplace blower off the main flame. It turns the fan on 7 minutes after the main burner lights and off 12 minutes after it goes out, with four speeds to choose from. It is made to retrofit the fan or blower on a hearth product with a millivolt or electronic IPI valve system.
Details
| Model | FK-ESC |
|---|---|
| Type | Electronic fan speed control with timed start and stop |
| Timing | Fan on 7 minutes after the main flame lights, off 12 minutes after it goes out |
| Speeds | Hi, Medium Hi, Medium Lo, Lo and OFF; remembers the last setting; TEST button runs the fan on Hi |
| Fan capacity | 200 watts |
| Valve systems | Millivolt or electronic IPI (senses 50mV DC to 9VDC); not for 24VAC gas valve systems |
| Power | 120VAC through an approved factory installed junction box |
| In the box | FK-ESC control, ACF10 10 inch cord with ground wire and receptacle, jumper wire for IPI valves, jumper wire for power strips, connector hardware |
| Warranty | Two years from purchase or installation, original owner |
| Brand | Skytech |
Questions people ask us
Will it work with my fireplace?
The FK-ESC reads the signal from a millivolt or electronic IPI valve and will not operate with a 24VAC gas valve system. The instructions include extra steps for SIT valves and Dexen IPI valves. Send us the fireplace model and we will check.
Can I use it with the fan I already have?
Yes, that is what it is built for. Your existing fan plugs into the included ACF10 cord, and the FK-ESC plugs into the original fan outlet. Skytech rates it for a 200 watt universal fan capacity.
How do I change the fan speed?
Press the FAN SPEED button and the LEDs show which of the four speeds is set. The control remembers your last setting, and holding TEST runs the fan on Hi so you can check the wiring.
Is there a kit that includes a blower?
Yes. The FK-165-ESC pairs this control with the low profile F-165-1 blower, and the FK-180-ESC pairs it with the dual fan F-180-1 blower.
Goes with this
Manuals and warranty
Warranty terms come from Skytech and depend on the product. Read the manual and the warranty for your model before you order.
Our warranty library· FK-ESC instructions (PDF)Ask us before you order
