Skytech Universal Fireplace Fan Kit, Dual Fan Blower with FK-ESC Control | FK-180-ESC
Skytech Universal Fireplace Fan Kit, Dual Fan Blower with FK-ESC Control | FK-180-ESC

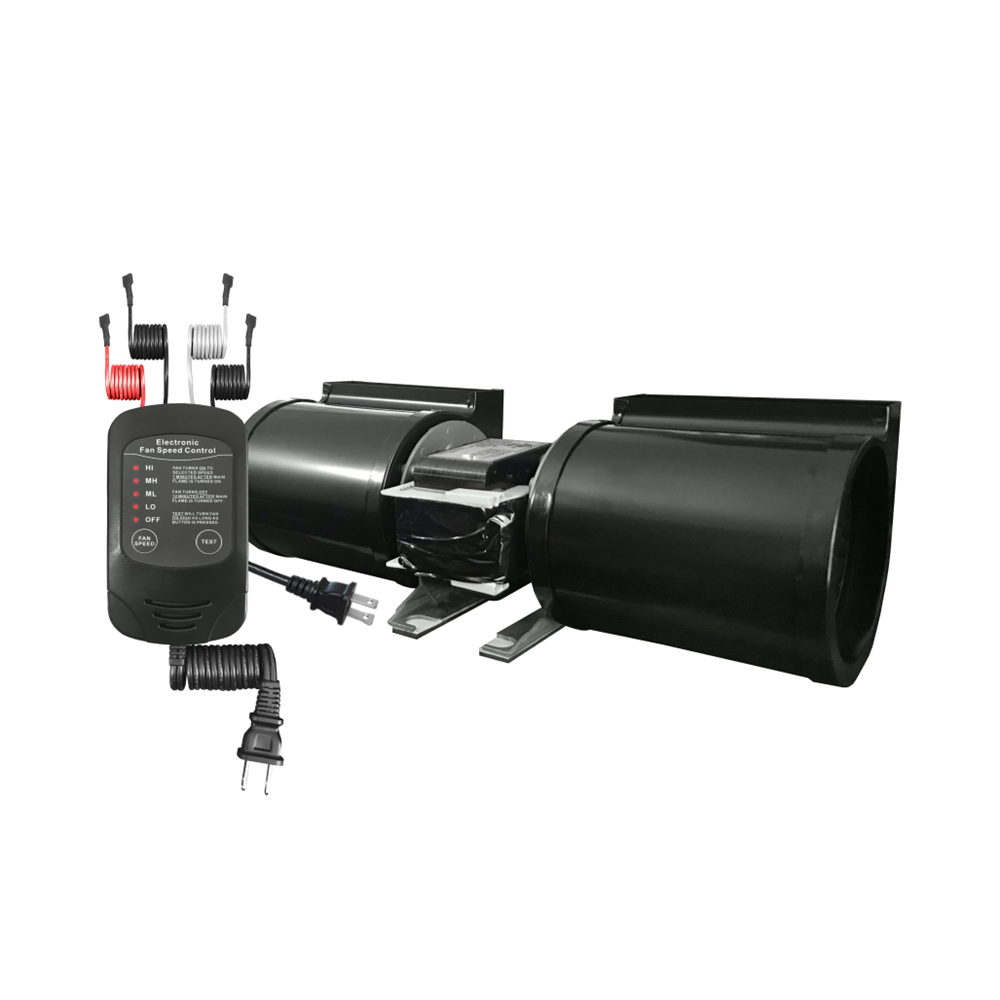

The Skytech FK-180-ESC is a universal fireplace fan kit that combines the F-180-1 dual fan blower with the FK-ESC electronic speed control. The control reads the gas valve, starts the fan 7 minutes after the main flame comes on and stops it 12 minutes after the flame goes out. Skytech built it to circulate room air through many hearth products with a millivolt or IPI valve system.
Details
| Model | FK-180-ESC |
|---|---|
| Blower | F-180-1 dual fan blower, sealed ball bearings, heavy duty build |
| Blower size | 12-3/4" L x 4-3/8" H x 4-5/16" D |
| Control | FK-ESC: fan on 7 minutes after the main flame lights, off 12 minutes after it goes out |
| Speeds | Hi, Medium Hi, Medium Lo, Lo and OFF; TEST button runs Hi while held |
| Valve systems | Millivolt or IPI (sense voltage 50mVDC to 9VDC); will not operate with a 24VAC gas valve system |
| Power | 120VAC, 60Hz through an approved factory installed junction box |
| Mounting | Magnetic quick mount with anti-vibration magnetic strips |
| In the box | F-180-1 fan with two leads and a ground wire, FK-ESC control, IPI jumper wire, power strip jumper wire, connectors |
| Certification | ETL certified to CSA C22.2 and UL-1004 |
| Brand | Skytech |
Questions people ask us
Will it fit my fireplace?
Skytech designed it to move room air through many hearth products. The blower measures 12-3/4" L x 4-3/8" H x 4-5/16" D, and your fireplace manual decides whether a fan kit is allowed and where it goes. Send us the model and we will check.
Which gas valves does it work with?
The FK-ESC reads millivolt or IPI valve systems, and Skytech's diagrams include Dexen and SIT IPI valves. It will not operate with a 24VAC gas valve system.
How does the fan know when to run?
It follows the main flame: on 7 minutes after it lights and off 12 minutes after it goes out. Pick a speed with the FAN SPEED button, and hold TEST to run the fan on high for a quick check.
Does it need any upkeep?
Skytech calls for cleaning the fan twice a year, and that cleaning is required to keep the warranty in effect. Modifying the fan system voids the warranty.
How is it different from the FK-180-RT?
Both use the same F-180-1 blower. The FK-180-RT uses a rheostat knob and a temperature sensor, while this kit uses the FK-ESC control that follows the flame.
Goes with this
Manuals and warranty
Warranty terms come from Skytech and depend on the product. Read the manual and the warranty for your model before you order.
Our warranty library· FK-180-ESC instructions (PDF)Ask us before you order
