Skytech Universal Fireplace Fan System, Dual Fan Blower with Power Cord | F-180-1
Skytech Universal Fireplace Fan System, Dual Fan Blower with Power Cord | F-180-1

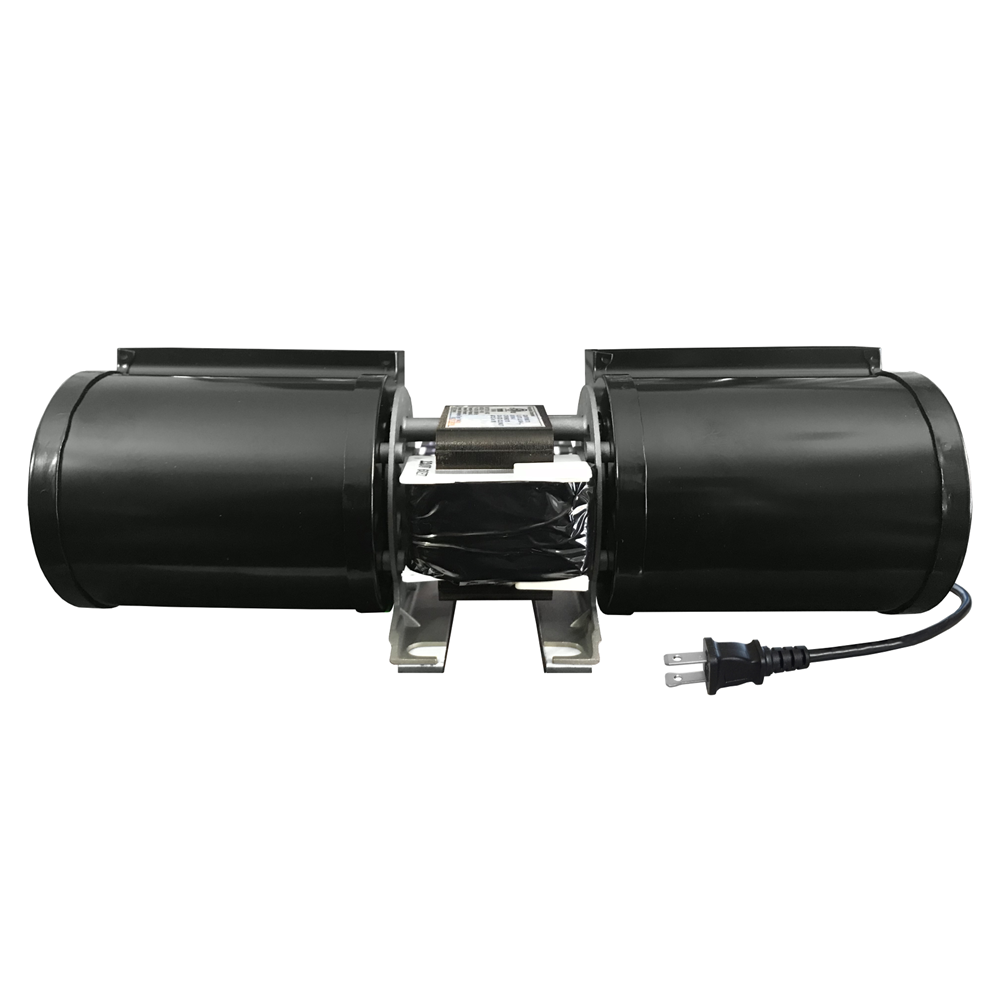

The Skytech F-180-1 is a universal fireplace blower with dual fan blades and a 24 inch power cord. It mounts at the back of the appliance where the old fan sat, held in place by magnetic feet, and connects to your existing fan control or power source. Skytech designs it to fit many hearth products.
Details
| Model | F-180-1 |
|---|---|
| Type | Universal fireplace fan, blower only |
| Fan | Dual fan blades, sealed ball bearings, heavy duty construction |
| Size | 12-3/4" W x 4-3/8" H x 4-5/16" D |
| Power | 120VAC, 60Hz through an approved factory installed junction box |
| Cord | ACM24, 24 inch polarized cord |
| Mounting | Magnetic quick mount with anti-vibration magnetic feet; housing sits 1/8" to 1/4" off the back wall |
| In the box | F-180-1 fan with two leads, ground wire and magnetic feet; ACM24 cord |
| Certification | Recognized component to UL 1004-1, UL 1004-3, CSA C22.2 No. 100-04 and CSA C22.2 No. 77-95 |
| Warranty | Two years from purchase, original owner |
| Brand | Skytech |
Questions people ask us
Will it fit my fireplace?
Skytech designs it for many hearth products. The blower measures 12-3/4" W x 4-3/8" H x 4-5/16" D and goes in the rear of the appliance where the previous fan was. Your appliance manual decides whether a fan is allowed and where it goes, so send us the model and we will check.
Does it come with a speed control?
No, this is the blower and cord only. It attaches to your existing control or power source. For a complete kit, the FK-180-ESC adds the FK-ESC electronic control and the FK-180-RT adds a rheostat and temperature sensor.
How is it wired?
Match the ACM24 cord to the fan leads, black to black and white to white, and attach the green ground wire to an accessible ground. Power has to come through the hearth manufacturer's approved factory installed junction box.
How do I keep it running well?
Clean it twice a year. Skytech suggests a vacuum with a brush to clear dust from the fan blades, air inlets and blower outlet, and semi-annual cleaning is part of keeping the two year warranty.
Goes with this
Manuals and warranty
Warranty terms come from Skytech and depend on the product. Read the manual and the warranty for your model before you order.
