Skytech Standing Safety Pilot Valve Kit with Variable Flame Remote | AF-LMF-RV

Skytech Standing Safety Pilot Valve Kit with Variable Flame Remote | AF-LMF-RV

Regular price $625.00
Regular price $750.00 Sale price $625.00
Sale Sold out
Shipping calculated at checkout.
Skytech Standing Safety Pilot Valve Kit with Variable Flame Remote | AF-LMF-RV
View full details

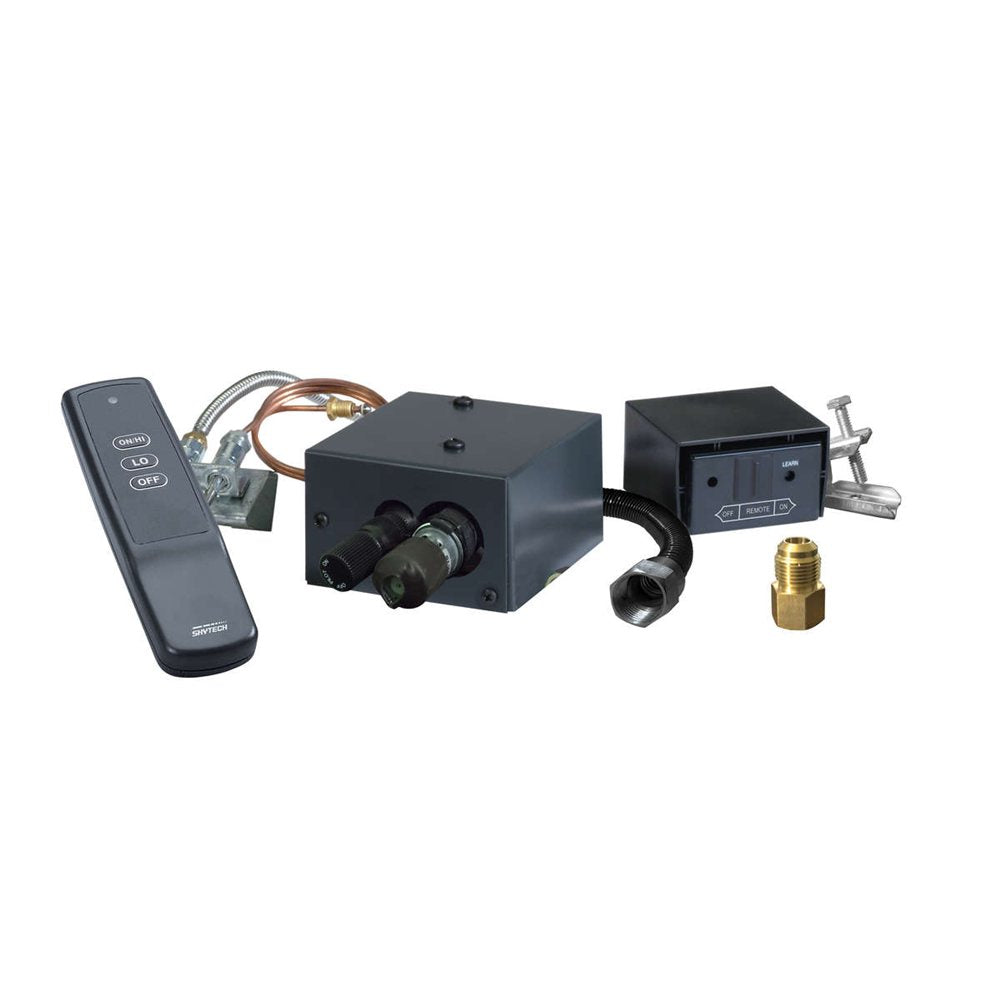

The Skytech AF-LMF-RV is a 30-millivolt standing safety pilot valve kit with a variable flame remote, made for vented gas logs. It pairs the AF-LMF valve kit with the RCAF-LMF-V remote package, which adds the RCAF-1020-1 remote and a motor drive on the valve. Skytech recommends it for vented gas log sets under 70,000 BTUs.

Standing pilot30-millivolt safety pilot
Variable flame remoteRCAF-1020-1
225°F rated valveSafety seal in the valve
3-3/4" x 4" x 2-3/4"Valve kit, W x D x H

Details

ModelAF-LMF-RV
Type30-millivolt manual safety pilot valve kit with variable flame remote
Made up ofAF-LMF valve kit plus RCAF-LMF-V remote package
UseVented gas log sets, 18 to 30 inch; recommended under 70,000 BTUs
GasNatural gas; LPK-18 or LPK-24 kit converts it to propane
PilotStanding pilot, lit by hand; quick mount pilot assembly
Valve225°F rated, safety seal within the valve
Valve kit size3-3/4" W x 4" D x 2-3/4" H
In the boxValve kit, flex line, damper clamp, 3/8" to 1/2" flare adapter, transmitter, receiver, wall clip, motor drive, extension knob, hardware, batteries, instructions
BrandSkytech
Keep the damper cracked open and the glass doors open.Skytech uses the damper clamp to stop the damper closing so the pilot can vent, and says never to run the logs with the fireplace glass doors closed. A qualified installer should connect it to a supply under 1/2 psi and leak test every fitting with soapy water.

Questions people ask us

What size log set is it for?

Skytech designs the AF-LMF kits for vented gas log sets from 18 to 30 inches, and recommends this variable flame version for sets under 70,000 BTUs.

Can it run on propane?

Yes, with a conversion kit. The LPK-18 or LPK-24 converts the AF-LMF kit from natural gas to propane, depending on burner size.

Does it need electricity?

No. The valve is a millivolt standing pilot system and the remote runs on batteries. Skytech warns that connecting 120V power will damage the system and void the warranty.

How is it different from the AF-LMF-RVS?

The AF-LMF-RVS uses a High, Medium, Low remote and Skytech does not recommend it for sets under 70,000 BTUs. This kit is the one Skytech suggests below that size.

Not sure the AF-LMF-RV suits your fireplace?

Send us the log set size, BTU rating and gas type and we will check it before you order. Ask us here.

Goes with this

Manuals and warranty

Skytech manuals and warranty

Warranty terms come from Skytech and depend on the product. Read the manual and the warranty for your model before you order.

Our warranty library· AF-LMF series instructions (PDF)
Not sure this is the right valve kit? Send us your log set size, BTU rating and gas type and we will check the kit before you order. No obligation either way.
Ask us before you order
