Skytech

Skytech Standing Safety Pilot Valve Kit, High, Medium, Low Remote Control | AF-LMF-RVS

Skytech Standing Safety Pilot Valve Kit, High, Medium, Low Remote Control | AF-LMF-RVS

Regular price $627.00
Regular price $752.40 Sale price $627.00
Sale Sold out
Shipping calculated at checkout.
Skytech Standing Safety Pilot Valve Kit, High, Medium, Low Remote Control | AF-LMF-RVS
View full details

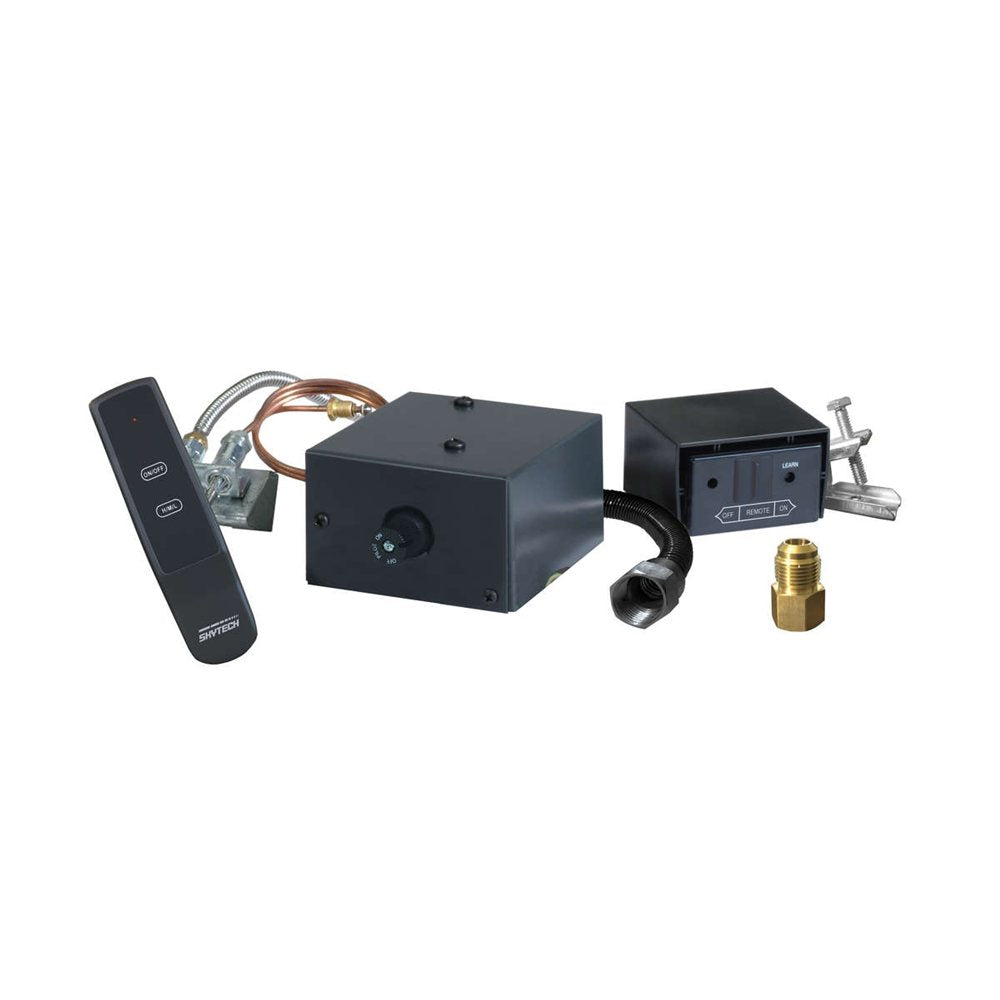

The Skytech AF-LMF-RVS is a millivolt standing safety pilot valve kit with a High, Medium, Low remote, made for vented gas log sets. A step motor on the valve moves the flame between the three settings from the remote. Skytech sells it only as a complete unit and does not recommend it for vented gas log sets under 70,000 BTUs.

Standing pilotManual safety pilot
High, Medium, LowRemote flame settings
225°F rated valveSafety seal in the valve
3-3/4" x 4" x 2-3/4"Valve kit, W x D x H

Details

ModelAF-LMF-RVS
TypeMillivolt manual safety pilot valve kit with High, Medium, Low remote
RemoteRCAF-1035 transmitter and 6-volt receiver, per the AF-LMF series manual
ValveAF-1005 with step motor; 225°F rated, safety seal within the valve
UseVented gas log sets, 18 to 30 inch; not recommended under 70,000 BTUs
GasNatural gas; LPK-18 or LPK-24 kit converts it to propane
PilotStanding pilot, lit by hand; quick mount pilot assembly
Valve kit size3-3/4" W x 4" D x 2-3/4" H
Also includedDamper clamp
BrandSkytech
Install it with a qualified gas installer and a working shut-off.Skytech's manual calls for a supply under 1/2 psi with an individual manual shut-off within 6 feet of the fireplace or as local code requires, a soapy water leak test, and the valve box at least 2 inches from the side of the grate. Never run the logs with the glass doors closed.

Questions people ask us

What size log set is it for?

The AF-LMF kits are designed for vented gas log sets from 18 to 30 inches. Skytech does not recommend the RVS for sets under 70,000 BTUs; for those, it suggests the AF-LMF-RV.

How does the remote control the flame?

The receiver drives a step motor on the valve to set the flame at High, Medium or Low. Pilot lighting stays manual, since this is a standing pilot kit.

Can it run on propane?

Yes, with a conversion kit. The LPK-24 or LPK-18 converts the AF-LMF kit from natural gas to propane, depending on burner size.

Can I replace just the remote later?

Yes. The RCAF-1035 is the High, Medium, Low remote for this valve kit.

Not sure the AF-LMF-RVS suits your fireplace?

Send us the log set size, BTU rating and gas type and we will check it before you order. Ask us here.
