Skytech Standing Pilot Valve System, 30-Millivolt Vented Gas Log Kit | AF-LMF

Skytech Standing Pilot Valve System, 30-Millivolt Vented Gas Log Kit | AF-LMF

Regular price $317.00
Regular price $380.40 Sale price $317.00
Sale Sold out
Shipping calculated at checkout.
Skytech Standing Pilot Valve System, 30-Millivolt Vented Gas Log Kit | AF-LMF
View full details

The Skytech AF-LMF is a 30 millivolt standing safety pilot valve kit with a manual on/off valve, made for vented gas log sets from 18 to 30 inches. It ships for natural gas with a flex line, damper clamp and 3/8" to 1/2" flare adapter, and it is the base model that Skytech's remote upgrade kits build on.

Standing pilot30 millivolt safety pilot
18" to 30" setsVented gas logs
Safety sealInside the gas valve
Remote readyWith a Skytech upgrade kit

Details

ModelAF-LMF
TypeManual on/off standing safety pilot valve system
UseIndoor vented gas fireplace burners and vented gas log sets, 18 to 30 inch
GasNatural gas; propane with the LPK-18 or LPK-24 conversion kit
ValveAF-1000 gas valve, 225°F rated, safety seal within the valve
Valve kit size3-3/4" W x 4" D x 2-3/4" H
PilotQuick mount pilot assembly that clips onto the burner pan
Connections3/8" flare inlet and outlet; adapter converts to 1/2" flare

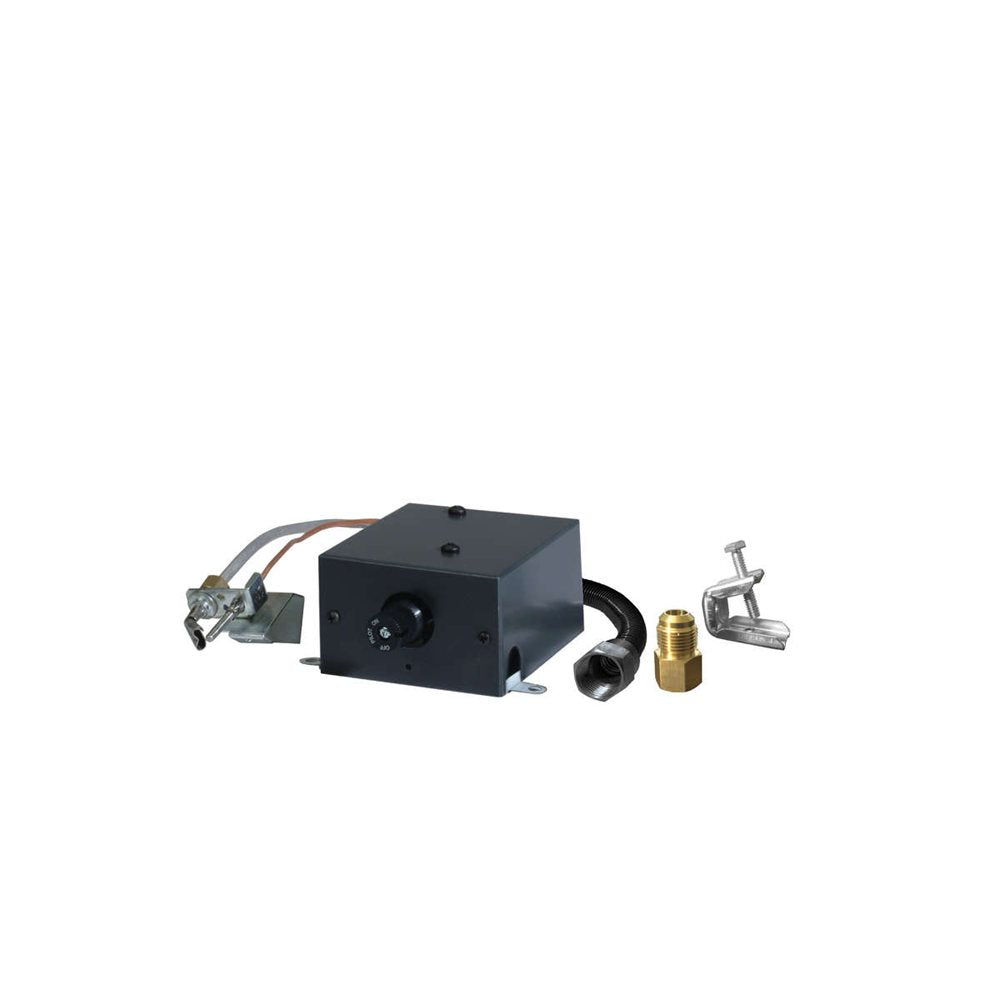

In the boxValve kit, flex line, damper clamp, 3/8" to 1/2" flare adapter, instructions
BrandSkytech
Have a qualified installer connect and leak test the gas.Skytech calls for a soapy water check on every connection, a gas supply under 1/2 psi with its own manual shutoff, and the glass doors fully open whenever the logs are burning. Keep the valve box at least 2 inches from the grate.

Questions people ask us

What size log set does it fit?

Skytech designed it for vented gas log sets from 18 to 30 inches. Follow the log set maker's instructions for the burner and media.

Can I run it on propane?

It ships for natural gas. Skytech offers the LPK-18 and LPK-24 conversion kits with pilot orifices, and recommends an inlet pressure regulator on every propane installation.

Can I add a remote later?

Yes. The AF-LMF is the base model of the series and accepts Skytech upgrade kits, such as the RCAF-LMF-WWS wireless wall switch, which adds a latching solenoid to the valve.

Why does it come with a damper clamp?

The clamp holds the chimney damper slightly open so pilot exhaust can vent. Skytech's instructions have you install it on the damper edge.

Not sure the AF-LMF suits your fireplace?

Send us the fireplace type, log set size and gas type, and we will confirm it before you order. Ask us here.

Goes with this

Manuals and warranty

Skytech manuals and warranty

Warranty terms come from Skytech and depend on the product. Read the manual and the warranty for your model before you order.

Our warranty library
Not sure this is the right valve kit? Send us your fireplace type, log set size and gas type, and we will check the kit before you order. No obligation either way.
Ask us before you order
