Enervex GSV 012 Pizza Oven Fan, 120V
Enervex GSV 012 Pizza Oven Fan, 120V

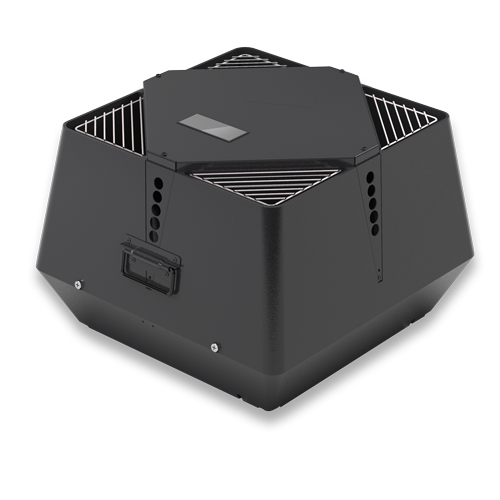

The Enervex GSV 012 is a 120 volt pizza oven exhaust fan rated at 875 CFM, built for gas and wood fired ovens. It mounts at the top of the chimney or grease duct, vertically or on a side wall, and its axial vane design is self cleaning. The cast aluminum housing opens on a hinge for cleaning and service. Part number GSV-012.
Specifications
| Model | GSV 012 (part number GSV-012) |
|---|---|
| Use | Pizza ovens on natural gas, LP gas or solid fuel, through a hood or a direct chimney connection |
| Capacity | 875 CFM at 0.0 in. static pressure |
| Electrical | 1 x 120 VAC, 1.4 A |
| Speed | 1600 RPM, variable speed |
| Motor | Single phase, split capacitor, totally enclosed, IP54, sealed ball bearings, thermal overload protection |
| Weight | 46 lbs (18 kg) |
| Dimension B x B (per Enervex drawing) | 15.37 in. |
| Construction | 3/16 in. cast aluminum housing in grey hammer paint, stainless steel axial vanes, vertical discharge |
| Temperature rating | 575°F (300°C) |
| Standard equipment | Junction box with cover and conduit, bird screen |
| Optional equipment | 5 or 8 amp fan speed control, neoprene gasket, roof curb |
| Listings | ETL listed to UL 705, UL 705 Supplement SC and ULC-S645-93 |
| Brand | Enervex |
Questions people ask us
Does it work with a wood fired oven?
Yes. Enervex lists the GSV for natural gas, LP gas and solid fuel, and it is built to handle the creosote that wood produces.
How do I mount it?
It mounts on a steel chimney adapter (SCA) or on a roof curb, sealed watertight without blocking the four drain holes in the base.
Is a speed control included?
The standard equipment is the junction box and bird screen. Enervex offers a 5 or 8 amp fan speed control as an option, and the ADC100 control also works with GSV fans.
How often does it need cleaning?
Enervex suggests checking every 2 weeks for the first couple of months to see how fast creosote builds, and cleaning wood fired commercial units at least once a month unless use shows less is enough. Clean all parts when deposits pass 1/16 in.
Is the GSV 012 the right size for my oven?
Send us the oven model, fuel and flue size and we will check the fan size with Enervex before you order.
Goes with this
Manuals and warranty
Warranty terms come from Enervex and depend on the product. Read the manual and the warranty for your model before you order.
Our warranty library· GSV 009 to 016 product information (PDF)· GSV 009 to 016 installation manual (PDF)Ask us before you order
