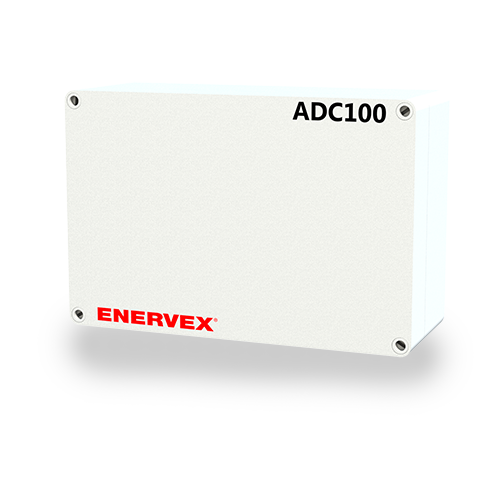

• Enervex ADC100 fan and damper control panel, model ADC100
1 1

Enervex

Enervex ADC100 Fan and Damper Control with Proven Draft Switch | ADC100

Enervex ADC100 Fan and Damper Control with Proven Draft Switch | ADC100

$1,139.00
$1,139.00
Sale Sold out
Shipping calculated at checkout.
Enervex ADC100 Fan and Damper Control with Proven Draft Switch | ADC100
View full details

The Enervex ADC100 is an indoor fan and damper control for Enervex RS and GSV fans, supplied with a PDS proven draft switch. It sets the fan speed, opens a damper, and only lets the appliance fire once the switch proves there is draft. It is the control in Enervex's EcoDamper system with an RS fan and MFD damper. Part number ADC100.

Variable speed10 to 120 VAC fan output
PDS includedProves draft before firing
Damper relayWith damper prove input
1 x 120 VACIndoor installation

Details

Part numberADC100
UseDraft control for a fireplace where modulation is not required
Works withEnervex RS and GSV fans; MFD damper
Supply1 x 120 VAC
Output10 to 120 VAC or 0 to 10 VDC
RelaysTwo control relays, max 120 VAC / 8 A
FunctionsVariable fan speed, adjustable post purge (0 to 3 minutes), damper relay with prove input, gas valve or ignition interlock, interlock for up to two appliances
IncludedControl, PDS1 proven draft switch, stack probe, 6 ft silicone tubing
EnclosureNEMA 1, ABS plastic, indoor only
Dimensions9.6 x 6.3 x 3.5 in., 2.6 lbs
Operating temperature-4°F to 122°F
BrandEnervex
Indoor installation by a qualified person.Enervex's manual calls for installation and wiring by a qualified person to local codes or the National Electrical Code. We recommend a licensed electrician, and a licensed gas professional for any gas valve connection.

Questions people ask us

What fans does it work with?

Enervex lists the ADC100 for its RS and GSV fans. It runs single phase 120V fans directly; three phase fans need a VFD. See the RS chimney fan.

Is the proven draft switch included?

Yes. It ships with the PDS1 proven draft switch, a stack probe and 6 ft of silicone tubing. The tubing can be extended to 25 ft with 1/4 in. rigid tubing, not supplied.

Can it run a chimney top damper?

Yes. It has a damper relay and a damper prove input, and it is the control Enervex pairs with the MFD mechanical fireplace damper.

Can it go outside?

No. The ADC100 has a NEMA 1 enclosure and is for indoor installation only.

Goes with this

RS chimney fanFor gas fireplaces and stoves MFD fireplace damper120V chimney top damper Fan controlsEnervex controls and relays All EnervexChimney fans, adapters and controls

Manuals and warranty

Enervex manuals and warranty

Warranty terms come from Enervex and depend on the product. Read the manual and the warranty for your model before you order.

Our warranty library· ADC100 product information (PDF)· ADC100 installation manual (PDF)
Not sure this is the right control? Tell us the fan, the appliance and whether you have a damper and we will confirm the control with you before you order. No obligation either way.
