Enervex
Enervex ASCA Steel Chimney Adapter for Air Cooled Chimneys
Enervex ASCA Steel Chimney Adapter for Air Cooled Chimneys

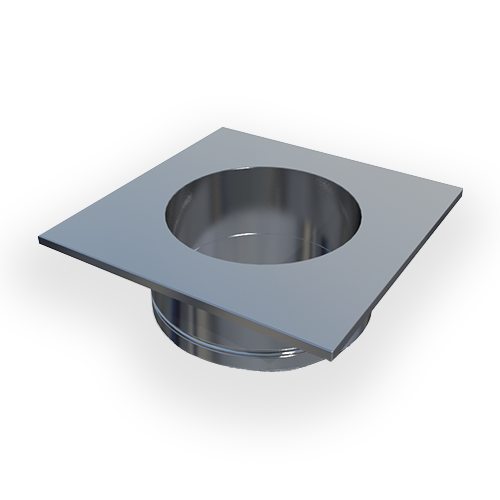

The Enervex ASCA is a stainless steel adapter for mounting an Enervex chimney fan on a double walled, air cooled steel chimney. A square plate supports the fan, a 5 inch collar slides into the chimney, and spacers underneath let air keep moving between the inner and outer walls. Offered here as 222.0400.2008 for an 8 in. flue and 222.0400.3010 for a 10 in. flue.
Details
| Part numbers | 222.0400.2008 (8 in. flue, RS 009 size), 222.0400.3010 (10 in. flue, RS 012 or RS 014 size) |
|---|---|
| Use | Mounting an Enervex RS or RSHT chimney fan on a round, double walled, air cooled steel chimney |
| Flue size | The inside diameter of the chimney |
| Collar | 5 in., outside diameter 1/8 in. smaller than the chimney inside diameter |
| Ventilation | Spacers under the plate let air circulate between the inner and outer walls |
| Material | 16 gauge 316L stainless steel |
| Installation | Slides into the chimney for a tight fit, no tools needed |
| Brand | Enervex |
Questions people ask us
How do I know if my chimney is air cooled?
An air cooled chimney has an open space between its inner and outer walls that air moves through. The chimney maker's label or manual will say so. If you are unsure, send us the chimney brand and model.
Which fan does each size fit?
In Enervex's chart the 8 in. adapter is in the RS 009 group and the 10 in. adapter is in the RS 012 and RS 014 group. Enervex describes the ASCA for its RS and RSHT fans.
What if my chimney is not air cooled?
Use the SCA steel chimney adapter, which covers single and double wall steel chimneys in more sizes.
Goes with this
Manuals and warranty
Warranty terms come from Enervex and depend on the product. Read the manual and the warranty for your model before you order.
Our warranty library· ASCA product information (PDF)Ask us before you order
