Enervex RSHT High Temperature Chimney Fan, 120V
Enervex RSHT High Temperature Chimney Fan, 120V

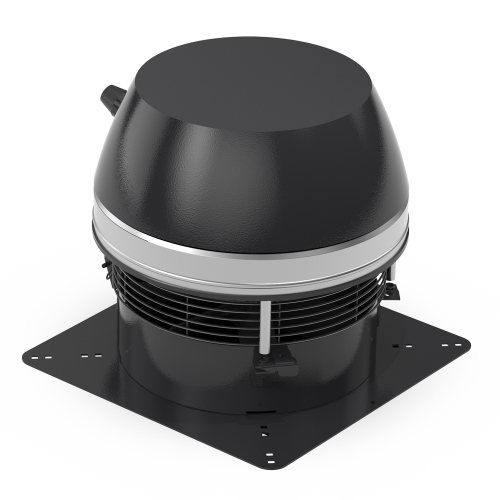

The Enervex RSHT is a high temperature chimney top exhaust fan with a stainless steel housing, made for solid fuel appliances. It mounts on top of the chimney and pulls smoke up and out of the flue, so a wood fireplace, stove, BBQ or pizza oven drafts properly. It comes in four sizes, RSHT009, RSHT012, RSHT014 and RSHT016, all on 120 volts with a variable speed motor.
Specifications

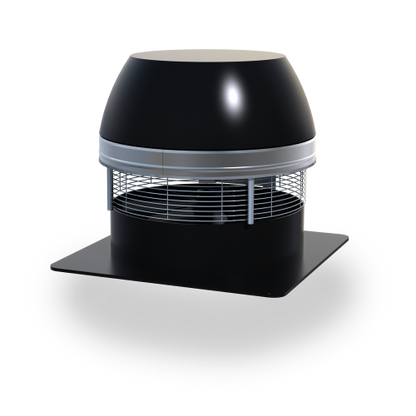

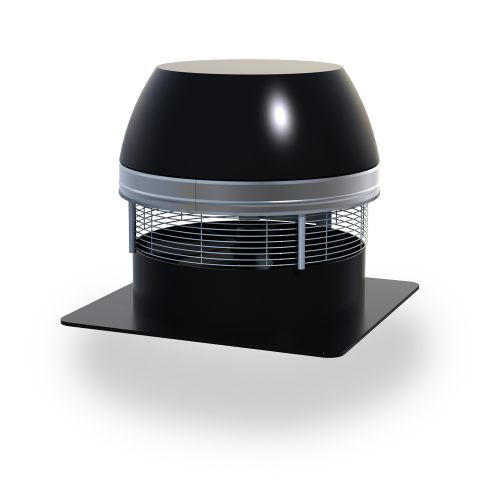

| Models | RSHT009, RSHT012, RSHT014, RSHT016 |
|---|---|
| Use | Solid fuel fireplaces, stoves, BBQs and pizza ovens |
| Capacity | RSHT009: 0 to 280 CFM. RSHT012: 0 to 575 CFM. RSHT014: 0 to 875 CFM. RSHT016: 0 to 1,480 CFM |
| Voltage | 1 x 120 VAC, 60 Hz |
| Amperage | RSHT009: 0.65 A. RSHT012: 1.33 A. RSHT014: 2.7 A. RSHT016: 4.4 A |
| Weight | RSHT009: 25.6 lbs. RSHT012: 33.5 lbs. RSHT014: 41.9 lbs. RSHT016: 47.2 lbs |
| Fan width (B x B) | RSHT009: 11.7 in. RSHT012: 14.3 in. RSHT014: 16.6 in. RSHT016: 18.8 in. |
| Construction | 3/16 in. stainless steel housing with black paint, stainless steel axial vane, horizontal discharge |
| Motor | Totally enclosed, split capacitor, variable speed, IP54, sealed ball bearings, thermal overload protection |
| Temperature rating | 1400°F (760°C) intermittent, 1000°F continuous |
| Standard equipment | Junction box with cover and conduit, fiber mat and mounting brackets, bird screen, 5 amp fan speed control |
| Listings | ETL listed to UL 378 and CSA CAN3-B255-M81 |
| Brand | Enervex |
Questions people ask us
Which RSHT size do I need?
Capacity runs from 280 CFM on the RSHT009 to 1,480 CFM on the RSHT016. Sizing depends on the appliance, the flue size and the chimney height, so send us those details and we will check the size with Enervex before you order.
Can I use it with gas?
The RSHT is made for solid fuel. Enervex allows gas or oil use only with a safety system as set out in its separate gas and oil instructions. For gas fireplaces, the RS chimney fan is the usual choice.
How does it mount on my chimney?
On a brick chimney the fan sits on the supplied fiber mat. On a round steel chimney it mounts on a SCA steel chimney adapter, and an air cooled steel chimney needs a special adapter. Steel chimneys more than 20 ft above the roof should be braced with wires at 2 to 3 points.
Can I run two fans on one chimney?
Yes, with a special adapter plate of 14 gauge or thicker. The fans must be the same model and size and run together from one speed control.
How often should it be cleaned?
Inspect the fan at least once a year with the chimney. Enervex suggests chimney cleaning about twice a year for regular fireplace use, more often for daily use, and every 2 to 3 months for commercial pizza ovens.
Goes with this
Manuals and warranty
Warranty terms come from Enervex and depend on the product. Read the manual and the warranty for your model before you order.
Our warranty library· RSHT product information (PDF)· RSHT installation manual (PDF)Ask us before you order
