Skytech Thermostat Fireplace Remote Control, Plug-In Receiver with LCD Display | SKY1420TH-A
Skytech Thermostat Fireplace Remote Control, Plug-In Receiver with LCD Display | SKY1420TH-A

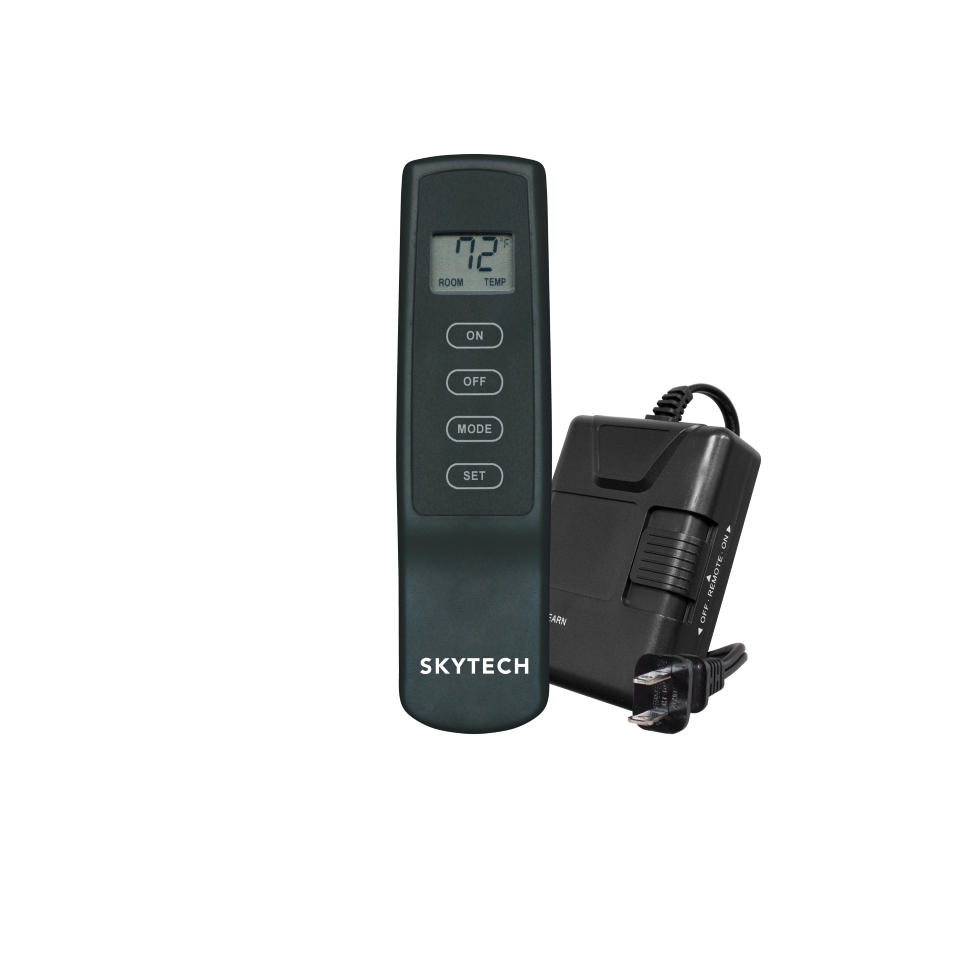

The Skytech SKY1420TH-A is a thermostat fireplace remote with a battery operated LCD transmitter and a 110VAC plug-in receiver. The receiver is a dry contact relay, so no house power passes to the valve wires. It controls a millivolt gas valve, or an electronic module through a 24VAC transformer.
Details
| Model | SKY1420TH-A |
|---|---|
| Type | Thermostat RF remote with plug-in receiver |
| Transmitter | ON/OFF with LCD in degrees F or C, flame and low battery indicators, child safety lockout, 2 x AAA batteries |
| Receiver | Plugs into a standard 110 to 120VAC receptacle; dry contact relay; ON / REMOTE / OFF slide switch |
| Works with | Millivolt gas valves (TH and TP/TH) or an electronic module (TR and TH) with a 24VAC transformer |
| Thermostat | Set from 45 to 99 degrees F; cycles 2 degrees F above or below the setting |
| Range | About 20 feet |
| Security codes | 65,536 |
| Extra transmitters | Receiver learns up to two additional Skytech transmitters |
| In the box | Transmitter, receiver, hardware bag, wall clip, instructions |
| Brand | Skytech |
Questions people ask us
Does the plug-in receiver send 110 volts to my valve?
No. The receiver is a dry contact relay, so no power from the 110 to 120VAC outlet passes to the output wires.
What will it control?
A millivolt gas valve, or an electronic module through a 24VAC transformer. Your fireplace manual decides which remotes it accepts, so send us the model and we will check.
What does the receiver slide switch do?
ON runs the appliance manually, REMOTE hands control to the transmitter, and OFF shuts the receiver off as a safety lockout. Skytech suggests OFF when you will be away for 72 hours or more.
How do I pair the transmitter?
Set the receiver to REMOTE, press and release the LEARN button, then press ON on the transmitter. The receiver beeps several times when it accepts the code. Holding LEARN for 10 seconds clears all stored codes.
Not sure the SKY1420TH-A suits your fireplace?
Send us the fireplace or valve model and we will confirm it before you order. Ask us here.
Goes with this
Manuals and warranty
Warranty terms come from Skytech and depend on the product. Read the manual and the warranty for your model before you order.
Our warranty library· 1420TH-A instructions (PDF)Ask us before you order
