Skytech On/Off Fireplace Remote Control, Plug-In Receiver System | SKY1420-A
Skytech On/Off Fireplace Remote Control, Plug-In Receiver System | SKY1420-A

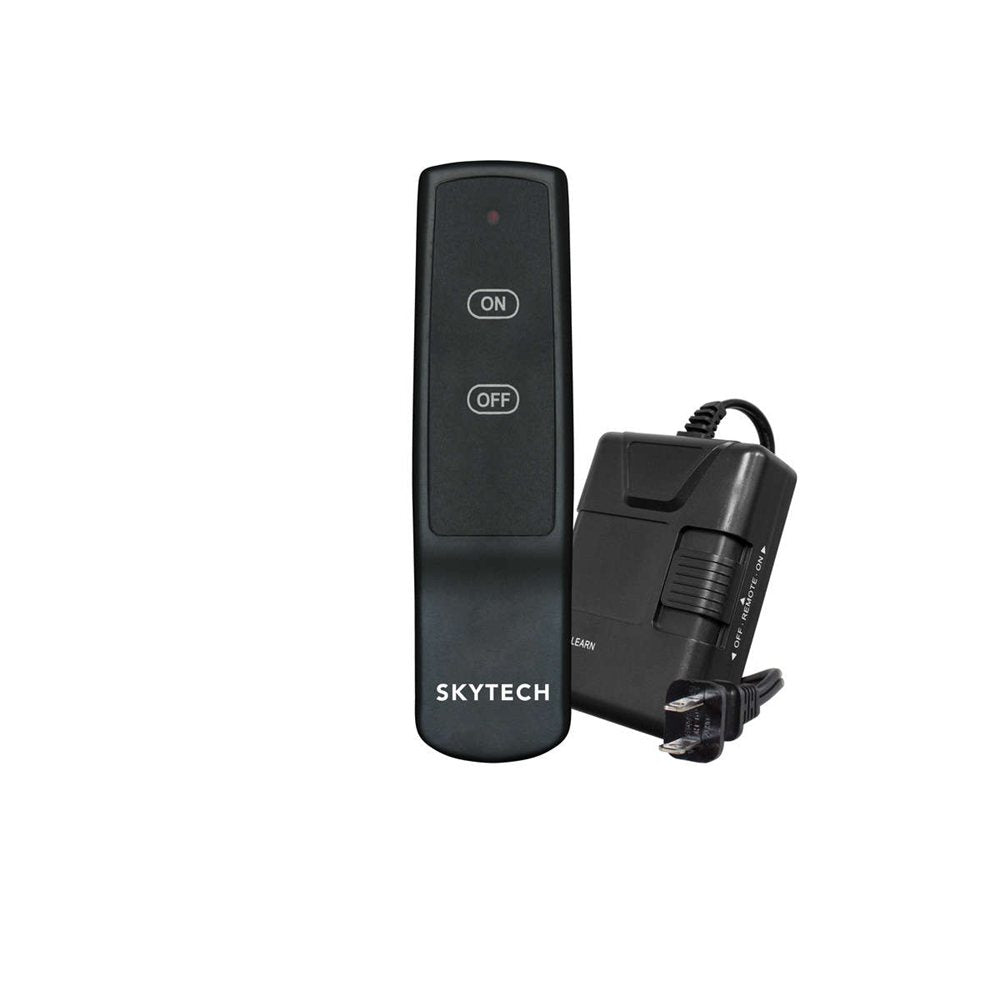

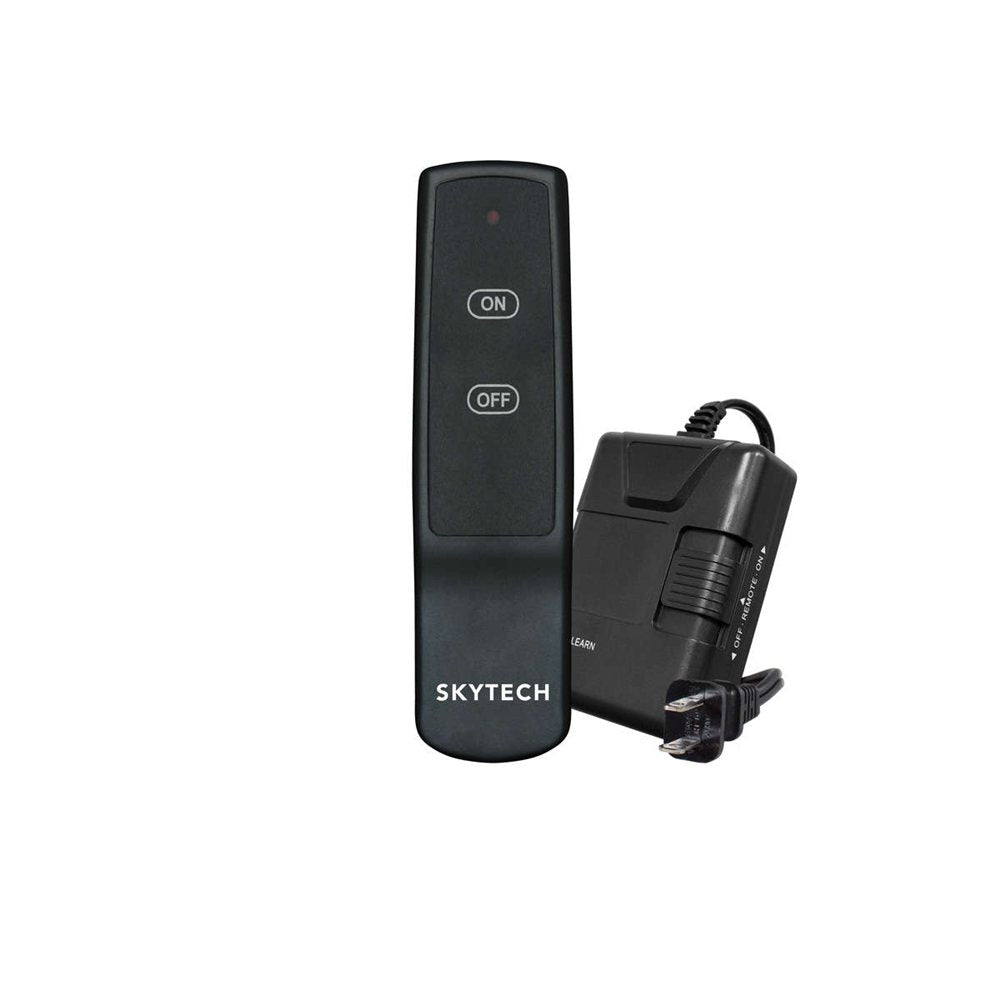

The Skytech 1420-A is an on/off fireplace remote with a battery operated transmitter and a receiver that plugs into a standard 110 to 120VAC outlet. The receiver's dry contact relay switches a millivolt gas valve, or an electronic spark ignition system through a 24VAC transformer. A slide switch on the receiver lets you run the fireplace by hand.
Details
| Model | SKY1420-A |
|---|---|
| Type | On/off RF remote system |
| Transmitter | ON and OFF buttons, LED signal light, one 12V A23 battery (included) |
| Receiver | Plugs into a 110 to 120VAC outlet; dry contact relay; ON / REMOTE / OFF slide switch; LEARN button |
| Works with | Millivolt gas valves; electronic spark ignition through a 24VAC transformer |
| Range | 20 to 25 feet |
| Security codes | 65,536 |
| Extra transmitters | Receiver can learn up to two additional Skytech transmitters |
| In the box | Transmitter, receiver, batteries, hardware bag, wall clip, instructions |
| Brand | Skytech |
Questions people ask us
Will it work with my fireplace?
The 1420-A switches millivolt gas valves, and Skytech shows a hookup for electronic spark ignition through a 24VAC transformer. The receiver needs a standard outlet nearby. Send us the fireplace model and we will check.
What battery does the transmitter use?
One 12V A23 battery, included. Skytech recommends alkaline and expects at least 12 months of use. Replace it when the range drops or it reads below 9.0 volts.
Do I need to pair it?
Yes, on first use, after a battery change, or with a replacement transmitter. Set the receiver switch to REMOTE, press LEARN, wait for the beep, then press a transmitter button.
Not sure the 1420-A suits your fireplace?
Send us the fireplace or valve model and we will confirm it before you order. Ask us here.
Goes with this
Manuals and warranty
Warranty terms come from Skytech and depend on the product. Read the manual and the warranty for your model before you order.
Our warranty library· 1420-A instructions (PDF)Ask us before you order
