Skytech Thermostatic LCD Display Remote System, On/Off/Hi/Low Fireplace Control | MRCK-TH
Skytech Thermostatic LCD Display Remote System, On/Off/Hi/Low Fireplace Control | MRCK-TH

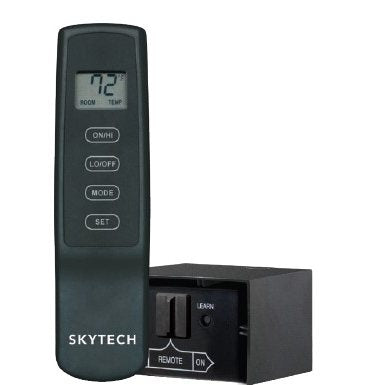

The Skytech MRCK-TH is a 6 volt thermostatic remote system for HI/LO servo motor gas valves, with an LCD transmitter and a battery operated receiver. It turns the fireplace on and off, steps the flame between high and low, and can hold a set room temperature. Skytech describes it for 6VDC servo motor or solenoid controls on heater rated gas logs, gas fireplaces and other gas heating appliances.
Details
| Model | MRCK-TH |
|---|---|
| Type | 6 volt thermostatic remote system |
| Works with | 6VDC servo motor or solenoid gas valve controls with on/off and HI/LO |
| Transmitter | LCD in degrees F or C, flame and low battery indicators, child safety lockout |
| Receiver | Four AA alkaline batteries, up to 6VDC at the terminals, ON / REMOTE / OFF slide switch |
| Thermostat | Set from 45 to 99 degrees F; factory swing 2 degrees F |
| Valve wiring | 18 gauge stranded black and red leads to the valve's 1/4" and 3/16" terminals |
| Range | About 20 feet |
| In the box | Transmitter, receiver, receiver shield, batteries, hardware bag, wall clip, instructions |
| Brand | Skytech |
Questions people ask us
Will it work with my valve?
It is made for valves with a 6VDC HI/LO servo motor or solenoid that support on/off and high/low flame control. Send us the fireplace or valve model and we will check.
What if HI and LO work backward?
Skytech says to reverse the two wires at the receiver or at the valve control so the buttons match the flame.
How does the thermostat work?
Set a temperature between 45 and 99 degrees F. The transmitter reads the room every two minutes and cycles the fireplace about 2 degrees either side of your setting, which usually means 2 to 4 cycles an hour.
How do I turn on the child lockout?
Press ON/HI and MODE together for 5 seconds. Do the same to turn it off.
Not sure the MRCK-TH suits your fireplace?
Send us the fireplace or valve model and we will confirm it before you order. Ask us here.
Goes with this
Manuals and warranty
Warranty terms come from Skytech and depend on the product. Read the manual and the warranty for your model before you order.
Our warranty libraryยท MRCK-TH instructions (PDF)Ask us before you order
