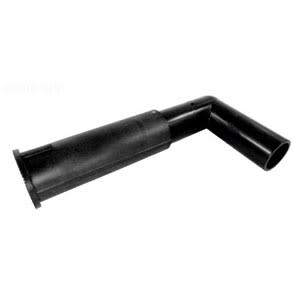

Hayward SX310CD2FW Sand Filter Bottom Internal Elbow Assembly - For S310SX

What This Part Is Used For
The Hayward SX310CD2FW is a bottom internal elbow assembly used inside the Hayward S310SX sand filter as listed. It is part of the internal plumbing that directs water flow within the filter tank near the bottom distribution area. This component is accessed during internal service and sand changes.

Why This Part Matters
If internal elbows crack or loosen, the filter may not route water correctly through the sand bed. That can cause poor filtration, ineffective backwashing, and persistent cloudiness even with proper chemistry. Replacing the correct S310SX elbow restores internal flow routing and helps the filter perform normally. This is often handled while the filter is opened for a sand replacement or major leak repair.

Key Features and Specifications

• Manufacturer part number: SX310CD2FW
• Sand filter bottom internal elbow assembly
• Specified for Hayward S310SX sand filter
• Installs inside the filter tank at the bottom internal plumbing area
• Service replacement part for internal filter rebuilds

Installation and Fitment Guidance
Shut off the system and relieve pressure before opening the filter tank. Inspect all internal components and seals while the filter is apart to avoid repeat breakdowns. Confirm by manufacturer part number before ordering.

About the Hayward Brand
Hayward manufactures a complete ecosystem of residential pool equipment including pumps, filters, heaters, automation, cleaners, chlorination products, and service parts. Their sand filters integrate with Hayward valves and circulation equipment for predictable filtration results. This compatibility makes internal repairs more straightforward when using the correct parts. Hayward replacement components are widely supported across the pool industry.

Common Service Context
Techs typically replace bottom internal elbows during sand changes or after discovering damaged internals from freezing or age. It is often recognized when the filter is opened and internal plumbing shows cracks or the pool returns debris after backwashing.
