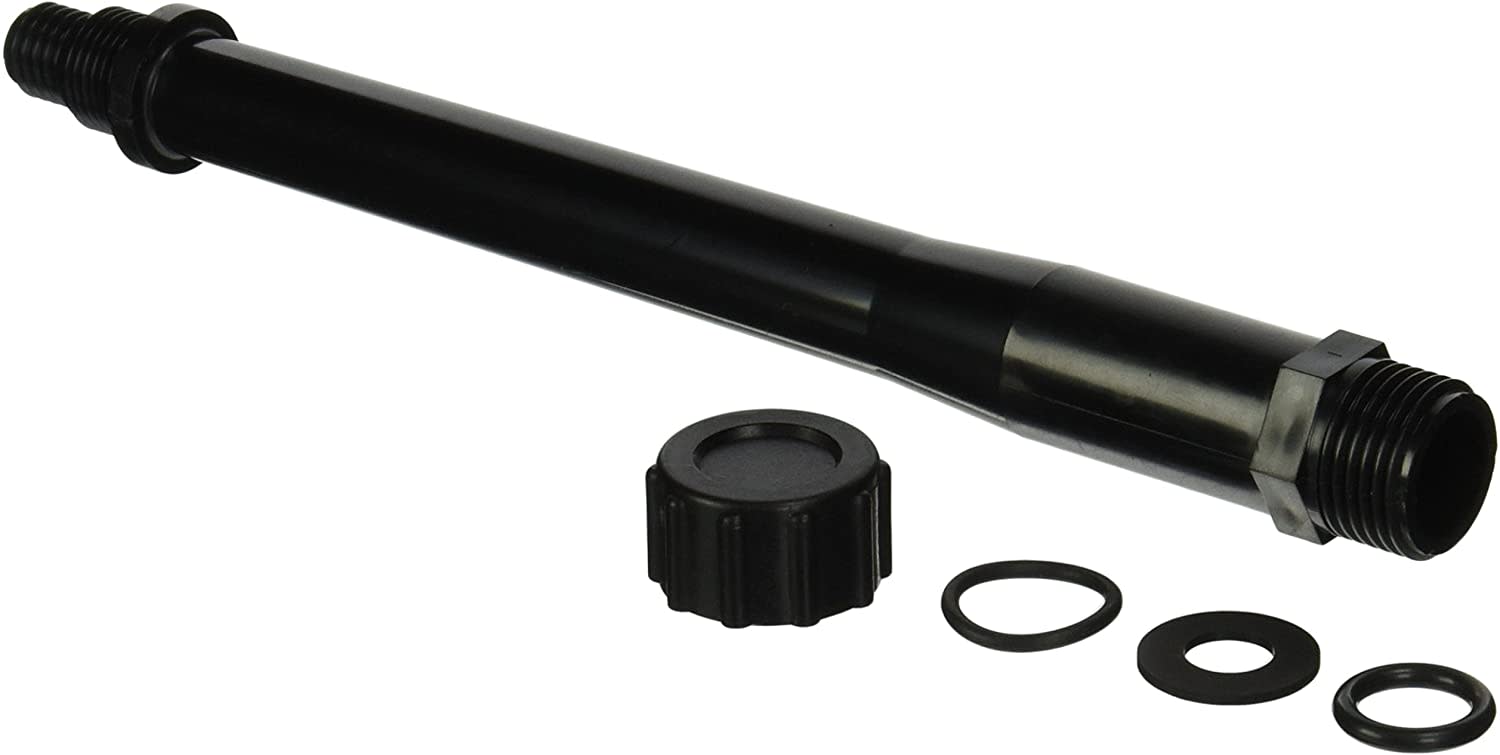

Hayward SX200EB Drain Pipe Assembly - For S200T

What This Part Is Used For
The Hayward SX200EB is a drain pipe assembly specified for the Hayward S200T sand filter. It routes water out of the filter during draining for winterizing, sand changes, and service. This assembly is located at the lower drain area of the filter tank.

Why This Part Matters
If the drain pipe assembly is cracked or leaking, the filter may drip continuously or drain poorly during service. Drain problems slow down winterizing and can leave water trapped in the tank, which increases freeze risk. Replacing the correct assembly restores controlled draining and helps keep the equipment pad dry. It is commonly serviced when drain threads are damaged or components have been overtightened.

Key Features and Specifications

• Manufacturer part number: SX200EB
• Drain pipe assembly for Hayward S200T sand filter
• Installs at the filter drain area near the base of the tank
• Used for controlled draining during winterizing and maintenance
• Replacement part for leaking or damaged drain plumbing components

Installation and Fitment Guidance
Turn off the pump and relieve all pressure before servicing the drain assembly. Make sure seals are seated and components are tightened evenly to avoid leaks at the drain port. Confirm by manufacturer part number before ordering.

About the Hayward Brand
Hayward produces a complete pool equipment ecosystem including pumps, filters, heaters, automation, cleaners, chlorination systems, and service parts. Their sand filters are widely installed and supported with serviceable drain and seal components to keep maintenance predictable. This compatibility helps technicians complete winterizing and spring startup work efficiently. Hayward replacement parts are widely supported across the pool industry.

Common Service Context
Techs typically replace drain pipe assemblies when a filter drips from the drain area or when draining becomes unreliable during winterizing. It is often identified after a drain cap has been removed repeatedly and the assembly no longer seals properly.
