Hayward Sand Filter Head, Taupe, for S200T | SX200BT
Hayward Sand Filter Head, Taupe, for S200T | SX200BT
The Hayward SX200BT upper filter head has been discontinued and is no longer available through normal Hayward distribution. Hayward does not offer a complete S200 tank assembly that directly replaces this upper section.

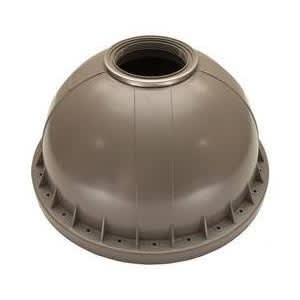

Hayward SX200BT Filter Head for S200 and S200T Sand Filters
The Hayward SX200BT was the taupe-colored upper filter head used on compatible Hayward S200-series high-rate sand filters. It formed the upper portion of the filter tank, sealed against the lower tank section and provided access to the internal filtration components.
What This Part Was Used For
The SX200BT served as the upper structural section of compatible Hayward S200 and S200T sand-filter assemblies. It was designed to contain water under filtration pressure and seal securely to the lower tank.
- Upper filter-head and tank section
- Taupe factory color
- Used on compatible Hayward S200-series filters
- Designed for the original split-tank filter configuration
Why Replacement May Be Necessary
Cracking, warping, freeze damage or deterioration around the sealing surface can cause the filter to leak or prevent the tank from holding pressure correctly. Because this is a pressure-containing component, a damaged filter head should not be repaired with adhesives or improvised patches.
Product Identification
This listing is retained as a discontinued-part reference to help pool owners and service professionals identify the original component and evaluate the correct replacement path.
Replace the Complete Filter with a Hayward S244S
Because the SX200BT upper filter head is discontinued and there is no complete S200 tank assembly that replaces it, the most practical current option is to replace the aging filter with a complete Hayward S244S ProSeries 24-inch side-mount sand filter.
The S244S is a current Hayward side-mount filter with a 24-inch corrosion-resistant tank, self-cleaning lateral system and included 1-1/2-inch VariFlo control valve. It is a complete replacement filter, not an individual tank section.
View the Hayward S244S Replacement FilterReplacement Options for a Damaged SX200BT
The Hayward S244S is the preferred complete-filter replacement for many older S200 installations. It provides a modern 24-inch side-mount configuration and currently supported replacement parts.
It is not a direct upper-tank swap. The entire existing S200 filter is removed and replaced.
A different current filter may be appropriate when the pool's size, pump flow rate, plumbing diameter or equipment-pad space does not suit the S244S. The replacement filter should be selected according to the pool volume and actual system flow requirements.
Some independent sellers may occasionally have remaining original inventory. Any new-old-stock part should be carefully inspected for storage damage, cracking and deterioration before installation. Availability is limited and cannot be guaranteed.
Before Replacing the Filter
- Confirm that the existing filter is a Hayward S200 or S200T-series model.
- Measure the available height and width on the equipment pad.
- Confirm the existing plumbing diameter and connection locations.
- Verify the pump's flow rate and the pool's filtration requirements.
- Plan for new filter sand or approved alternative filter media.
- Have the plumbing modifications completed by a qualified pool professional when needed.
Frequently Asked Questions
Is the Hayward SX200BT discontinued?
Yes. The Hayward SX200BT upper filter head has been discontinued and is no longer available through normal Hayward distribution.
Does Hayward offer a complete S200 tank assembly?
No complete current tank assembly has been identified as a direct replacement for both sections of the original split-tank S200 filter. The lower tank section alone does not replace a damaged SX200BT upper filter head.
What is the recommended replacement for the SX200BT?
The most practical replacement path is usually a complete current sand filter, such as the Hayward S244S 24-inch side-mount filter, subject to confirming pool size, system flow and installation space.
Will the S244S install without plumbing changes?
Not necessarily. The S244S replaces the complete filter rather than only the upper tank section. Plumbing adjustment may be required because the valve and connection locations may differ from the original S200 setup.
Can a cracked SX200BT filter head be patched?
A damaged pressure-containing filter head should not be repaired with glue, epoxy or an improvised patch. Sand filters operate under pressure, and a structurally damaged tank component should be replaced.
Can the existing sand be reused in the new filter?
Reusing old filter sand is generally not recommended when replacing the complete filter. Use the quantity and grade of filter media specified for the new filter model.
How much sand does the Hayward S244S require?
The Hayward S244S is commonly specified for approximately 300 pounds of properly graded pool-filter sand. Always verify the current installation manual before filling the filter.
