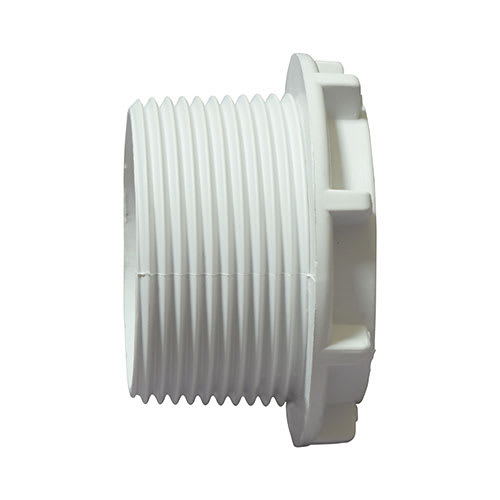

Hayward AX5004L1 Universal Wall Fitting

What This Part Is Used For
The Hayward AX5004L1 Universal Wall Fitting connects a pressure-side cleaner hose to the dedicated return line in the pool wall. It provides a secure interface between plumbing and cleaner hose assembly.

Why This Part Matters
A loose or damaged wall fitting can cause pressure loss and poor cleaner performance. Replacing it ensures a tight connection and consistent water flow. It also helps prevent leaks at the pool wall connection point.

Key Features and Specifications

• Manufacturer part number AX5004L1
• Universal wall fitting
• For pressure-side cleaner installations
• Connects cleaner hose to pool return line
• Replacement wall interface component

Installation and Fitment Guidance
Turn off the pump before servicing the wall fitting. Inspect the return line and fitting threads during replacement. Confirm by manufacturer part number before ordering.

About the Hayward Brand
Hayward produces a full range of pool plumbing and cleaner connection components. Their fittings are commonly used in both new installs and retrofits. Service professionals rely on accurate fit and compatibility.

Common Service Context
Frequently replaced when a cleaner loses pressure at the wall or during cleaner upgrades. Also seen when winterizing damage has occurred at the return fitting.
