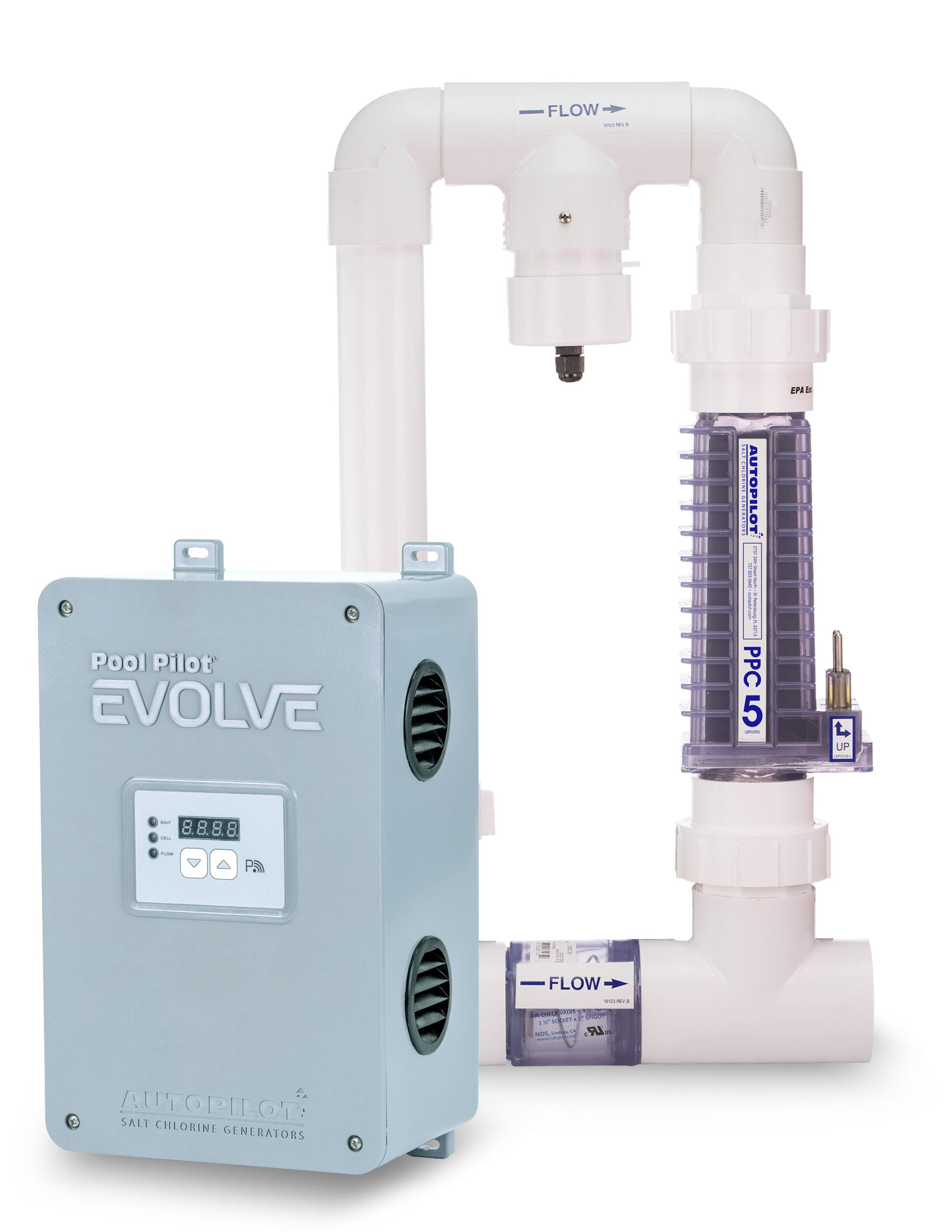

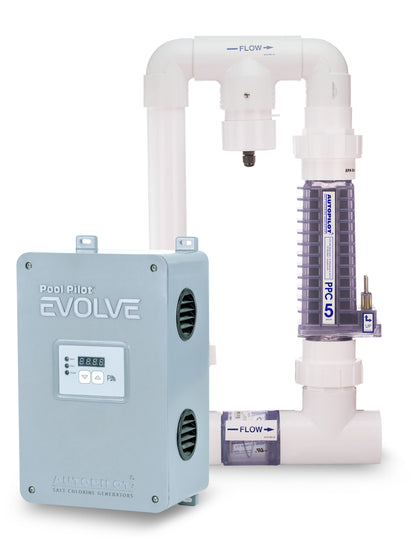

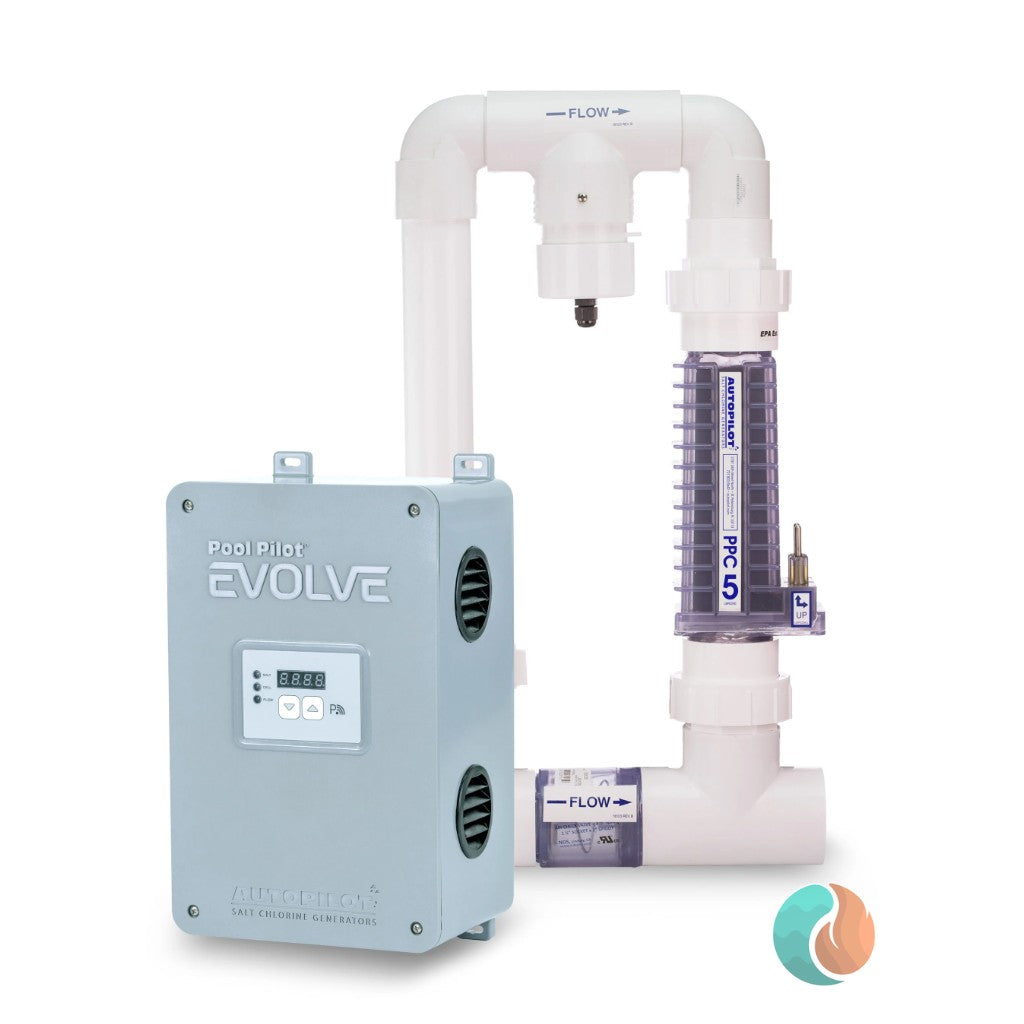

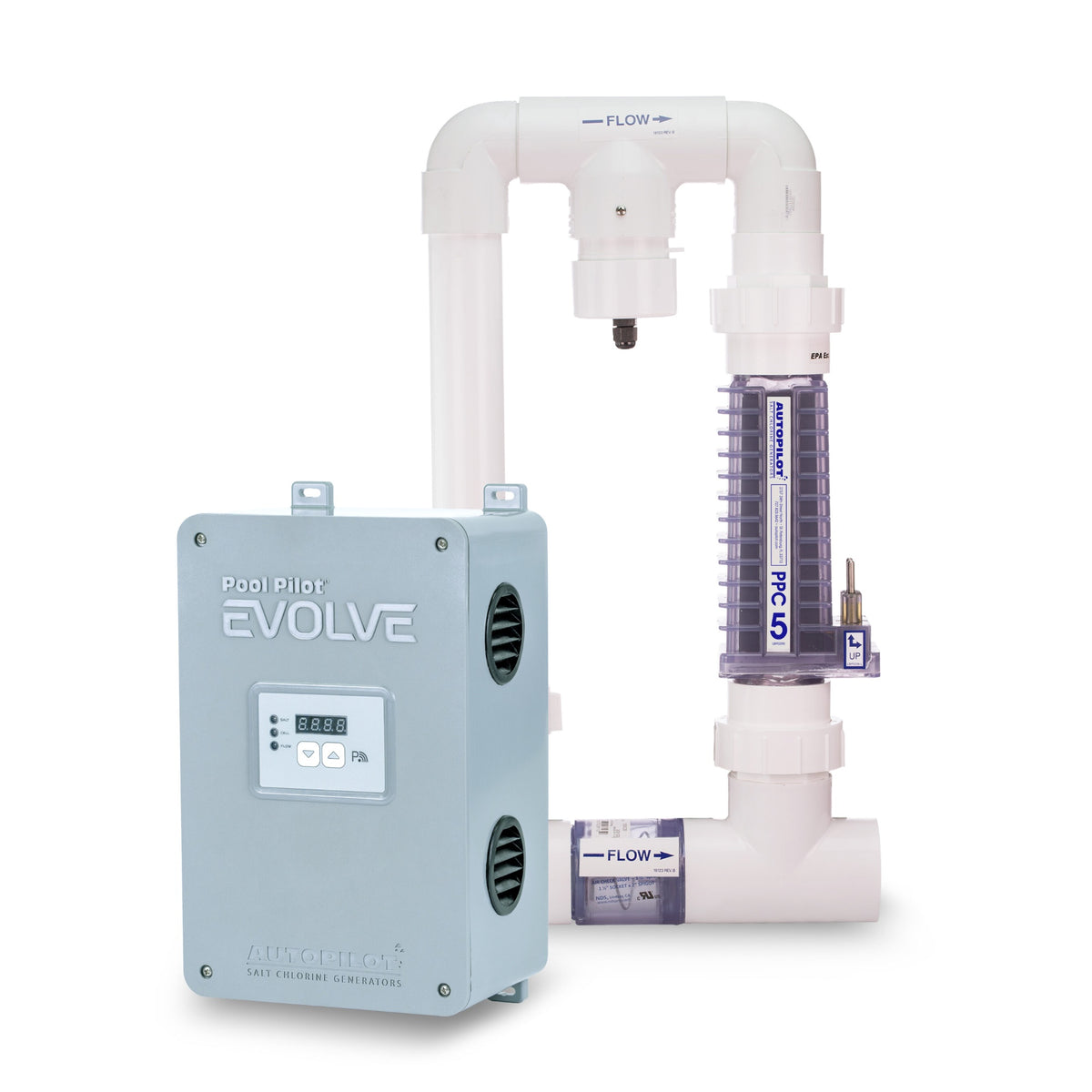

CPB0009A AutoPilot Pool Pilot Evolve Salt System with PPM5 Manifold
AutoPilot’s Most Powerful Salt Chlorine Generator
The CPB0009A AutoPilot Pool Pilot Evolve with PPM5 Manifold is the largest system in the Pool Pilot Evolve lineup, designed for residential pools up to 70,000 gallons. Built for larger pools, high chlorine demand, heavy sun exposure, and demanding swimming seasons, this system combines AutoPilot’s advanced Evolve power center with the high-output PPM5 manifold and PPC5 salt cell.
If you want a premium salt chlorine generator that does more than basic chlorine production, the Pool Pilot Evolve gives you intelligent monitoring, temperature compensation, boost mode, and optional PoolSync Wi-Fi control. It is engineered to help maintain clean, clear, comfortable pool water with less manual chlorine handling.
ATB Sizing Note
The CPB0009A is the largest Pool Pilot Evolve model and is designed for pools up to 70,000 gallons. For real-world performance, pool size is only part of the equation. Sun exposure, bather load, water temperature, stabilizer level, phosphates, and pump run time all affect chlorine demand. When in doubt, sizing up is usually the smarter move for salt systems.
Why Choose the AutoPilot CPB0009A Pool Pilot Evolve?
- Largest Pool Pilot Evolve system for pools up to 70,000 gallons

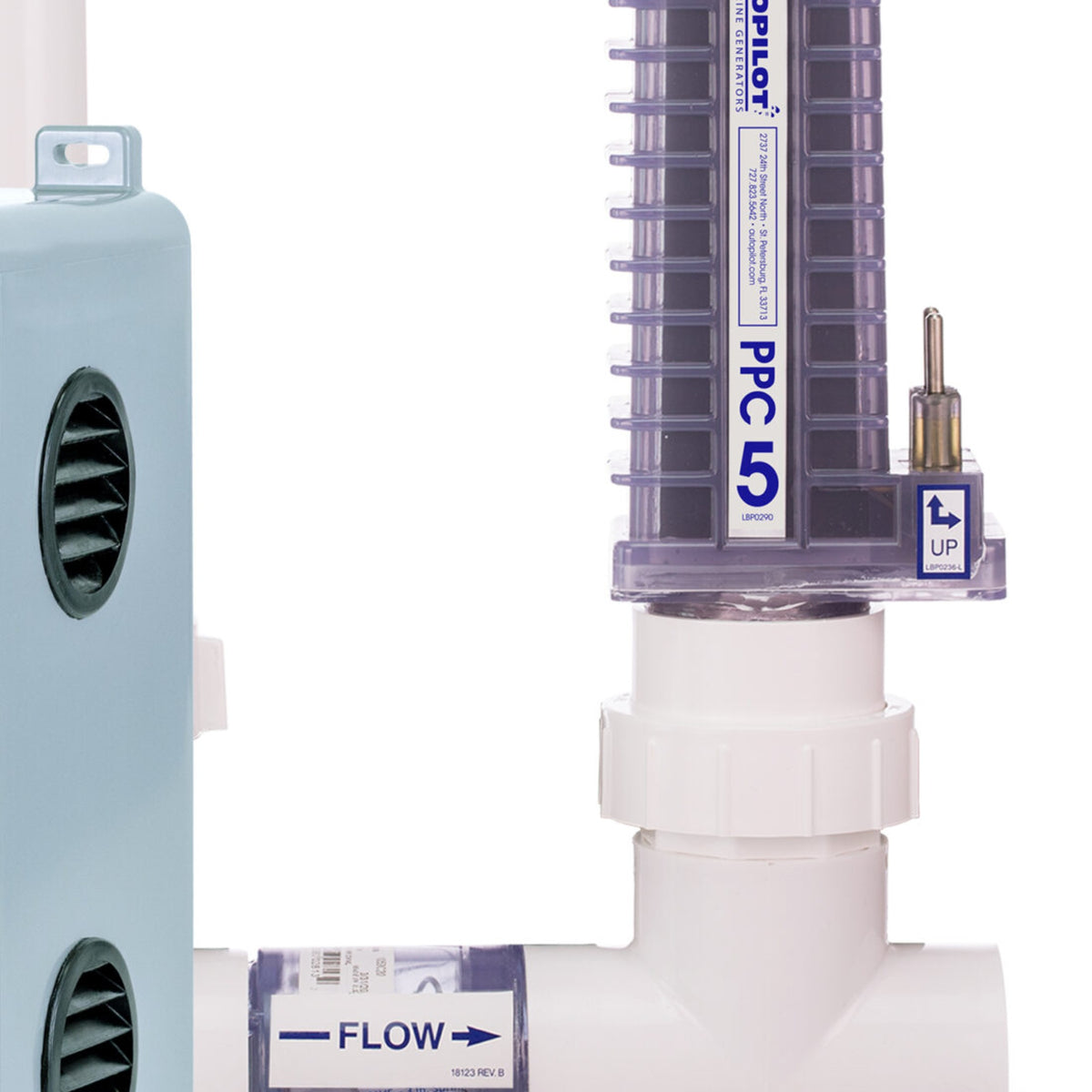

- Includes PPM5 manifold and PPC5 salt cell for maximum Evolve output
- Produces up to 2.1 lbs of chlorine per day under proper operating conditions

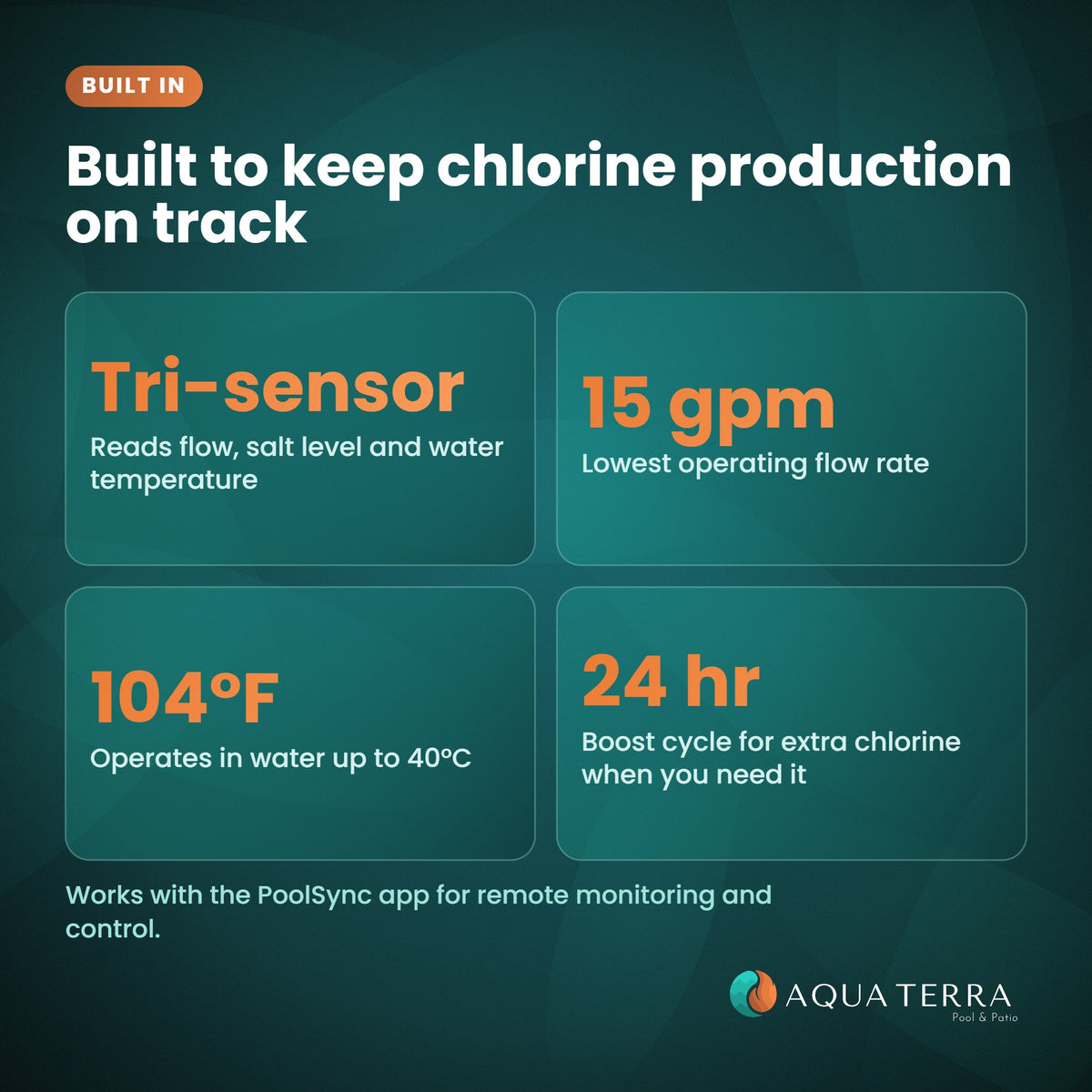

- Advanced tri-sensor monitoring measures water flow, salt level, and temperature
- Patented temperature compensation helps manage chlorine output as water conditions change
- 24-hour boost cycle for higher chlorine demand after parties, storms, or heavy pool use
- PoolSync compatible for app-based monitoring and control with optional PoolSync Wi-Fi module
- Designed for simple service with AutoPilot’s proven manifold and cell architecture

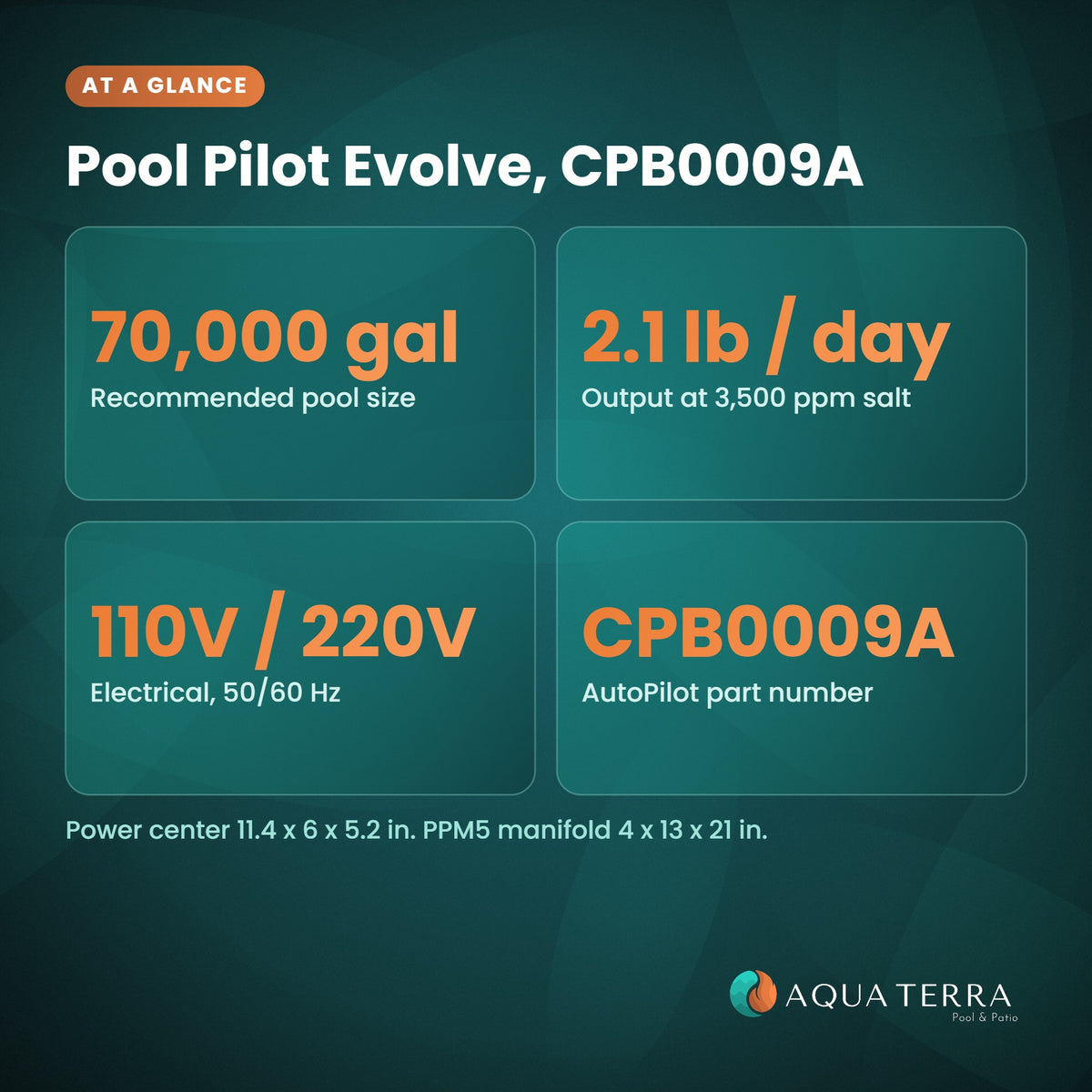

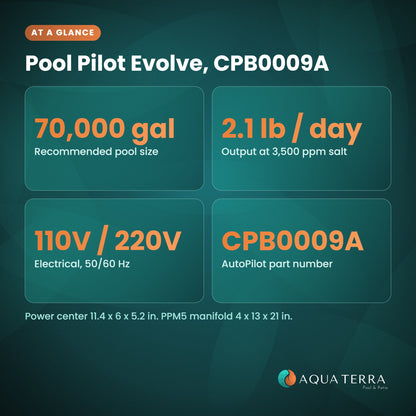

Product Details
| Brand | AutoPilot |
| Manufacturer Part Number | CPB0009A |
| System | Pool Pilot Evolve Salt Chlorine Generator |
| Manifold | PPM5 Manifold |
| Cell Family | PPC5 Salt Cell |
| Pool Capacity | Up to 70,000 gallons |

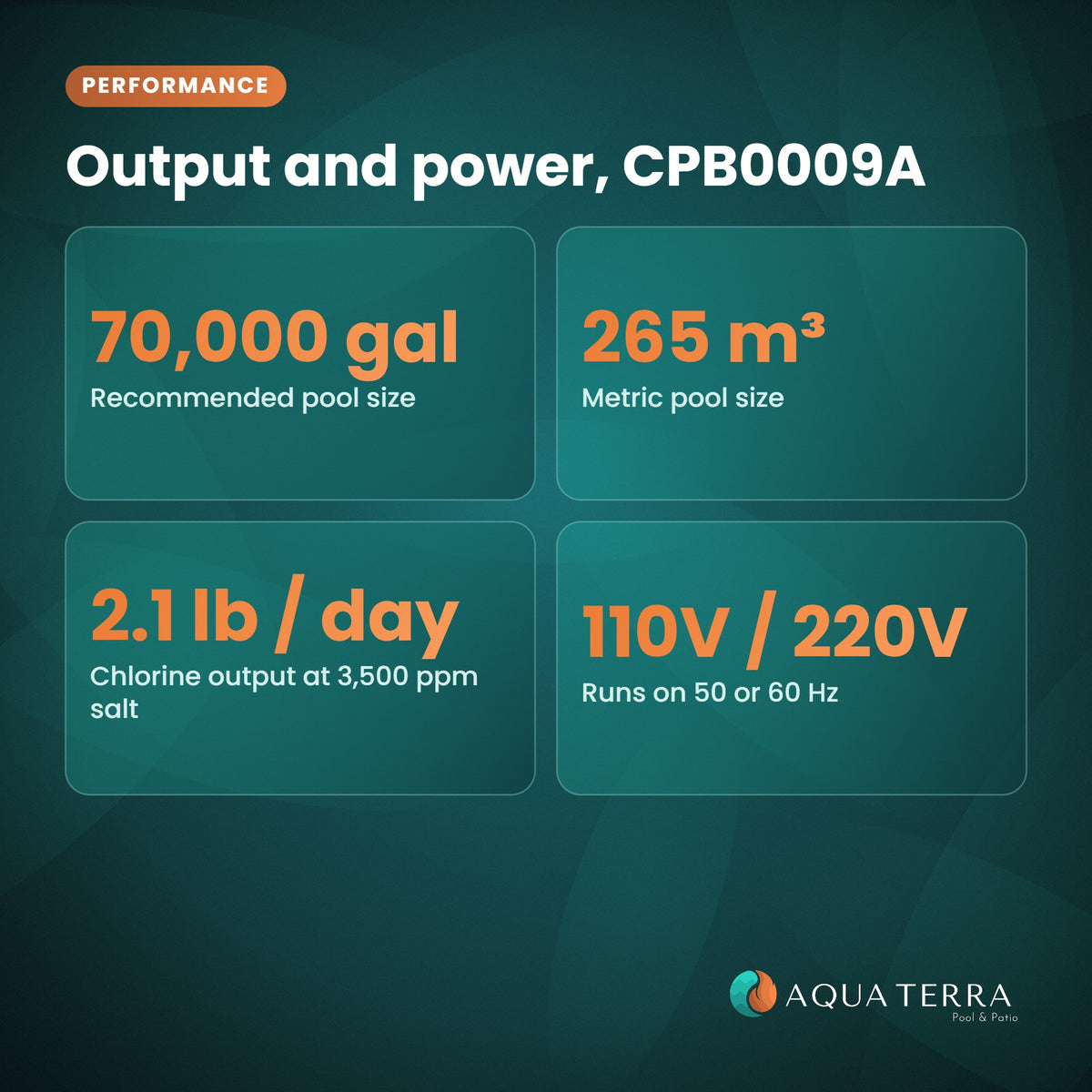

| Chlorine Output | Up to 2.1 lbs per day |

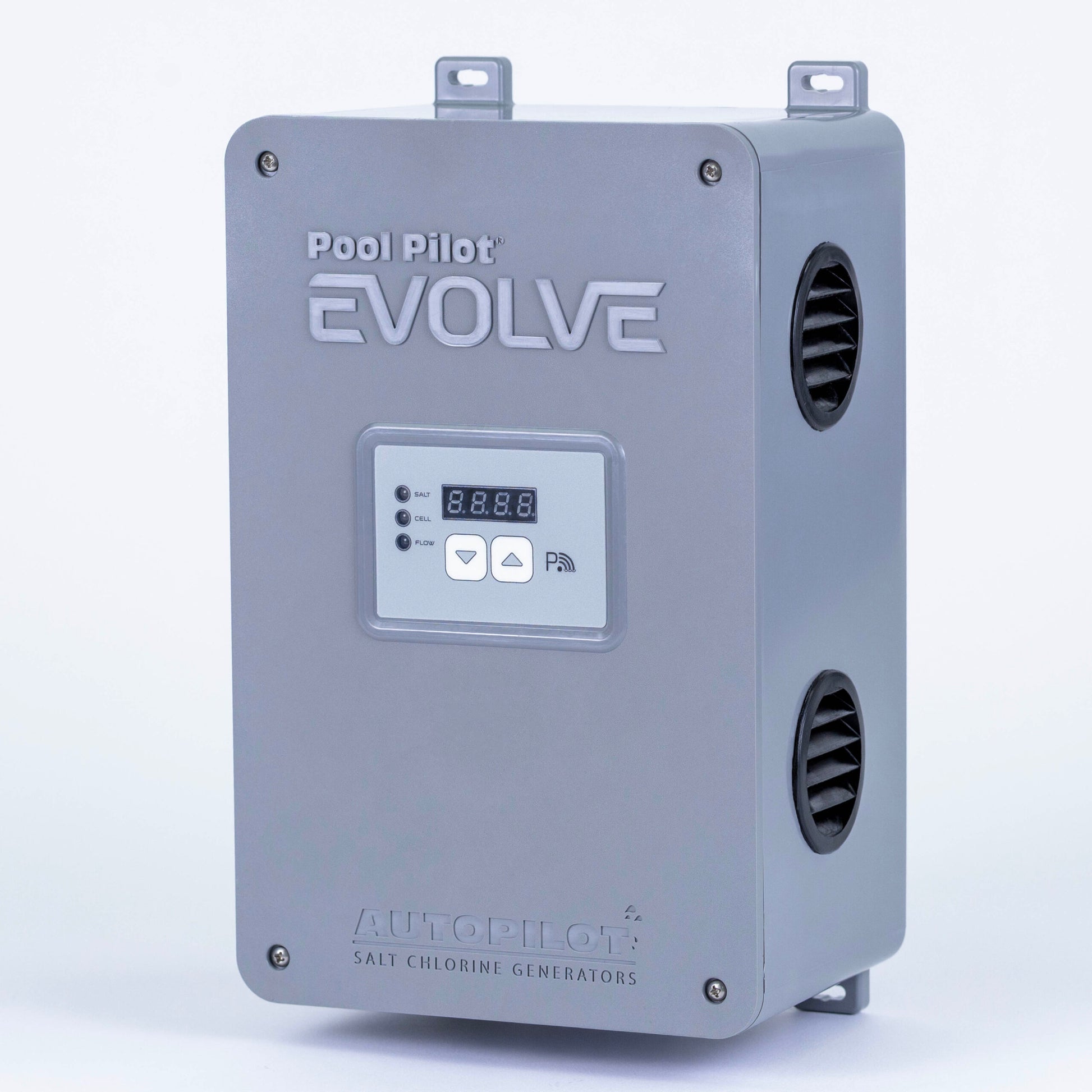

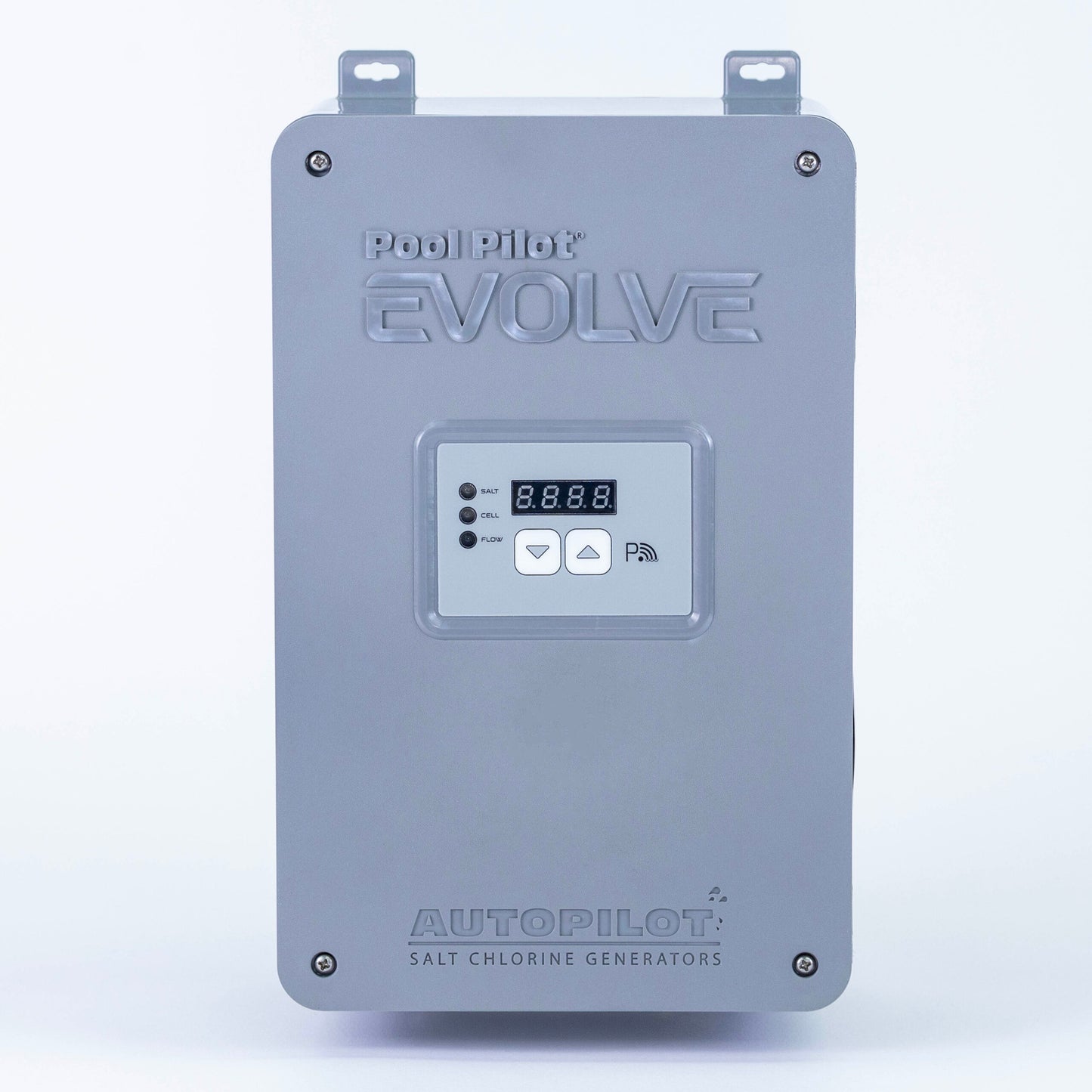

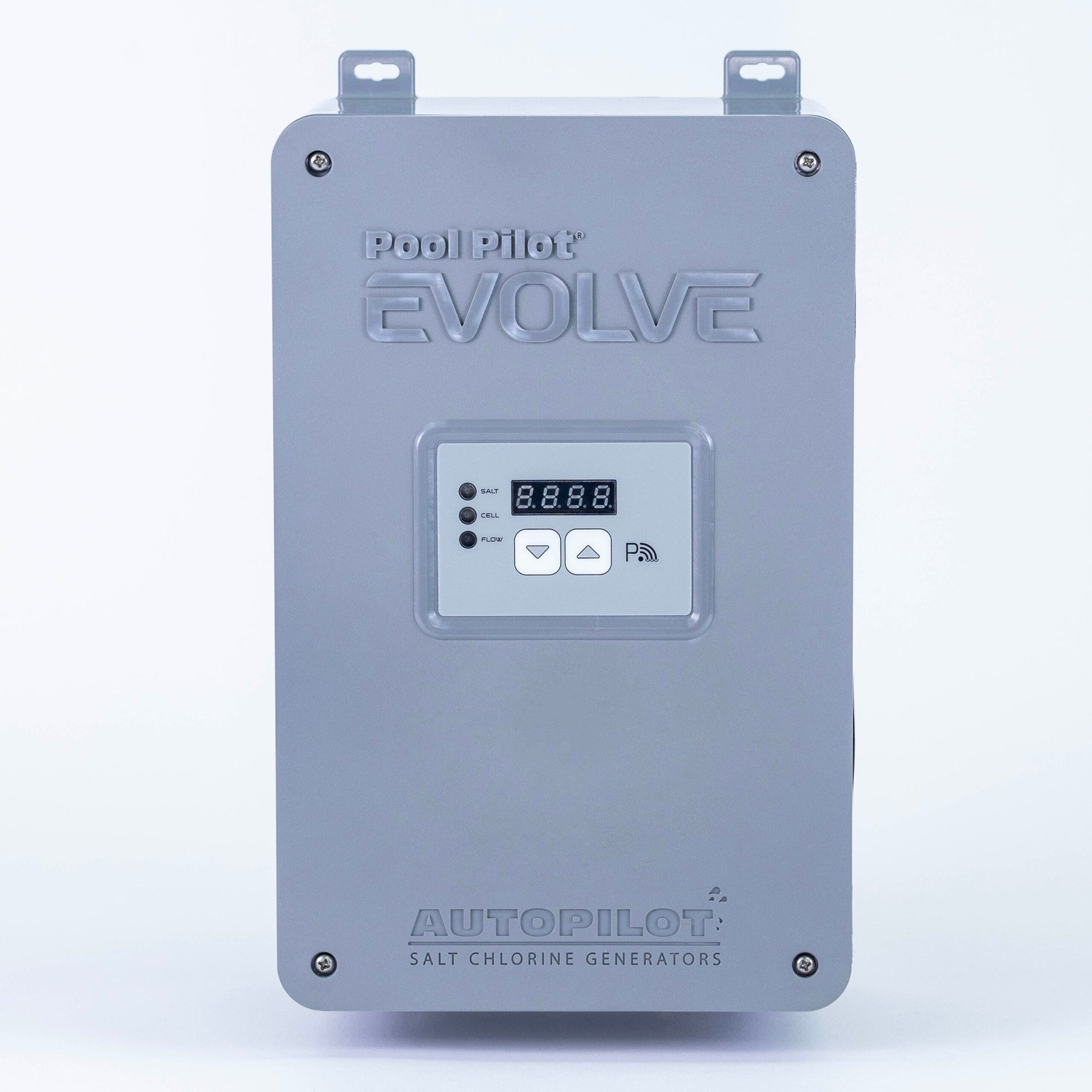

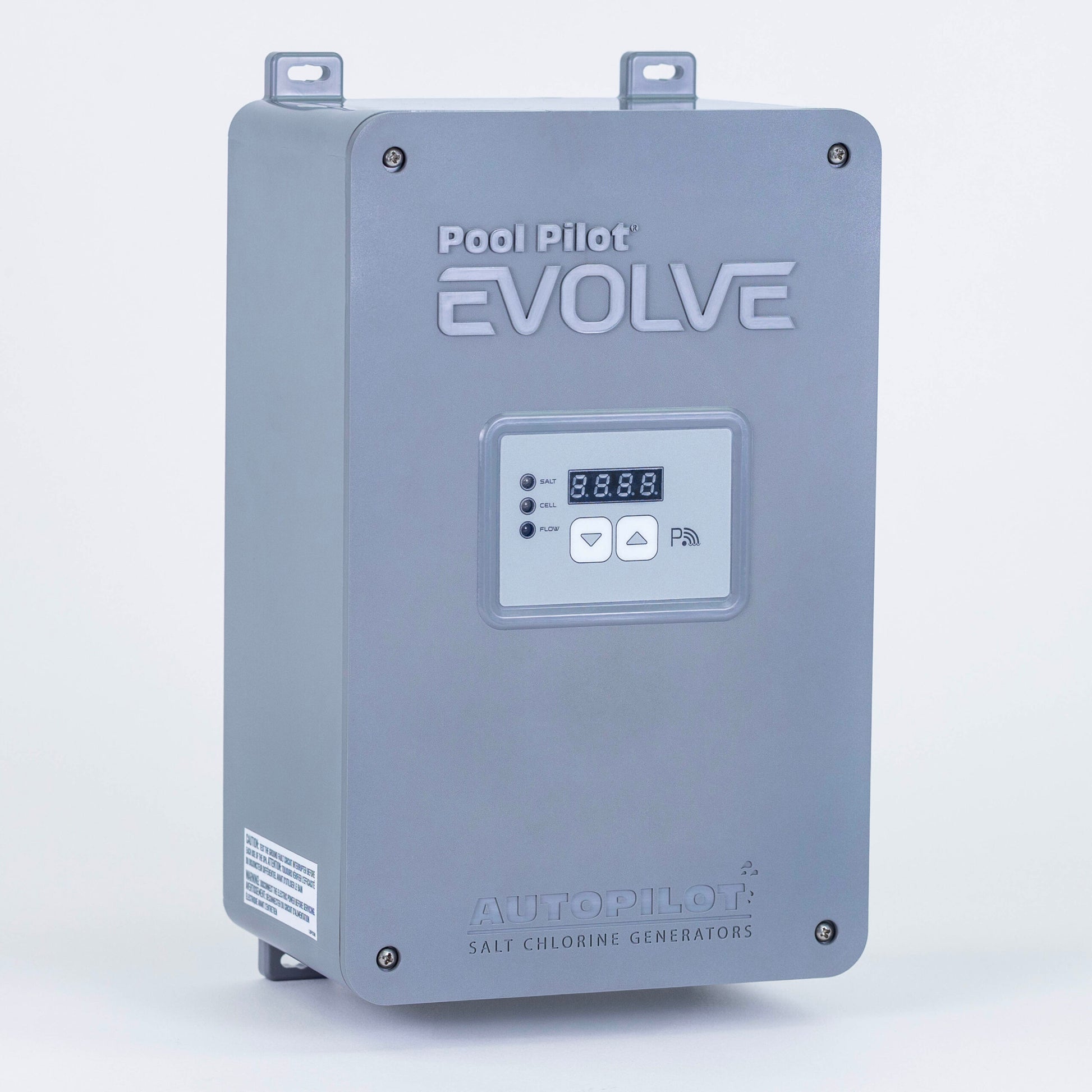

| Power Center | Pool Pilot Evolve Controller |
| Smart Features | Advanced diagnostics, temperature compensation, boost mode, optional PoolSync Wi-Fi |
What Comes With the CPB0009A?
The CPB0009A is a complete Pool Pilot Evolve salt system package with the high-output PPM5 manifold setup. It is designed for pool owners who need the largest Evolve system rather than a smaller under-sized chlorinator.
How the Pool Pilot Evolve Works
The AutoPilot Pool Pilot Evolve converts dissolved salt in the pool water into chlorine. The system continuously sanitizes the pool while reducing the need to manually add chlorine tablets or liquid chlorine. When installed with the PPM5 manifold, the Evolve system monitors key operating conditions and helps maintain consistent chlorine production.
The integrated sensor setup monitors flow, salt level, and water temperature. This allows the power center to make smarter chlorine production decisions and helps the owner or service professional troubleshoot issues faster.
ATB Real-World Chlorine Demand Checklist
Even a properly sized salt system needs balanced water and enough pump run time. For best performance, check:
- Salt level confirmed with a reliable test meter
- Stabilizer/CYA in the proper range for salt pools
- Phosphate level under control
- Proper pump run schedule for the pool size
- Clean filter and proper water flow through the manifold
- Correct output percentage for the season and pool demand

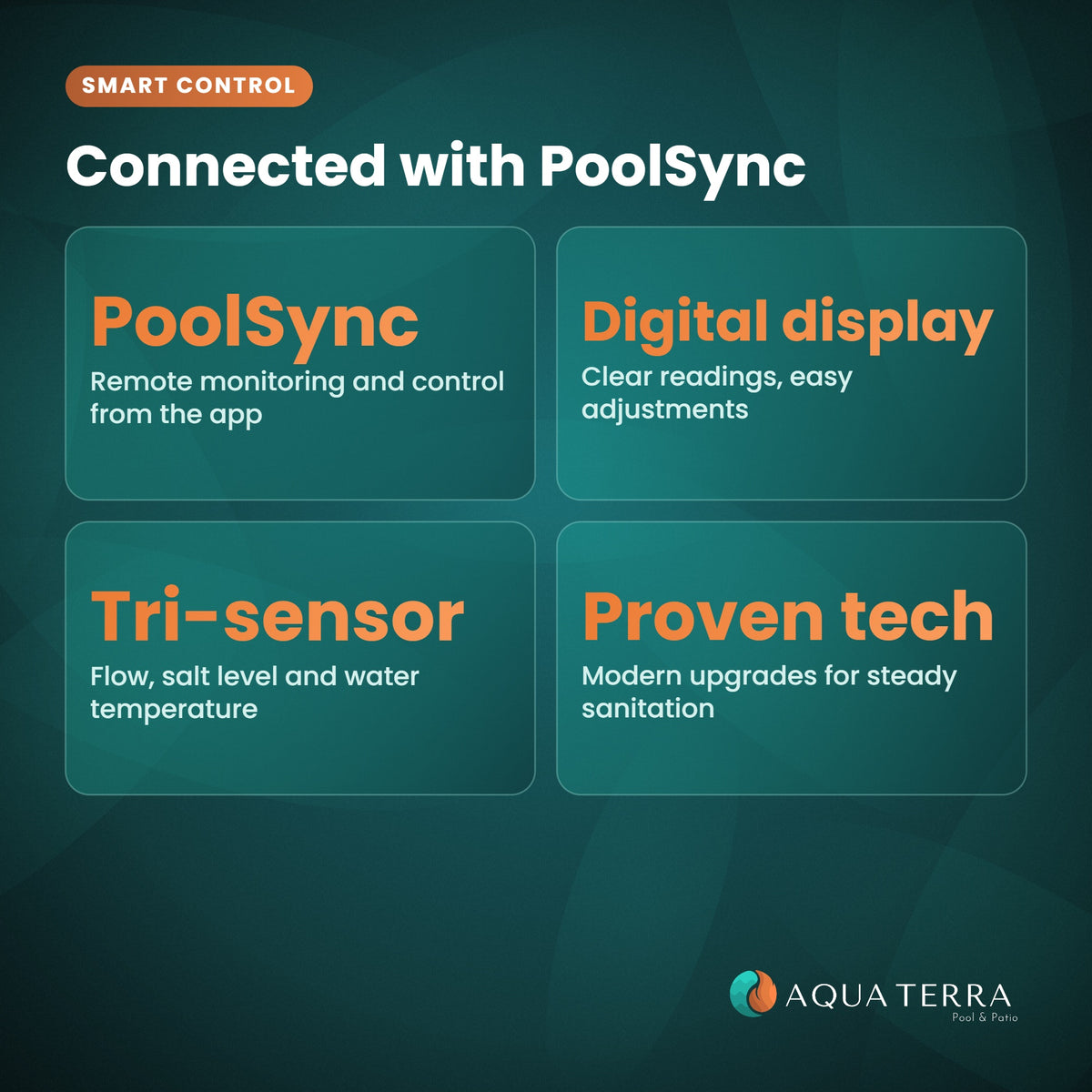

PoolSync Wi-Fi Compatibility
The Pool Pilot Evolve platform is compatible with AutoPilot PoolSync when paired with the optional PoolSync Wi-Fi controller, sold separately. PoolSync allows app-based access for monitoring, alerts, and system adjustments from a compatible mobile device.
With PoolSync, pool owners can get better visibility into system operation, receive alerts when attention is needed, and make chlorine output adjustments without standing at the equipment pad.
When Should You Choose the CPB0009A?
- You have a large residential pool up to 70,000 gallons
- Your pool has heavy sun exposure or high chlorine demand
- You want the largest AutoPilot Pool Pilot Evolve system available
- You prefer a salt system with advanced diagnostics and sensor monitoring
- You want a system that can be paired with PoolSync Wi-Fi control
- You are replacing or upgrading an older AutoPilot salt chlorine generator system
CPB0009A vs Smaller Evolve Models
The CPB0009A is the largest Pool Pilot Evolve package. Smaller Evolve models are available for smaller pools, but the CPB0009A is the right choice when the pool volume or chlorine demand calls for maximum output.
| Model | Manifold | Best For |
| CPB0006A | PPM1 | Smaller residential pools |
| CPB0007A | PPM3 | Mid-size residential pools |
| CPB0008A | PPM4 | Larger residential pools |
| CPB0009A | PPM5 | Largest pools and highest chlorine demand |
ATB Expert Tip
Salt systems should not be sized only by the absolute gallon rating. A 60,000 gallon pool in full sun with heavy use can demand more chlorine than expected. The CPB0009A gives you the largest Evolve output, which can reduce the need to run the system at maximum output all season.
Installation Notes
The AutoPilot CPB0009A should be installed by a qualified pool professional or electrician familiar with salt chlorine generator systems. The power center must be wired correctly, the manifold must be installed in the proper plumbing orientation, and water flow must be verified before operation.
Before installation, confirm that the pool water is balanced, salt has been added to the correct range, and the pump/filter system is operating properly. A salt chlorine generator cannot overcome poor water balance, heavy algae, high phosphates, or inadequate circulation.
Frequently Asked Questions
What is the AutoPilot CPB0009A?
The CPB0009A is the AutoPilot Pool Pilot Evolve salt chlorine generator system with the PPM5 manifold and PPC5 cell. It is designed for large residential pools up to 70,000 gallons.
What size pool does the CPB0009A support?
The CPB0009A is rated for pools up to 70,000 gallons under proper operating conditions. Actual performance depends on water chemistry, sun exposure, bather load, pump run time, and overall chlorine demand.
Does the CPB0009A include the manifold and cell?
Yes. The CPB0009A package includes the Pool Pilot Evolve power center and the PPM5 manifold with the matching PPC5 cell configuration.
Does this system work with PoolSync?
Yes. The Pool Pilot Evolve is PoolSync compatible when paired with the optional PoolSync Wi-Fi controller, sold separately.
What makes the PPM5 model different?
The PPM5 version is the largest Evolve configuration. It is paired with the PPC5 cell and is designed for the highest pool capacity and chlorine output in the Evolve lineup.
Can this replace an older AutoPilot salt system?
In many cases, the Pool Pilot Evolve can be used as an upgrade path from older AutoPilot systems. Existing plumbing, cell type, manifold layout, wiring, and equipment condition should be reviewed before ordering.
Do I still need to test my pool water with a salt system?
Yes. Salt systems make chlorine, but they do not replace regular water testing. Salt, pH, alkalinity, stabilizer, phosphates, calcium hardness, and chlorine should still be checked routinely.
Order CPB0009A from Aqua Terra Backyard
At Aqua Terra Backyard, we help pool owners and service professionals choose the right salt system before the order ships. The AutoPilot CPB0009A Pool Pilot Evolve with PPM5 Manifold is the strongest option in the Evolve lineup, built for large pools, high chlorine demand, and customers who want advanced diagnostics with reliable salt chlorine production.
Need help confirming the right size? Send us your pool gallon size, current equipment setup, pump run schedule, and whether you are replacing an existing salt system. We can help confirm whether the CPB0009A is the right AutoPilot Evolve model for your pool.
