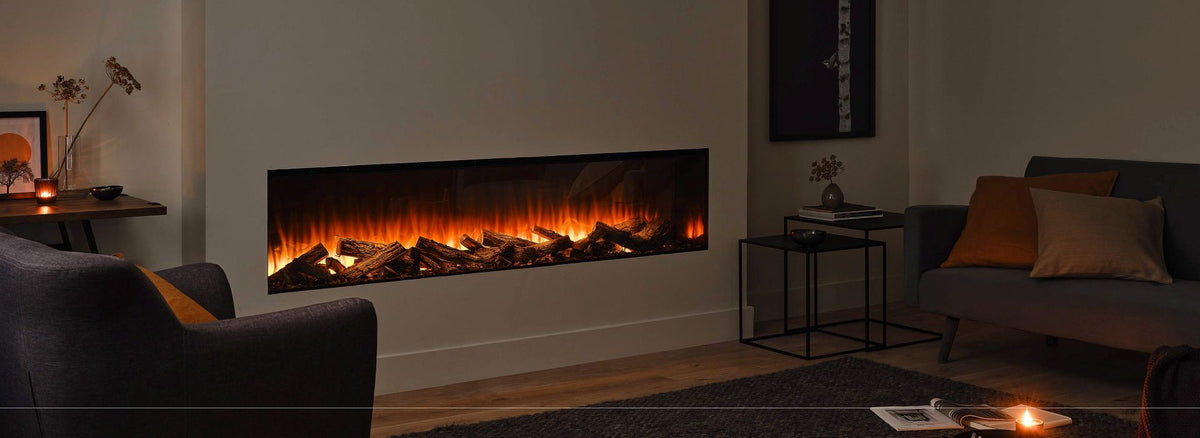

• British Fires New Forest Black Edition linear electric fireplace with LED flames over a real oak log bed
  • British Fires New Forest Black Edition electric fireplace built into a wall, flames lit

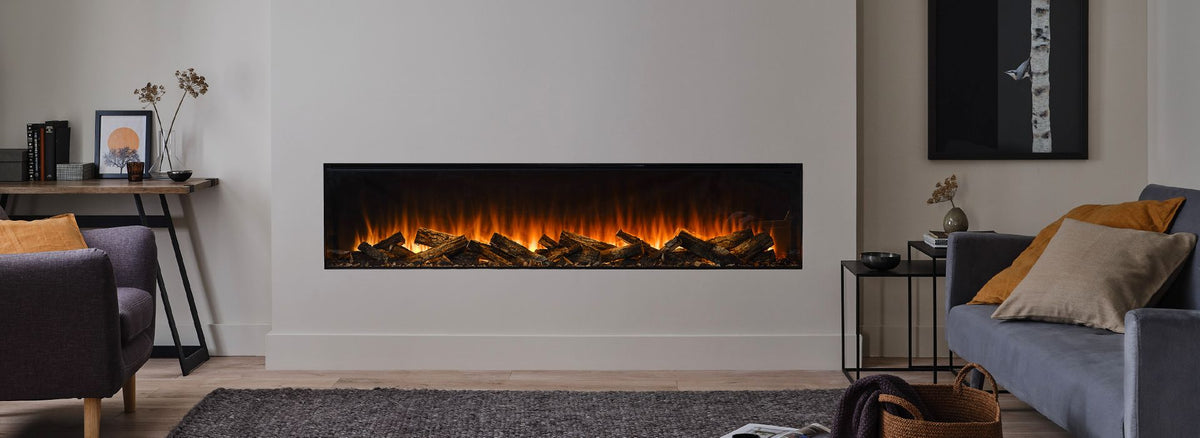

  • British Fires New Forest Black Edition electric fireplace installed in a room setting

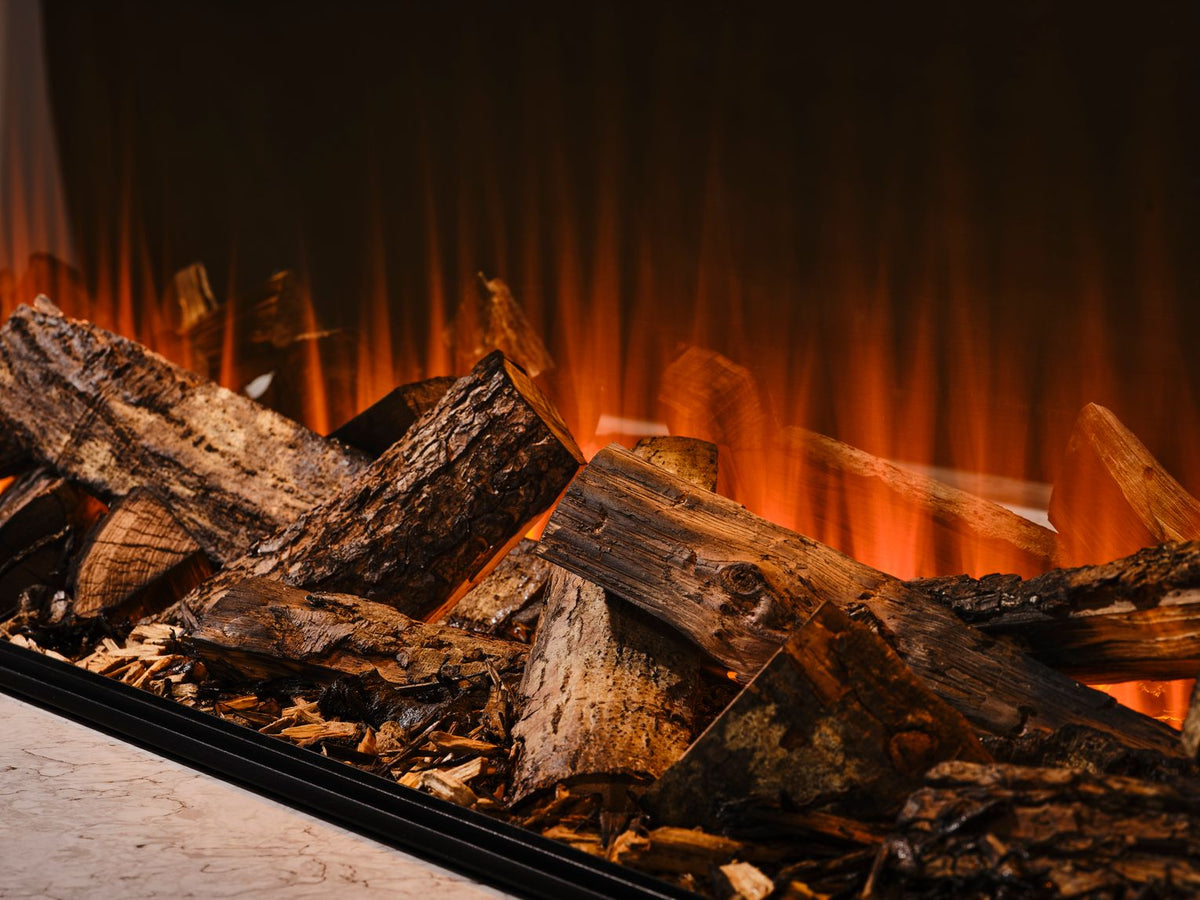

  • Close view of the hand-charred real oak logs in a British Fires New Forest electric fireplace
  • Dimension drawing for the British Fires New Forest 48 inch (1200) electric fireplace

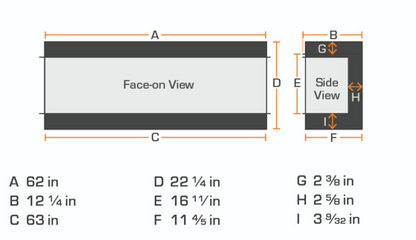

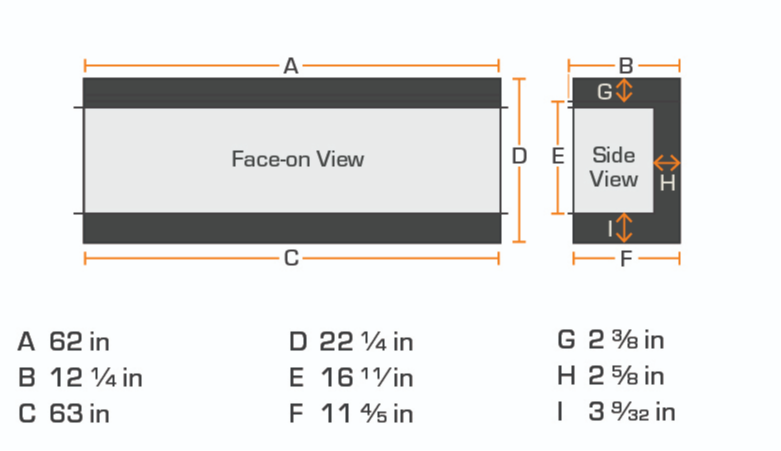

  • Dimension drawing for the British Fires New Forest 63 inch (1600) electric fireplace

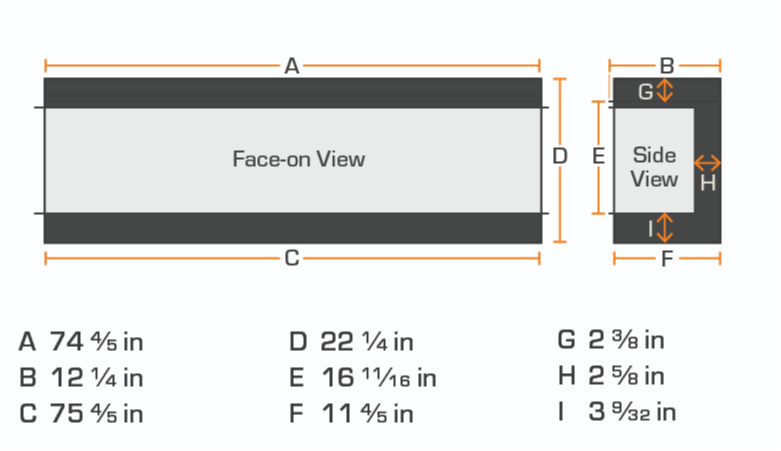

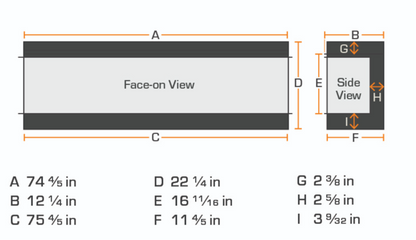

  • Dimension drawing for the British Fires New Forest 75 inch (1900) electric fireplace
1 7

British Fires

British Fires New Forest Electric Fireplace, 48", 63" or 75"

British Fires New Forest Electric Fireplace, 48", 63" or 75"

$3,775.00
$3,775.00
Sale Sold out
Shipping calculated at checkout.
Freight Shipping Notice This item may require freight delivery due to its size or weight. Please complete your order normally. Qualifying freight ships free to 44 states plus Washington, DC. Alaska, Hawaii, Idaho, Montana, North Dakota, and South Dakota require a freight quote, and oversized pallets may require a quote to any destination. If a quote is needed, we will contact you after your order is placed. Freight charges are not included unless specifically shown at checkout, and any additional freight charge must be quoted, approved and paid before the order ships.
British Fires New Forest Electric Fireplace, 48", 63" or 75"
View full details

The British Fires New Forest is a built-in linear electric fireplace made in 48, 63 and 75 inch widths, which British Fires also calls the New Forest 1200, 1600 and 1900. LED flames play over a real oak log fuel bed with dark glass behind the logs, and a 1500 W heater runs on 120V. It installs front facing, in a corner or three sided, and everything runs from the remote. Part numbers FCBUS0025 (48"), FCBUS0026 (63") and FCBUS0027 (75").

48", 63" or 75"Also called 1200, 1600 and 1900
1500 W, 120VOn its own 15 amp circuit
Real oak logsLED flames, dark rear glass
1, 2 or 3 sidedFront, corner or three sided

Specifications

Sizes and part numbers48" (1200) FCBUS0025, 63" (1600) FCBUS0026, 75" (1900) FCBUS0027
Manual model numbersEF40-48D, EF40-63D, EF40-75D (New Forest Black Edition)
Overall size (H x W x D)48": 22 1/4" x 47 1/4" x 12 1/4". 63": 22 1/4" x 63" x 12 1/4". 75": 22 1/4" x 75 3/4" x 12 1/4"
Wall opening (H x W x D)48": 22 1/2" x 46 3/8" x 11 3/4". 63": 22 1/2" x 62 1/4" x 11 3/4". 75": 22 1/2" x 75" x 11 3/4"
Weight48": 128 lbs. 63": 165 lbs. 75": 233 lbs.
Electrical120V AC, 60 Hz, 1500 W heater, 12 amps
Power connection3-pin plug on a 6 ft cord, on its own 15 amp circuit breaker. Hardwiring option, done by a qualified electrician
Flame and lightingLED flame effect, underbed colors orange, blue and pink
Fuel bedDeluxe Real Log fuel bed of hand-charred oak logs, included
GlassFlush front glass with Air Curtain Technology, dark glass behind the logs
InstallationFront facing (fully recessed), corner (one side covered) or three sided
Clearance3 ft from the front of the fireplace to combustible materials
CertificationCSA
BrandBritish Fires
Plan the power before the wall is built.The installation manual calls for the New Forest on its own 15 amp circuit breaker, never on an extension cord. If you hardwire it, a qualified electrician should do the work, otherwise the warranty may be void. Have the fireplace on site before framing, since part of it sits behind the finished wall.

Questions people ask us

What do 1200, 1600 and 1900 mean?

They are British Fires names for the same three fireplaces: the New Forest 1200 is the 48", the 1600 is the 63" and the 1900 is the 75". Pick the size option that matches.

Does it plug in, or does it need to be hardwired?

It comes with a 3-pin plug on a 6 ft cord, and the manual calls for it to be on its own 15 amp circuit breaker with no extension cord. It can also be hardwired, and that should be done by a qualified electrician.

What comes in the box?

The manual lists the heater unit, the Deluxe Real Log fuel bed, a wall bracket, the remote with 2 AAA batteries, L-shaped brackets, blanking plates, end trims, firebox screws and suction cups for handling the glass.

Can it go in a corner or be open on three sides?

Yes. It installs front facing with both sides covered, cornered with one side covered, or three sided with both ends open inside a built chimney breast. The opening is the same for all three.

How much clearance does it need?

Keep combustible materials at least 3 ft from the front. If the wall above projects past the front of the fireplace, that overhang must be non-combustible, such as calcium silicate fireboard at least 1/4" thick.

Not sure which size fits your wall?

Send us the wall width, the TV size if there is one, and the install style you want, and we will check it with you before you order. Ask us here.

Goes with this

Deluxe Real Wood Log SetReal oak logs for the New Forest Rear Dark GlassSized for each New Forest width Electric fireplacesThe British Fires range British FiresFireplaces, inserts and stoves

Manuals and warranty

British Fires manuals and warranty

Warranty terms come from British Fires and depend on the product. Read the manual and the warranty for your model before you order.

Our warranty library· New Forest installation manual, US (PDF)· New Forest 48" specification sheet (PDF)· New Forest 63" specification sheet (PDF)· New Forest 75" specification sheet (PDF)· British Fires all products brochure, US (PDF)
