AquaCal TropiCal T70 63,000 BTU Inverter Pool Heat Pump
AquaCal TropiCal T70 63,000 BTU Inverter Pool Heat Pump

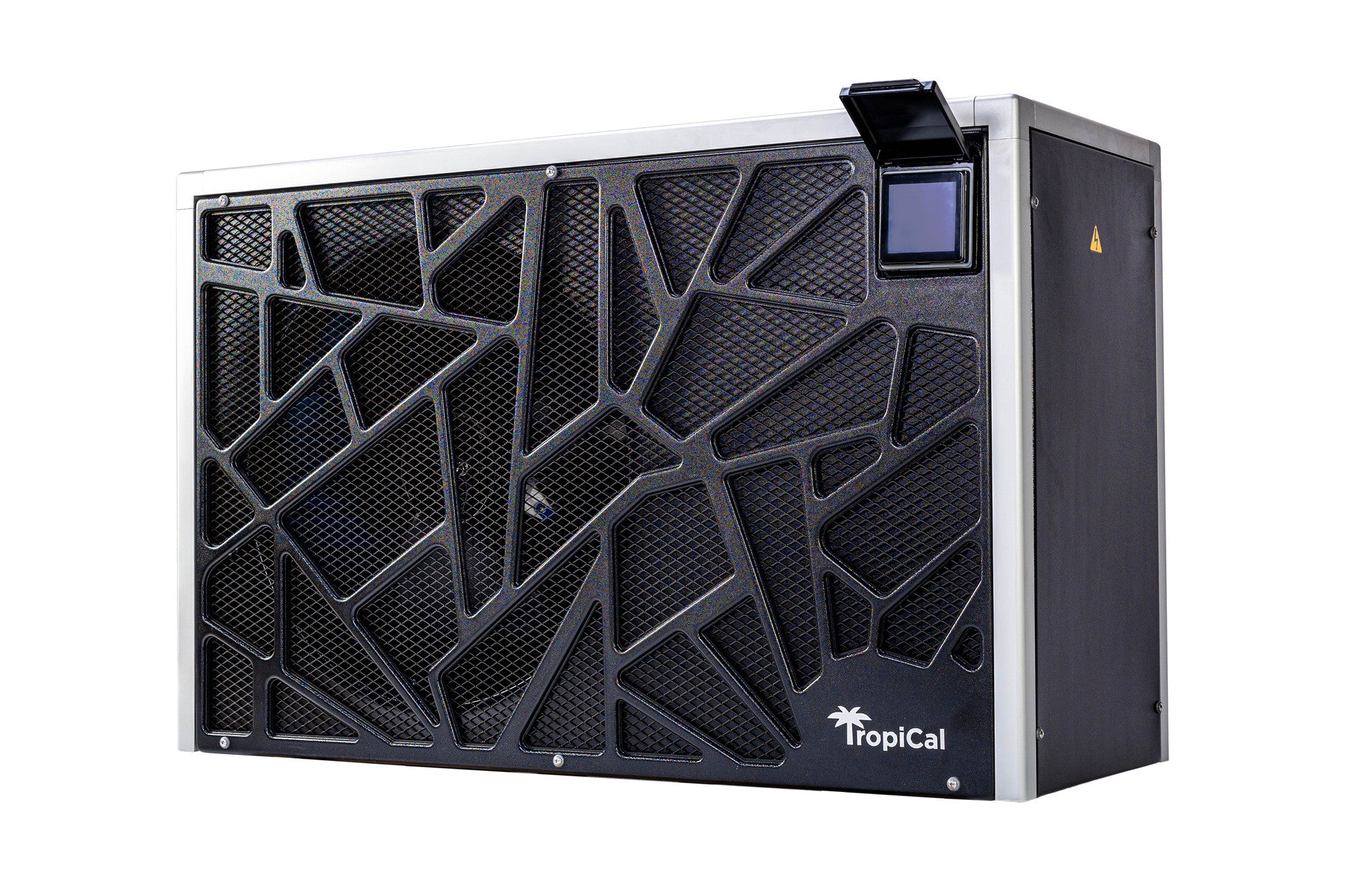

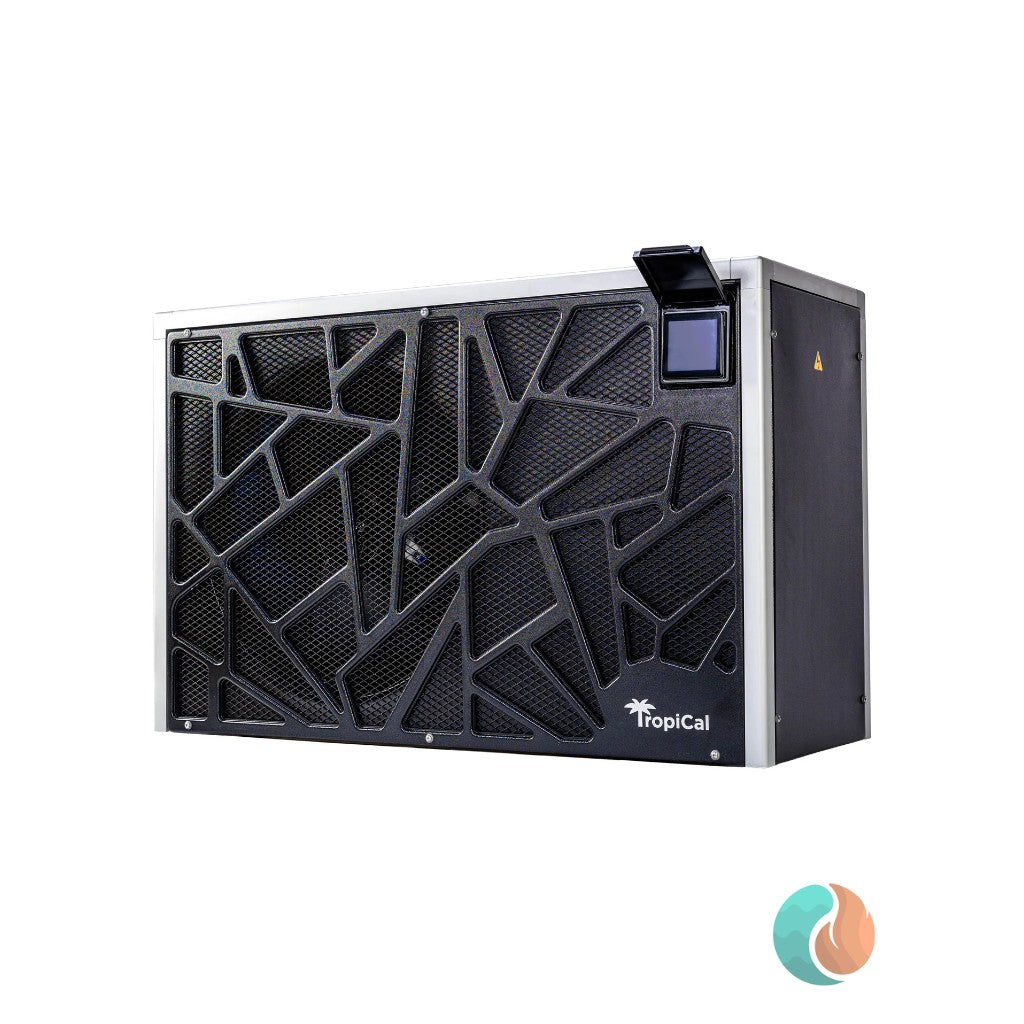

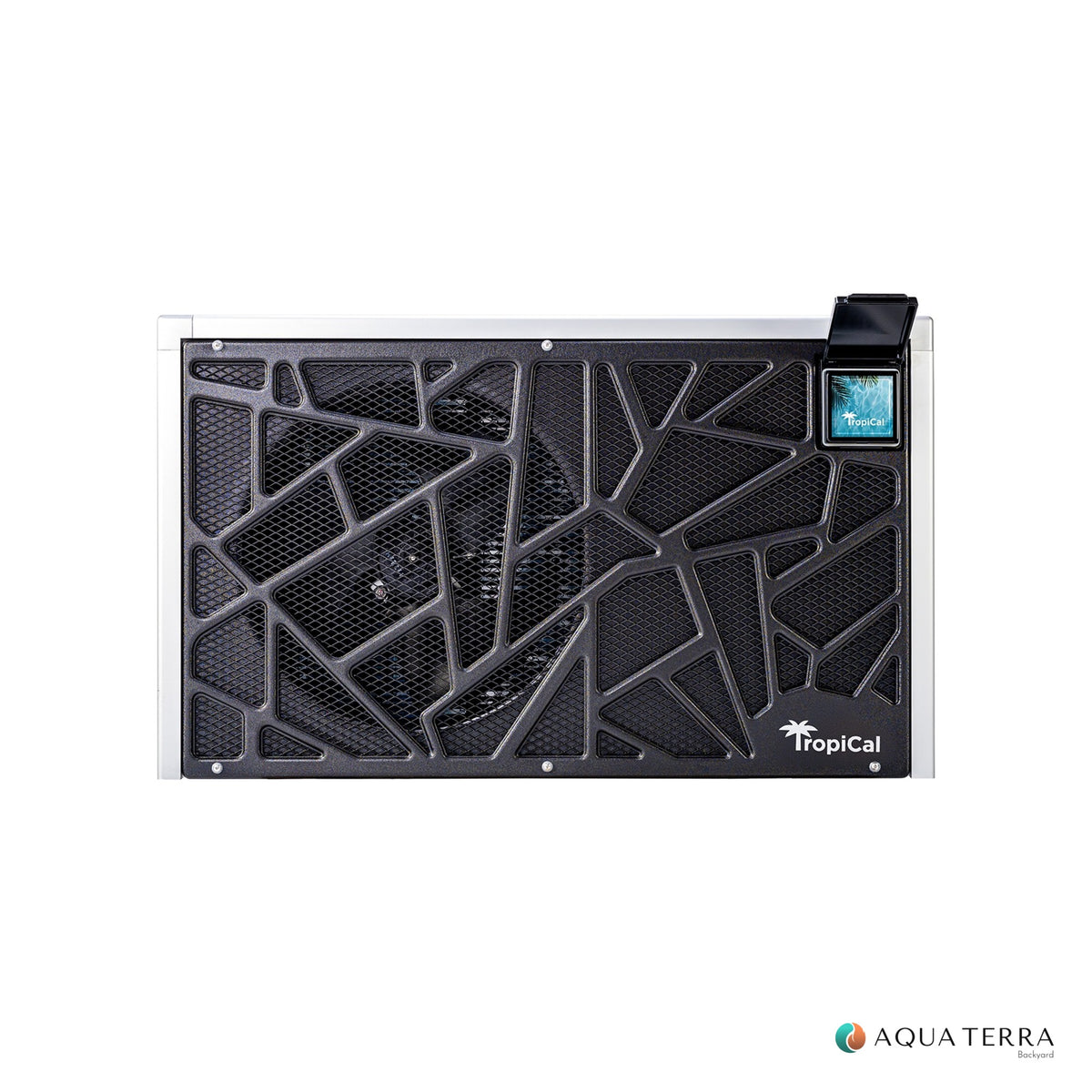

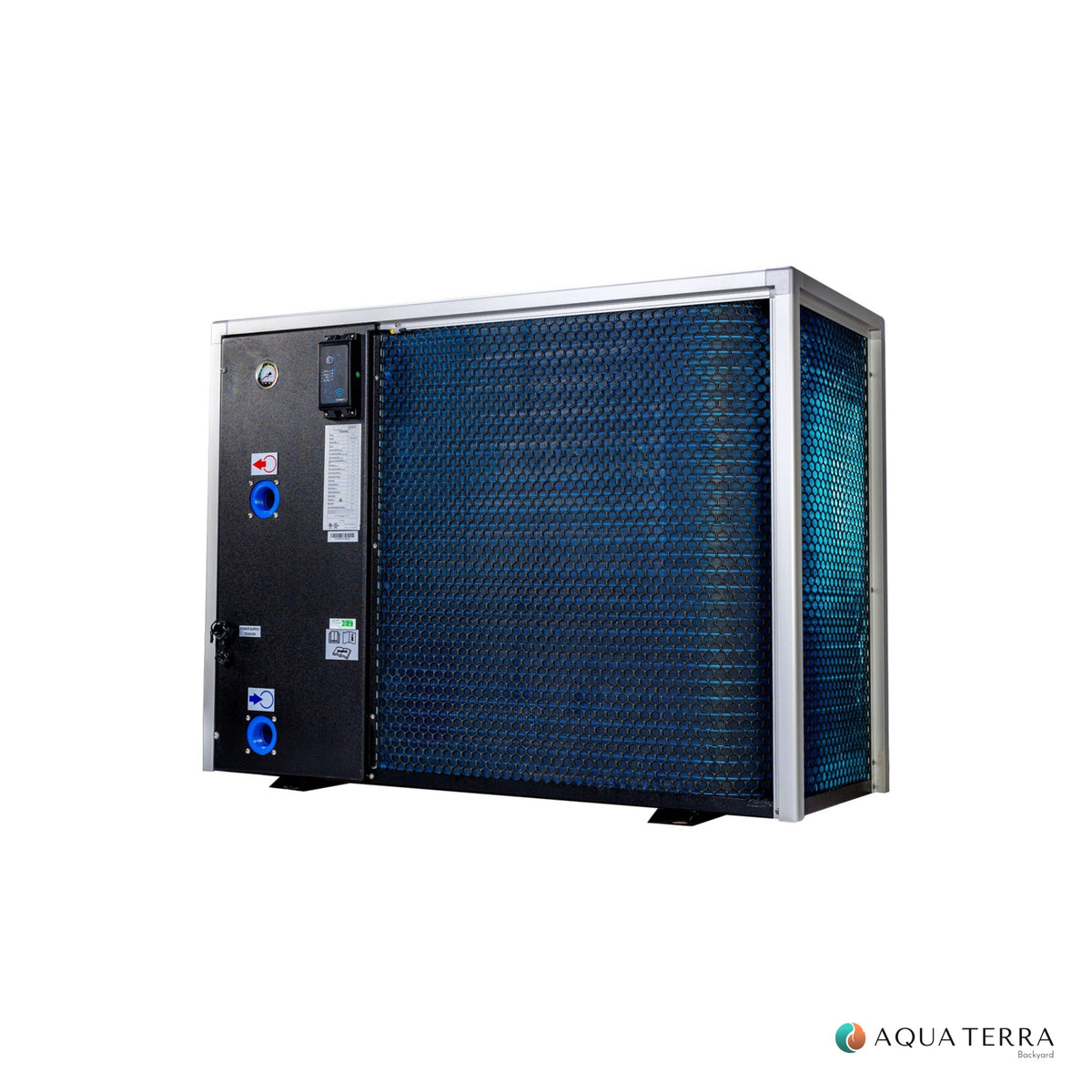

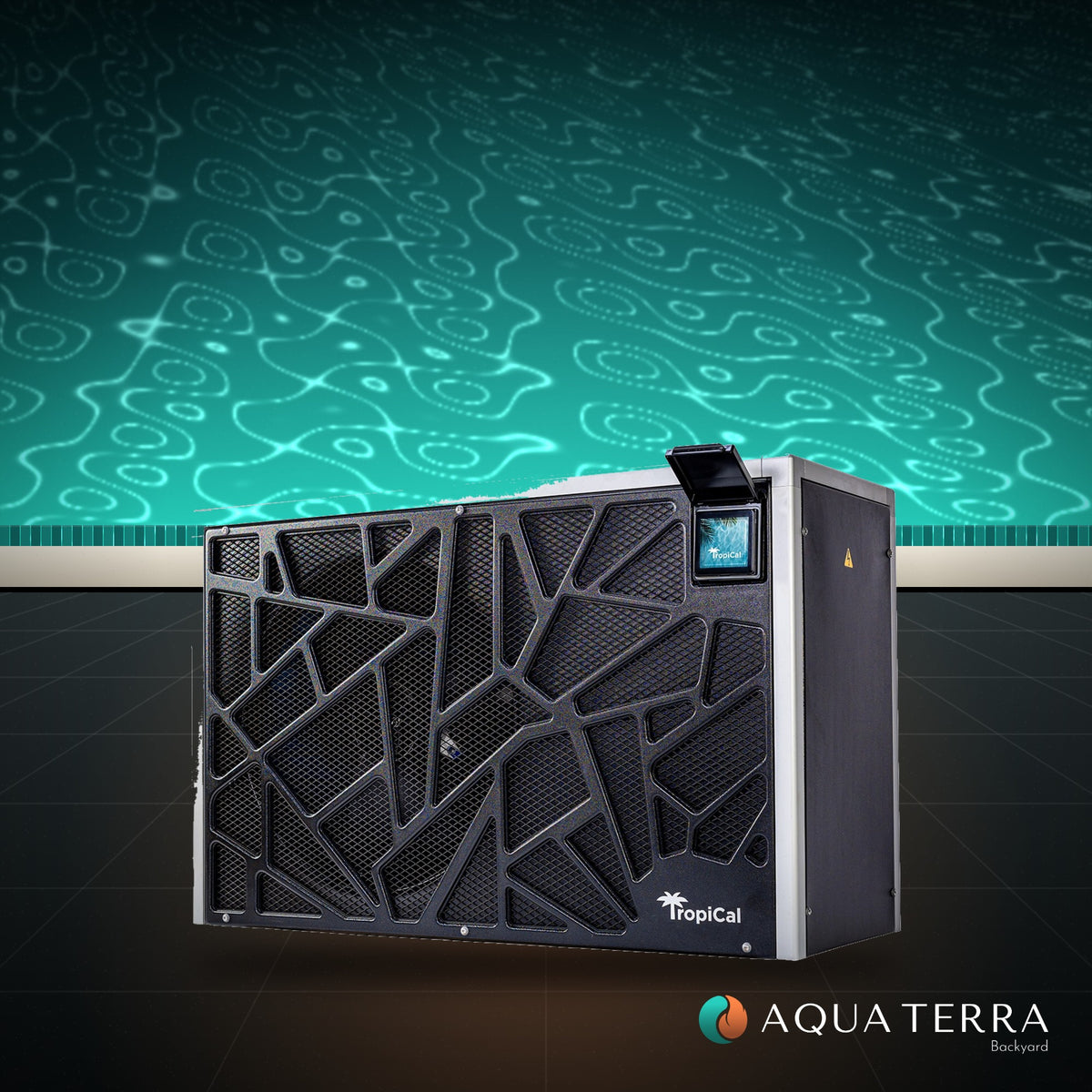

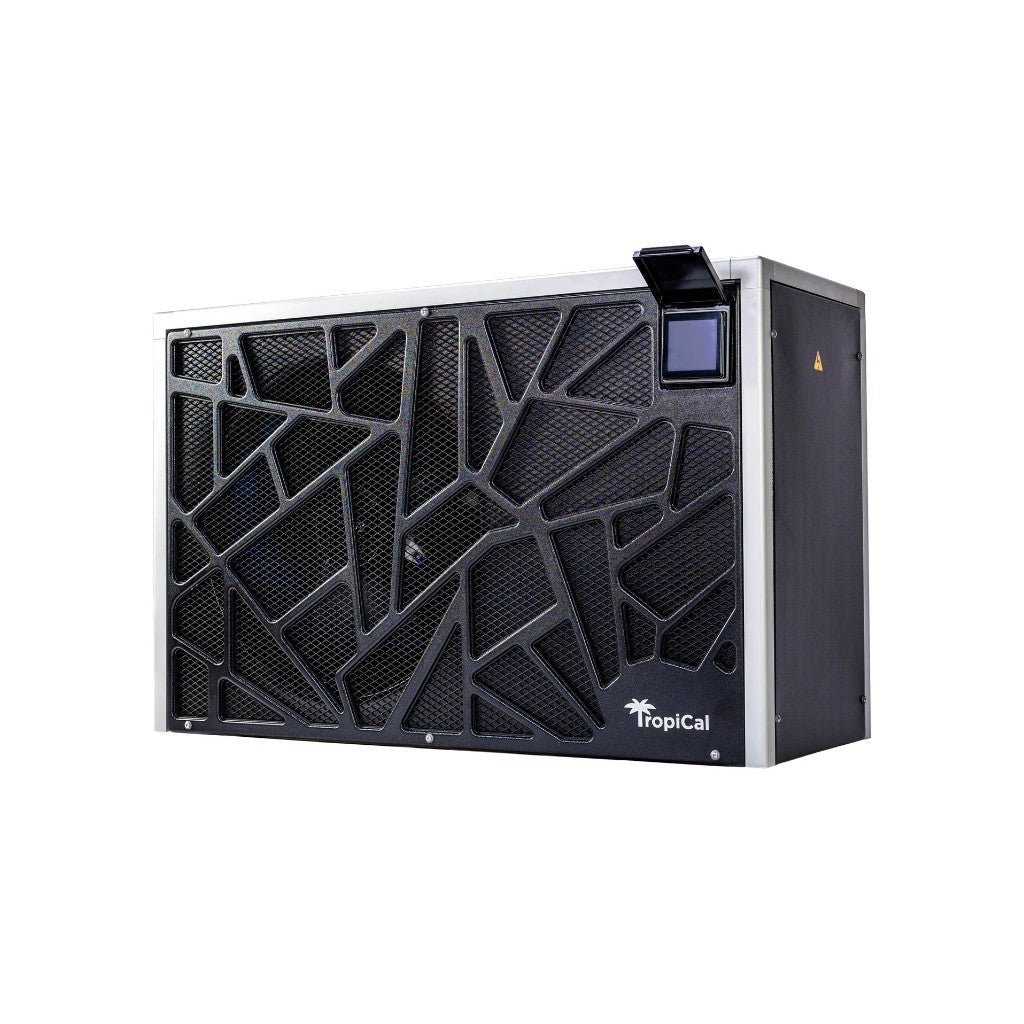

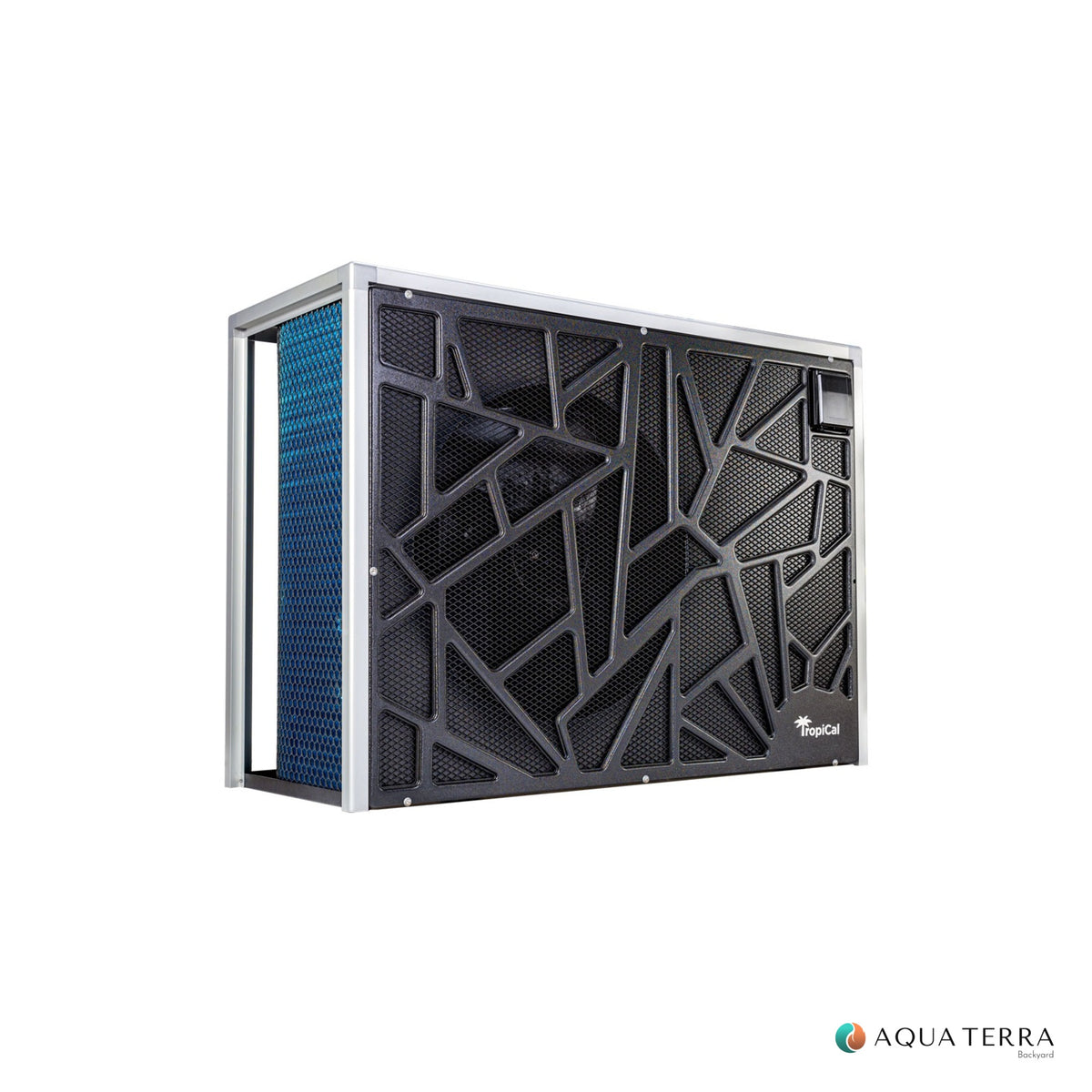

TropiCal T70 inverter pool heat pump, 63,000 BTU
A full inverter heat pump that heats and cools the pool, matching its output to what the water needs instead of running flat out. It makes 63,000 BTU at 80/80/80 in Boost mode and runs from the PoolSync app.
- Full inverter. The output rises and falls with demand instead of cycling on and off, which is how it reaches a COP of 10.8 in Eco mode.
- Three modes, one touchscreen. Boost, Eco and Smart modes on a 4 inch color touchscreen, with a controller that reads in more than one language.
- Run it from your phone. Built in WiFi connects it to the PoolSync app, and it works with AquaCal Mission Control.
Why the inverter matters.
A fixed speed heat pump runs at full output or not at all. The TropiCal runs at the output the pool actually needs, which is where the 10.8 COP in Eco mode comes from, and it quietly holds the temperature once the water is there.

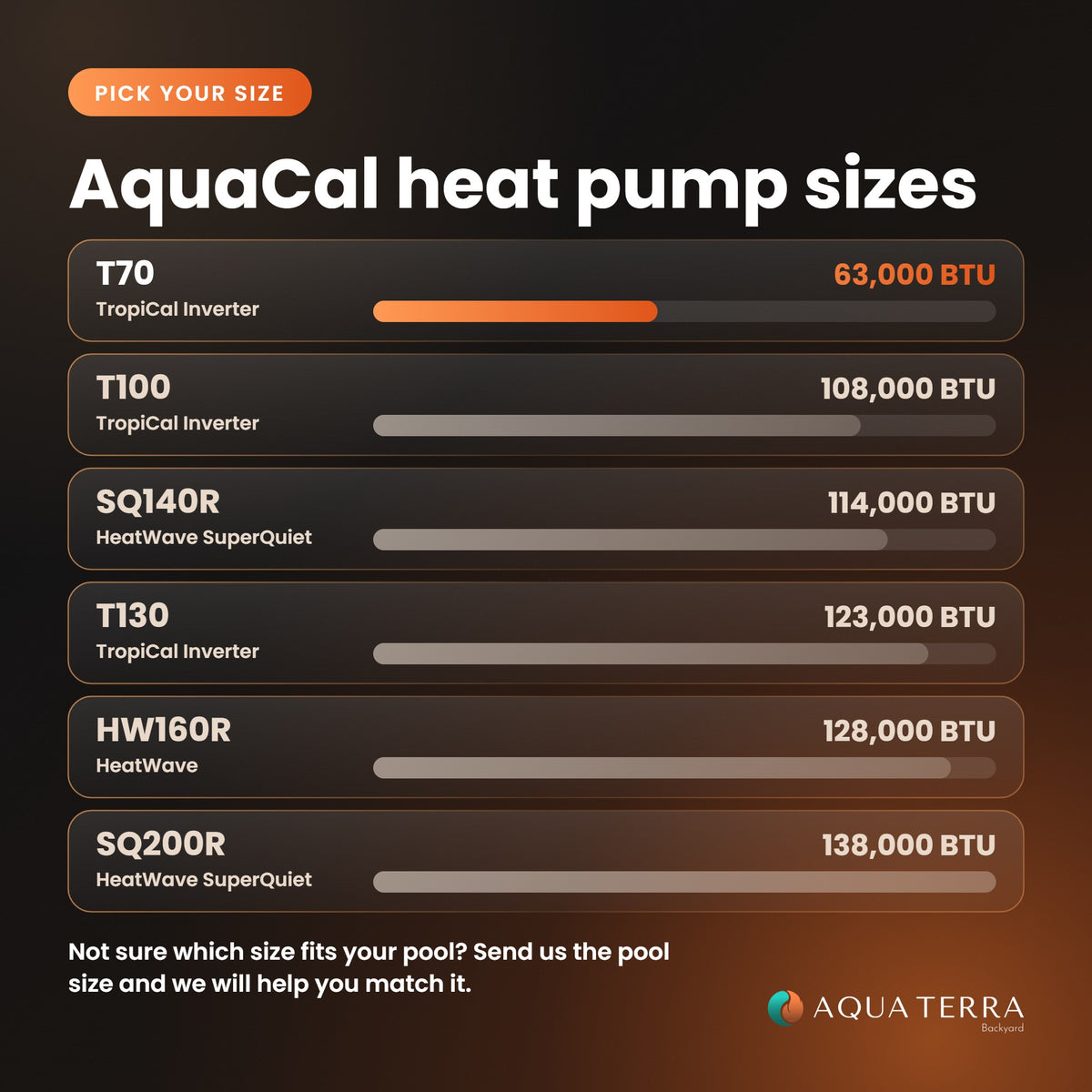

Tell us the gallons and where you live and we will confirm the T70 is the right size.
The detail
Specifications
| Model | T70 |
| Series | TropiCal |
| Heat pump type | Heat and cool |

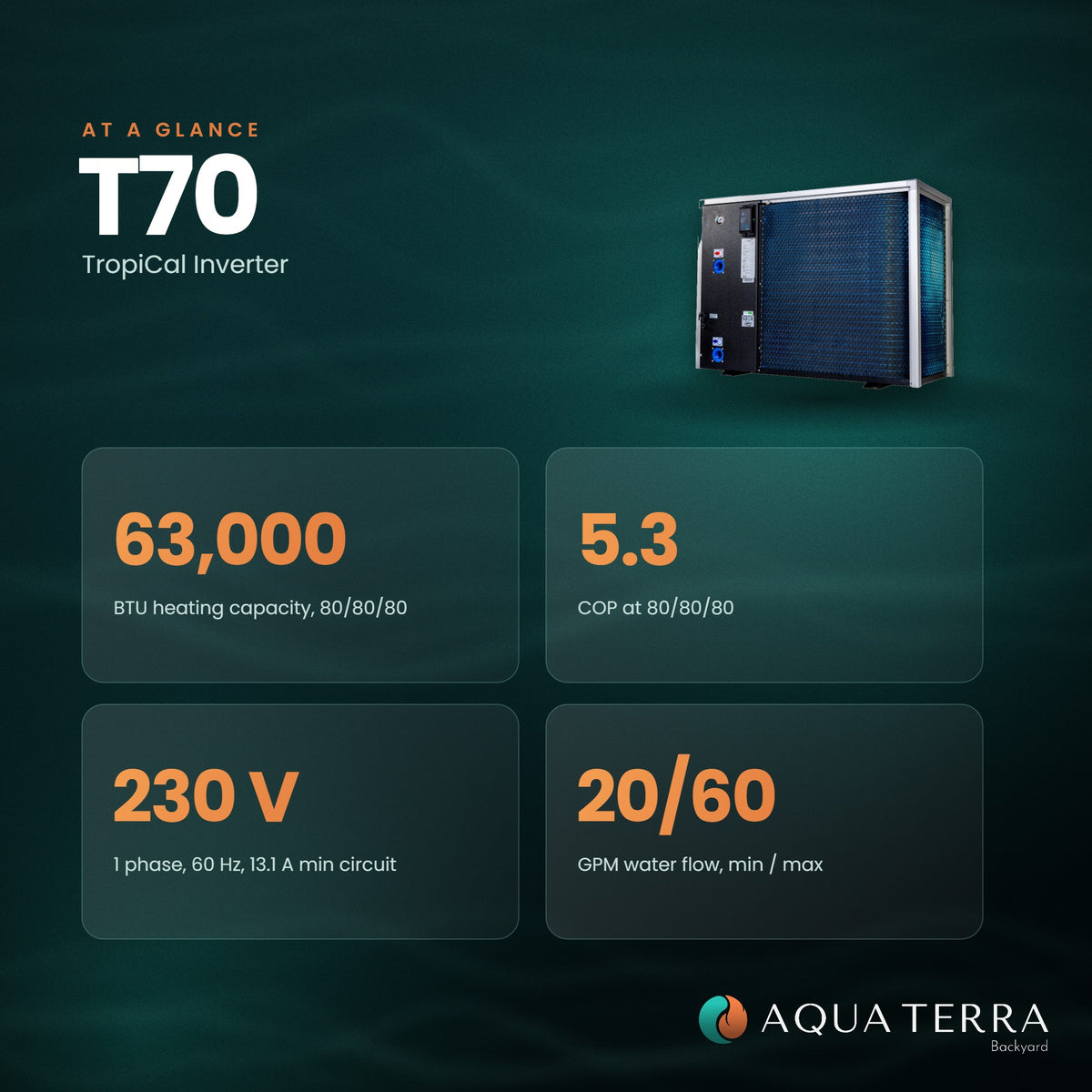

| Heating output, 80/80/80 (Boost) | 63,000 BTU |
| Heating output, 80/80/63 (Boost) | 60,000 BTU |
| Heating output, 80/50/63 (Boost) | 25,500 BTU |
| COP, 80/80/80 (Boost) | 5.3 |
| COP, 80/80/63 (Boost) | 5.1 |
| COP, 80/50/63 (Boost) | 4.0 |
| COP, 80/80/80 (Eco) | 10.8 |
| Refrigerant | R32 |
| kW input | 3.4 |
| kW output | 7.5 to 18.5 |
| Minimum circuit ampacity | 13.1 A |
| Maximum fuse size | 20 A |
| Electrical | 230V, 1 phase, 60 Hz |
| Water flow, min / max | 20 / 60 GPM |

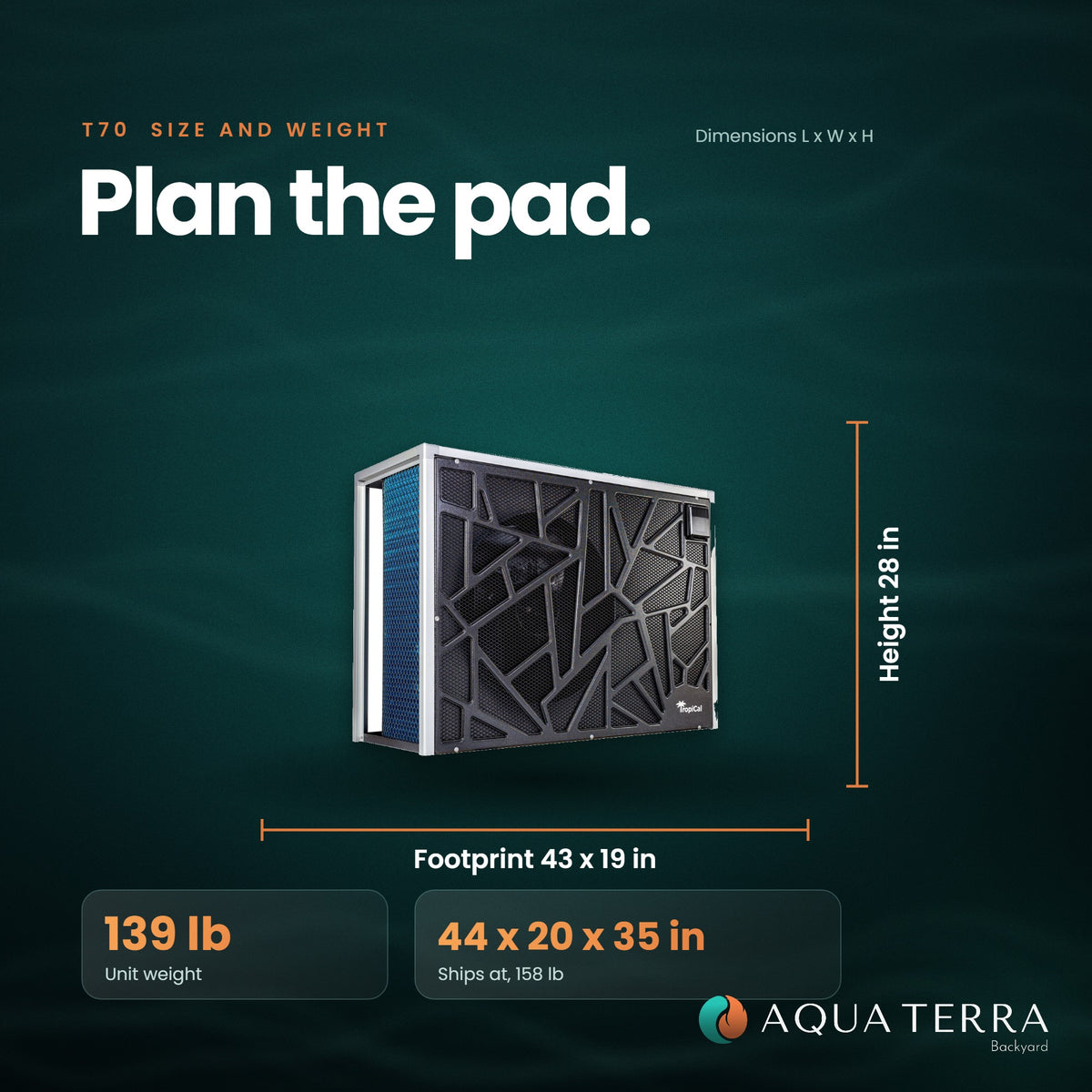

| Dimensions, L x W x H | 43 x 19 x 28 in |
| Weight | 139 lb |
| Shipping dimensions | 44 x 20 x 35 in |
| Shipping weight | 158 lb |
| Controls | 4 inch color touchscreen, built in PoolSync WiFi |
| Warranty | 3 years parts and labor, limited parts years 4 and 5 |
Installation and what is included
The heat pump goes on its own dedicated circuit, sized from the ampacity and fuse figures in the specifications. A licensed electrician should make the connection.

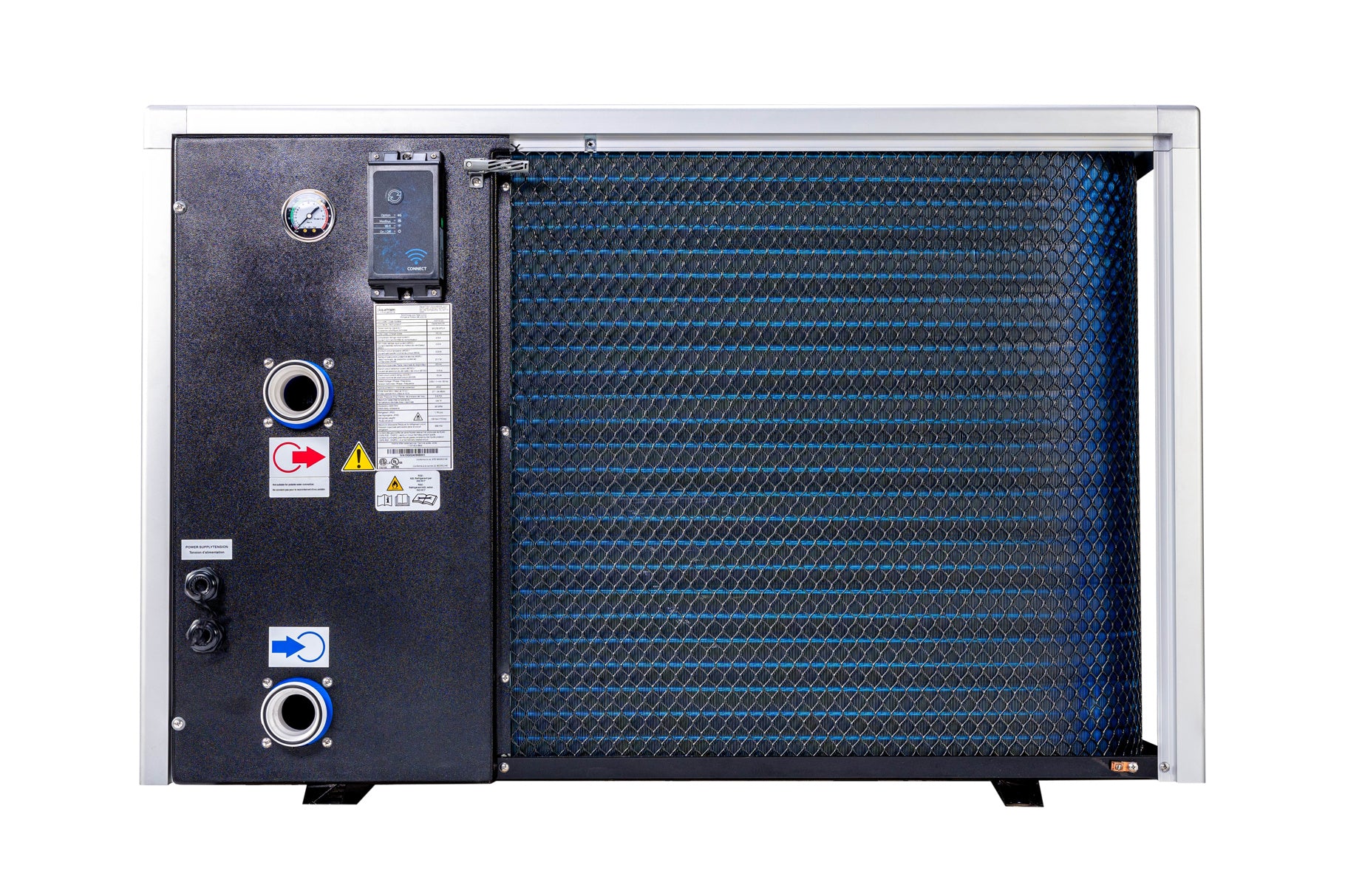

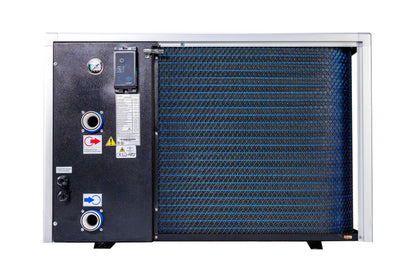

Plumb it for 20 to 60 GPM. Above the maximum, AquaCal requires a heater bypass, and we will match one to your plumbing.
Built in PoolSync WiFi connects it to the PoolSync app once it is installed.
Shipping and returns
In stock orders are processed and shipped within 1 to 2 business days. Heat pumps travel by freight carrier and freight deliveries are made curbside.
Inspect the shipment before you sign for it. Signing without noting visible damage counts as accepting it in good condition. Report concealed damage within 48 hours and keep the packaging.
Return requests must be submitted within 21 calendar days from delivery, and every return needs prior written authorization from Aqua Terra Backyard.
Common questions
Will it heat the pool when the air is cool?
Yes, with less output as the air cools. AquaCal rates the T70 at 25,500 BTU with 50 degree air, 80 degree water and 63 percent humidity.
Can it cool the pool?
Yes. Every AquaCal heat pump heats and cools.
Do I need an electrician?
Yes. It runs on 230V single phase power on a dedicated circuit, and a licensed electrician should make the connection.
