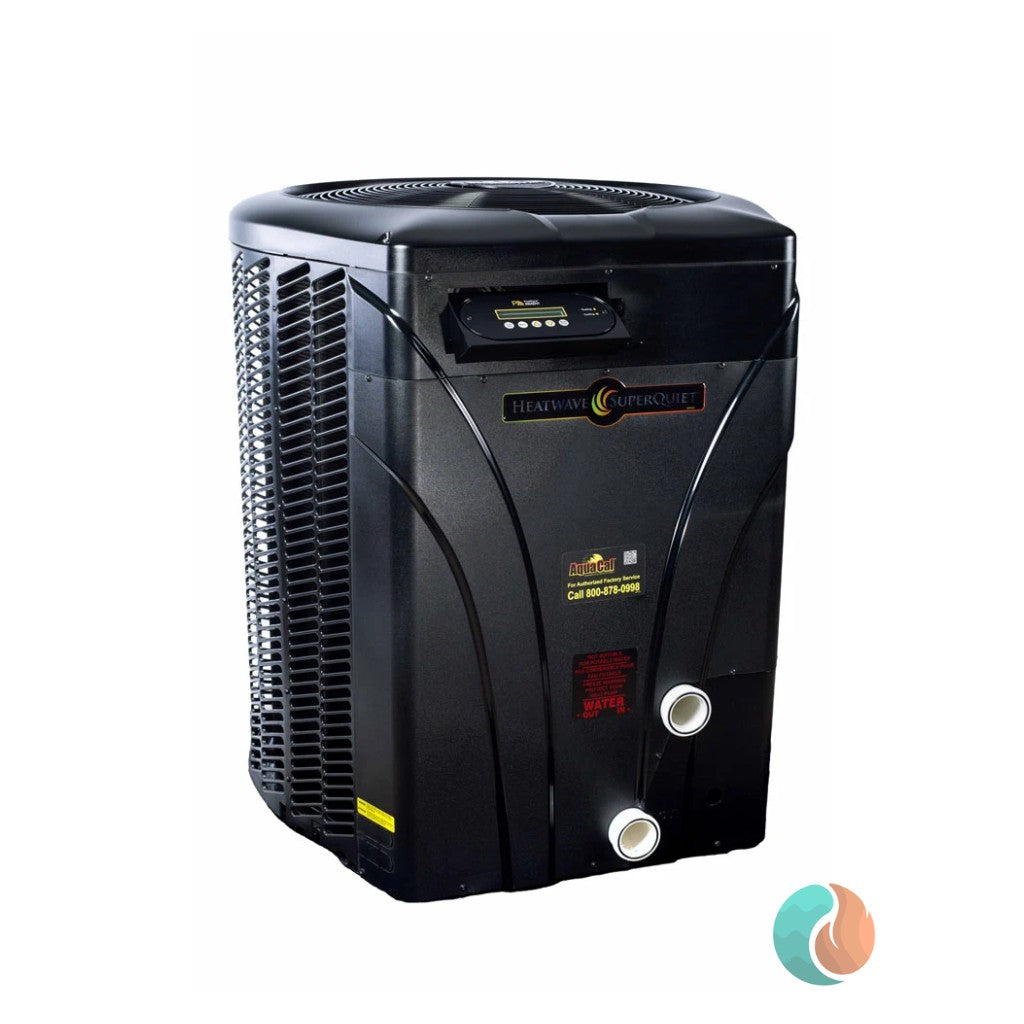

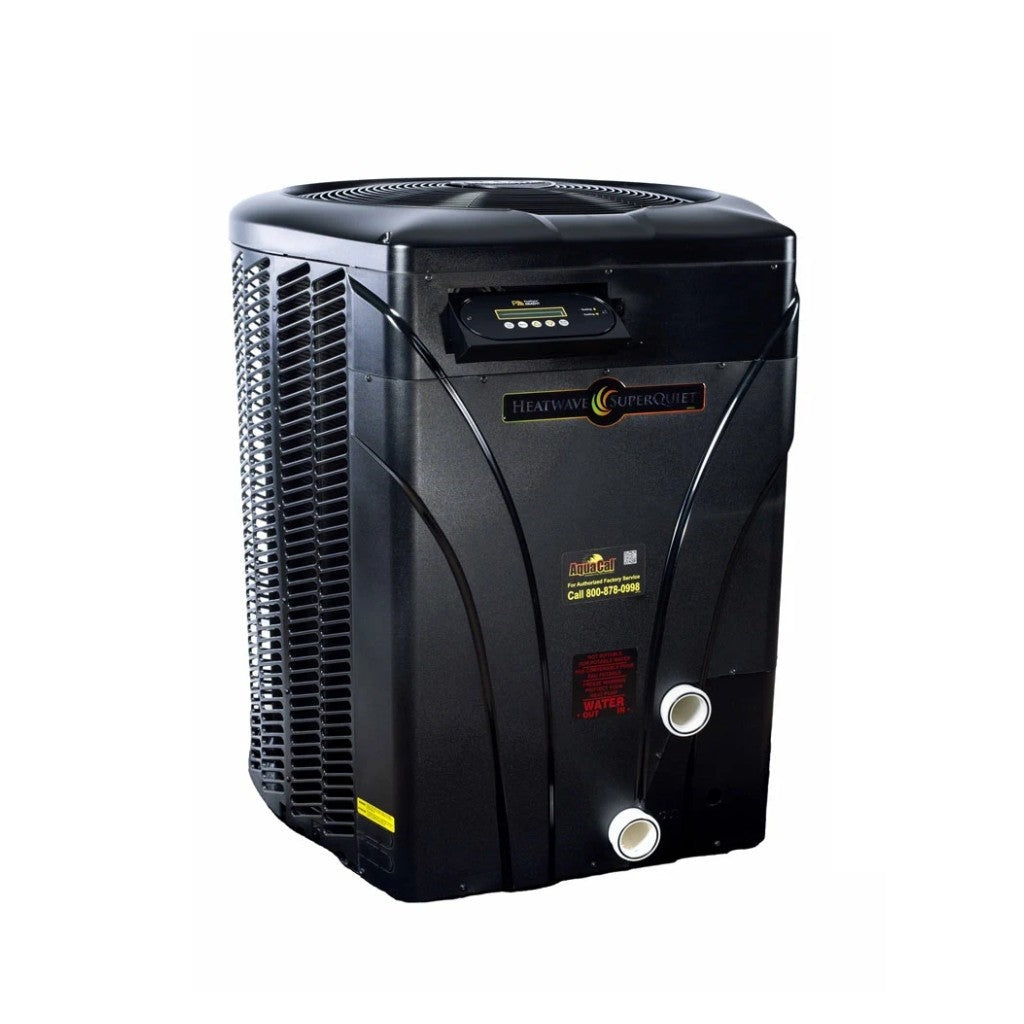

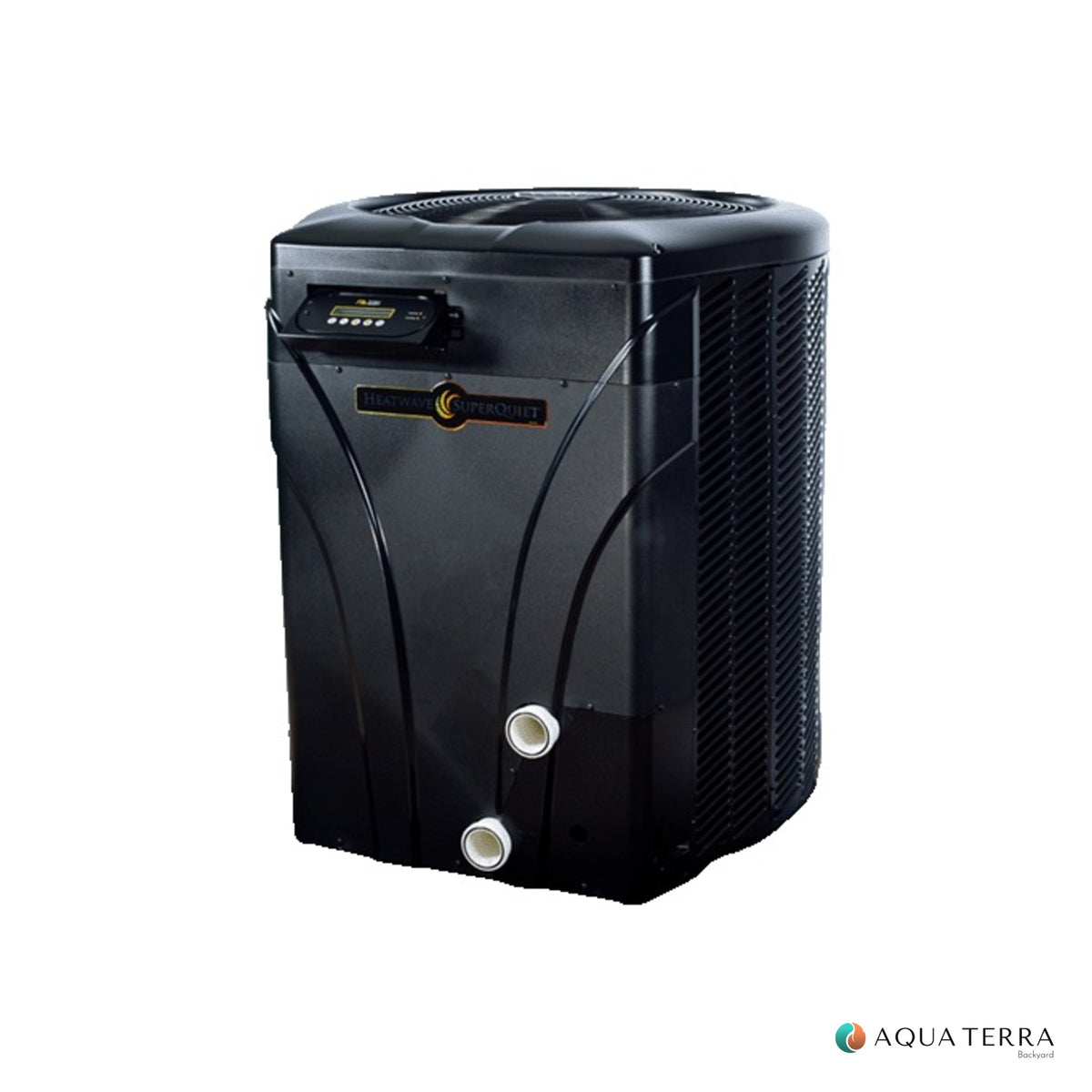

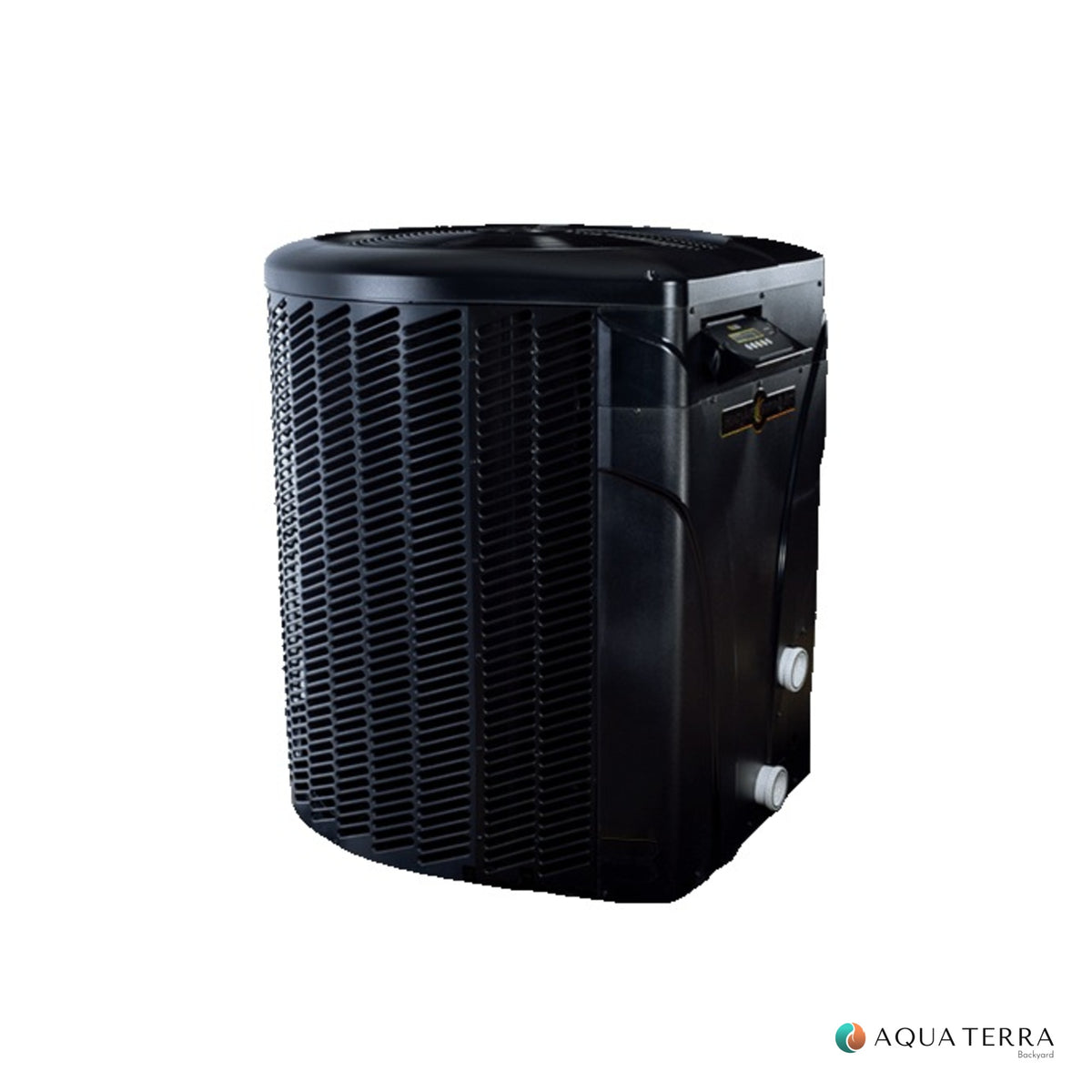

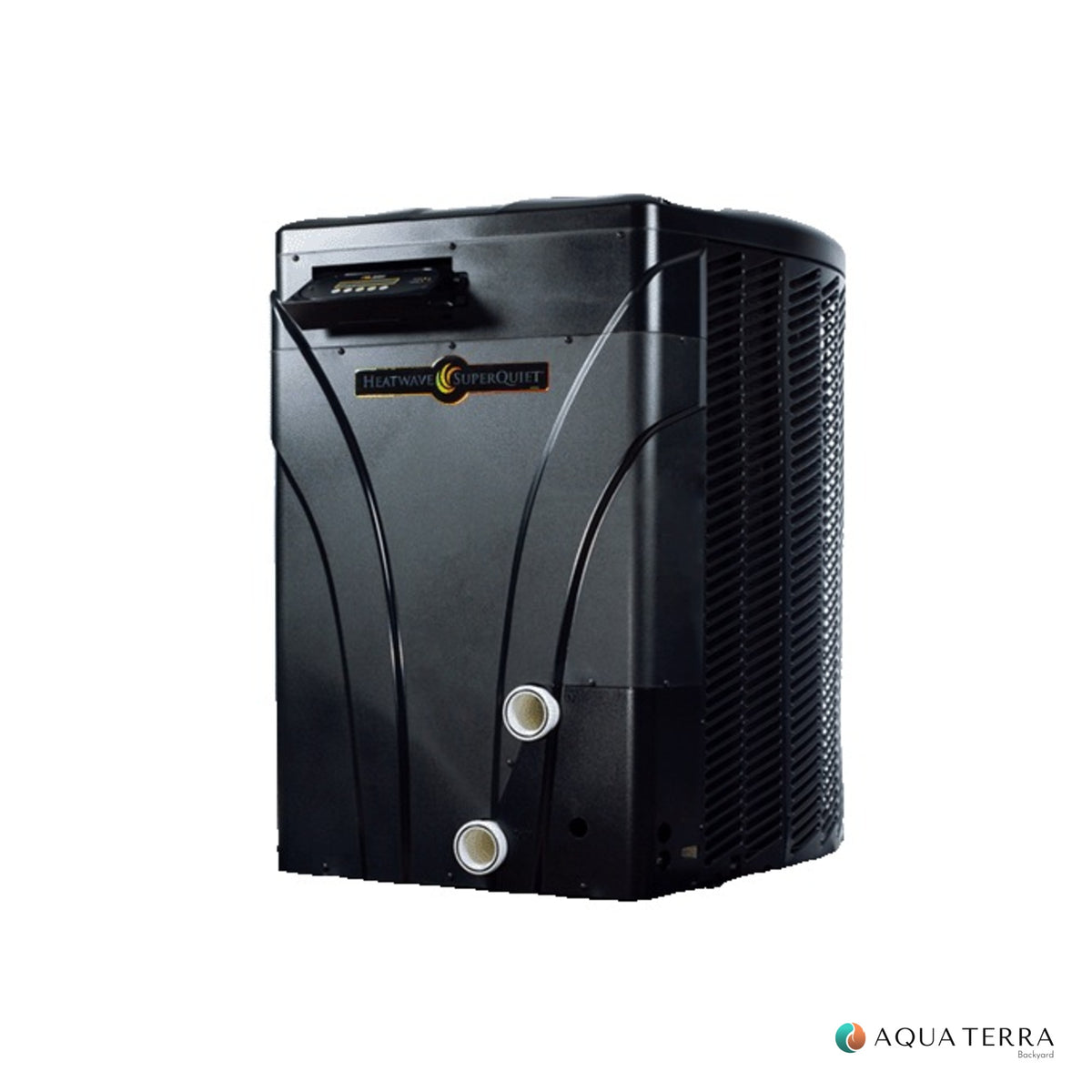

AquaCal HeatWave SuperQuiet SQ140R 114,000 BTU Pool Heat Pump
AquaCal HeatWave SuperQuiet SQ140R 114,000 BTU Pool Heat Pump

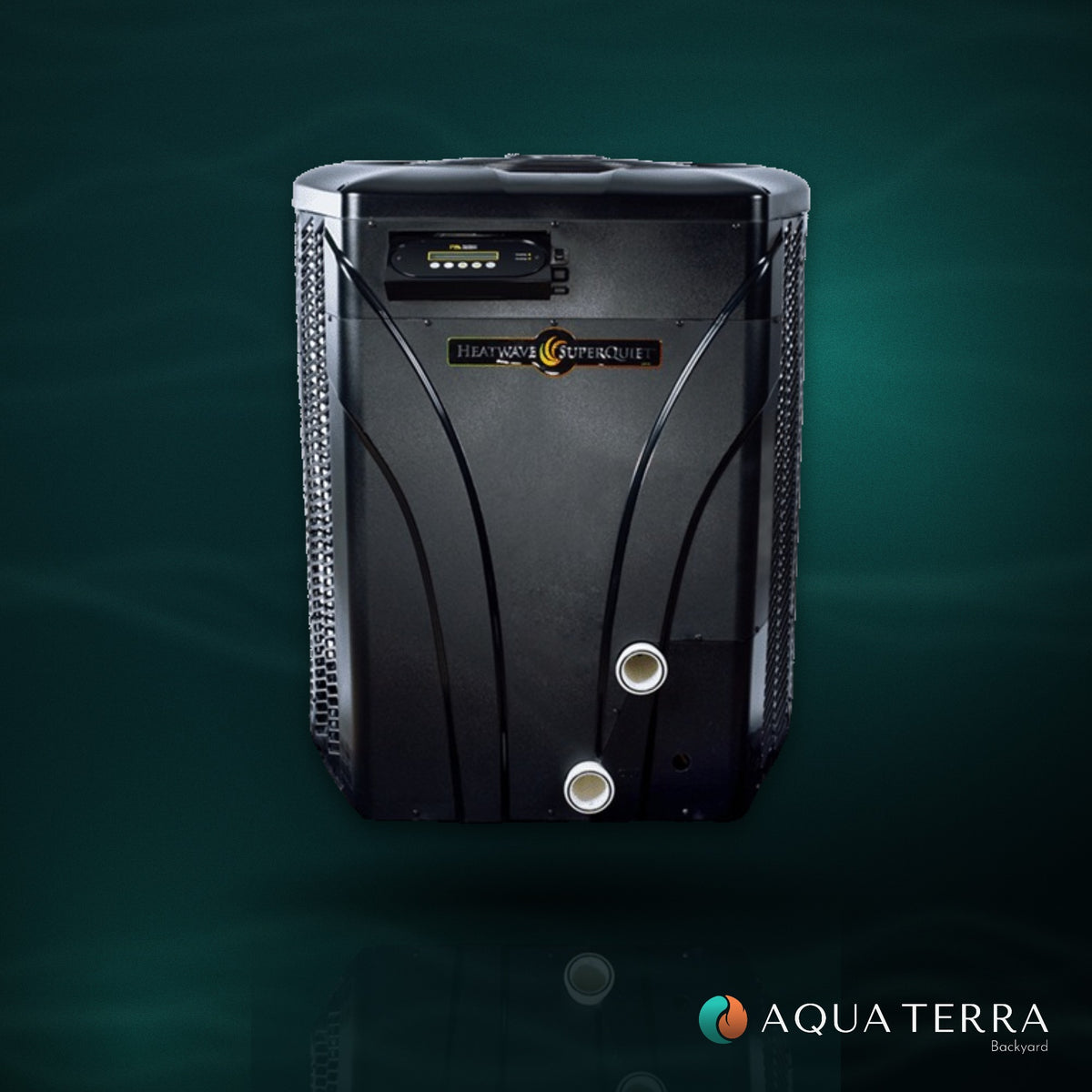

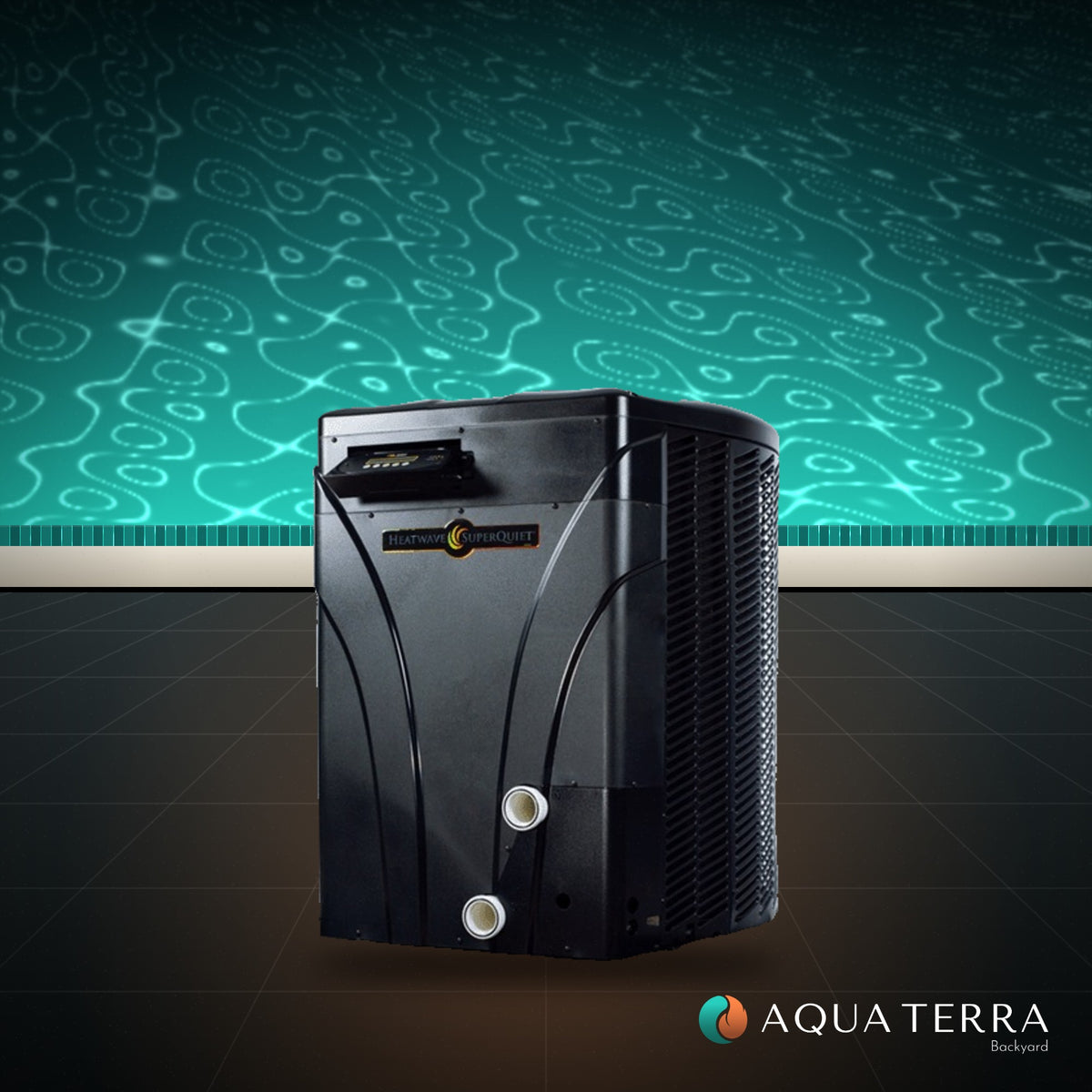

HeatWave SuperQuiet SQ140R pool heat pump, 114,000 BTU
114,000 BTU of heating and cooling through AquaCal's patented ThermoLink titanium heat exchanger, in a corrosion proof cabinet with a built in drain pan. Embedded PoolSync WiFi puts it on your phone.
- Titanium where it counts. The patented ThermoLink heat exchanger is titanium, and AquaCal warrants the titanium tubing for life.
- A cabinet that will not rust. The cabinet is corrosion proof, with a built in drain pan for the condensation a heat pump makes.
- Run it from your phone. Embedded PoolSync WiFi for remote control and diagnostics, ready for the optional PoolSync Relay Center.

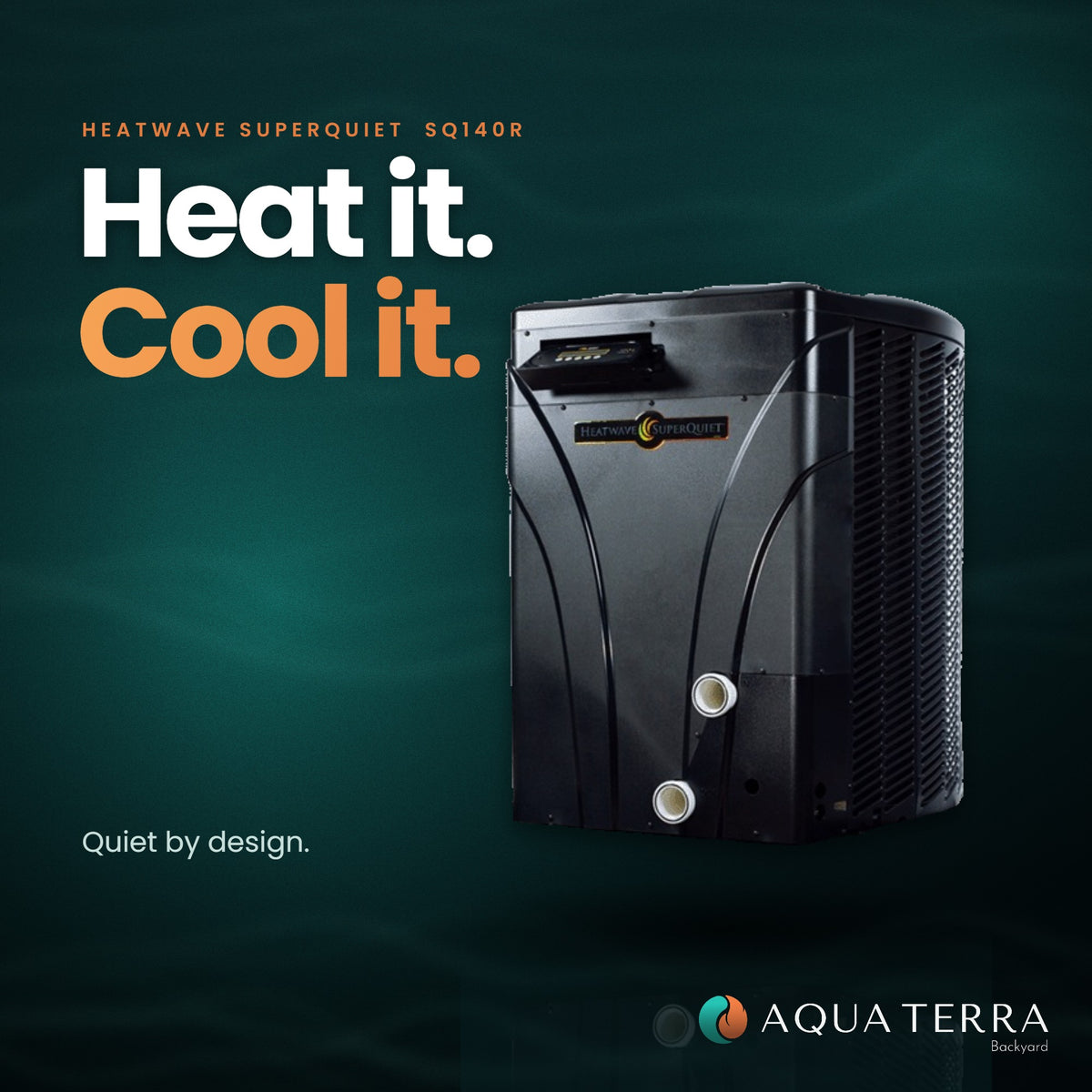

It cools the pool too.
Every AquaCal heat pump heats and cools, so the same unit warms the water in spring and fall and takes the edge off it in the height of summer. Set the temperature once and it holds it.

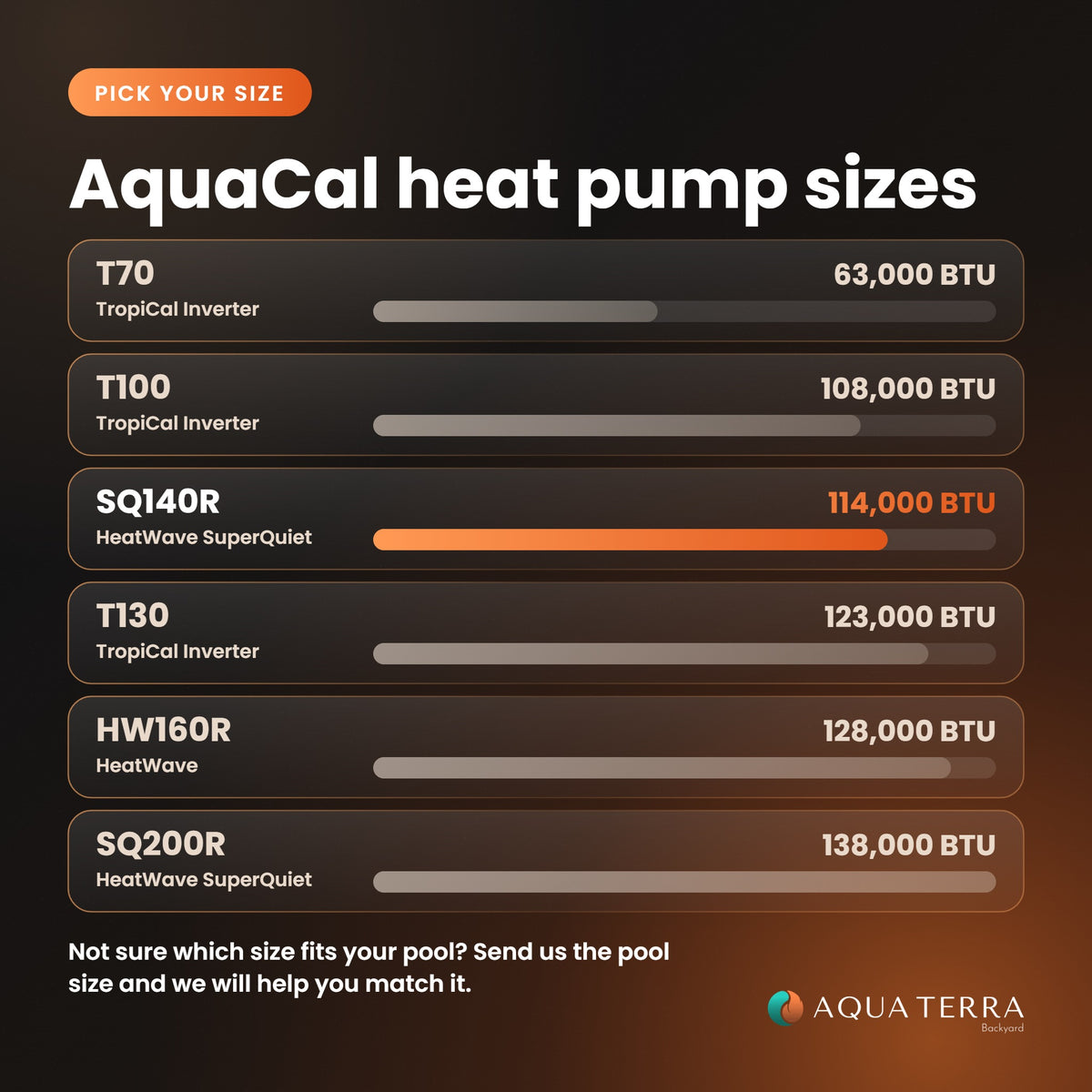

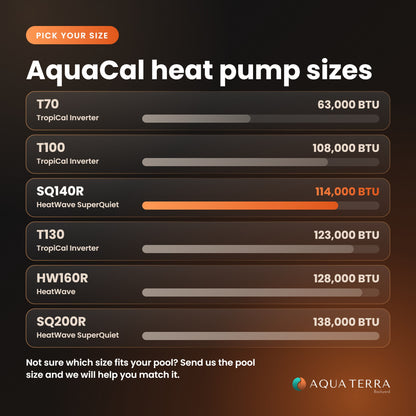

Tell us the gallons and where you live and we will confirm the SQ140R is the right size.
The detail

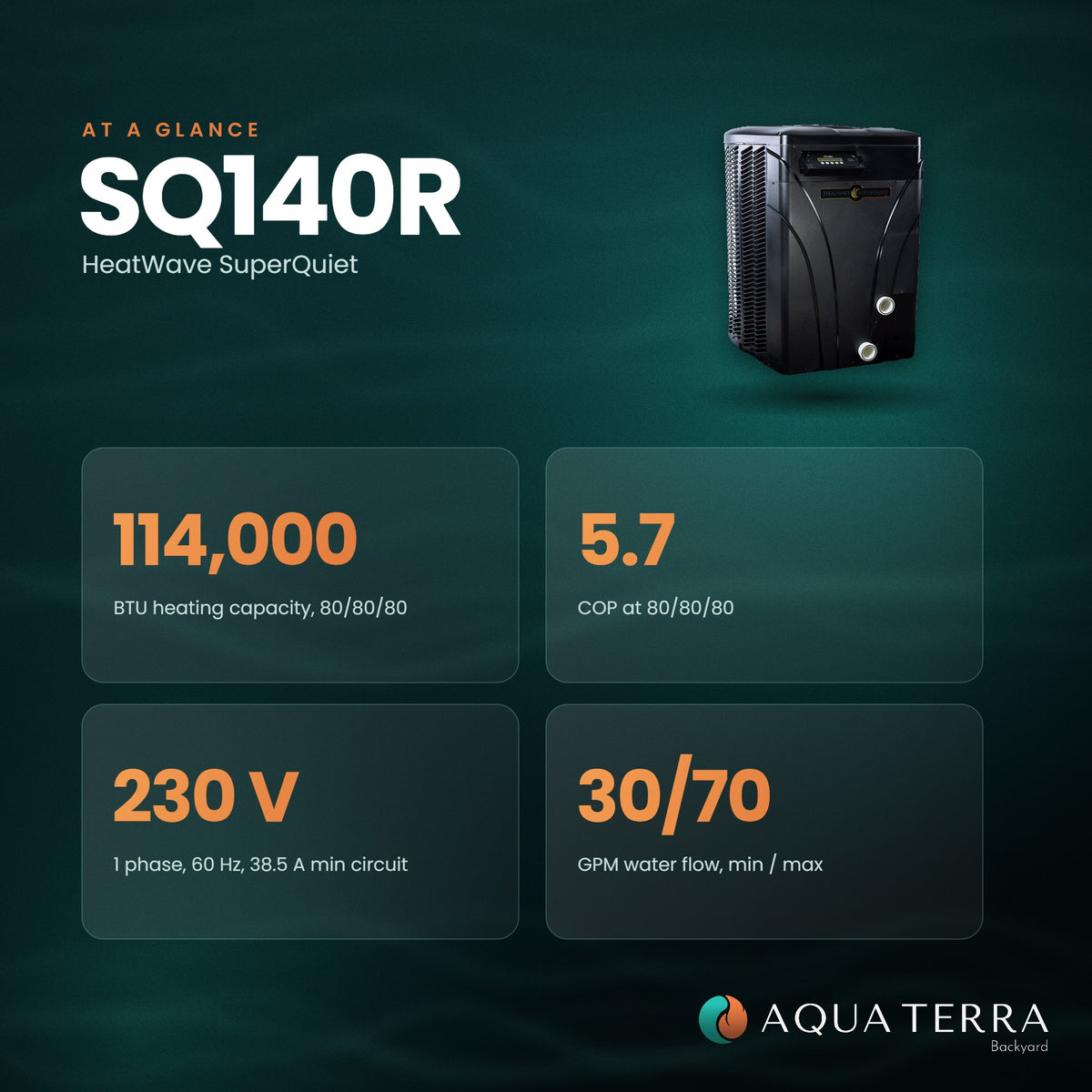

Specifications
| Model | SQ140R |
| Series | HeatWave SuperQuiet |
| Heat pump type | Heat and cool |
| Heating output, 80/80/80 | 114,000 BTU |
| Heating output, 80/80/63 | 106,000 BTU |
| Heating output, 80/50/63 | 72,000 BTU |
| COP, 80/80/80 | 5.7 |
| COP, 80/80/63 | 5.5 |
| COP, 80/50/63 | 4.0 |
| Refrigerant | R410A |
| kW input | 5.9 |
| Minimum circuit ampacity | 38.5 A |
| Maximum fuse size | 60 A |
| Electrical | 230V, 1 phase, 60 Hz |
| Water flow, min / max | 30 / 70 GPM |

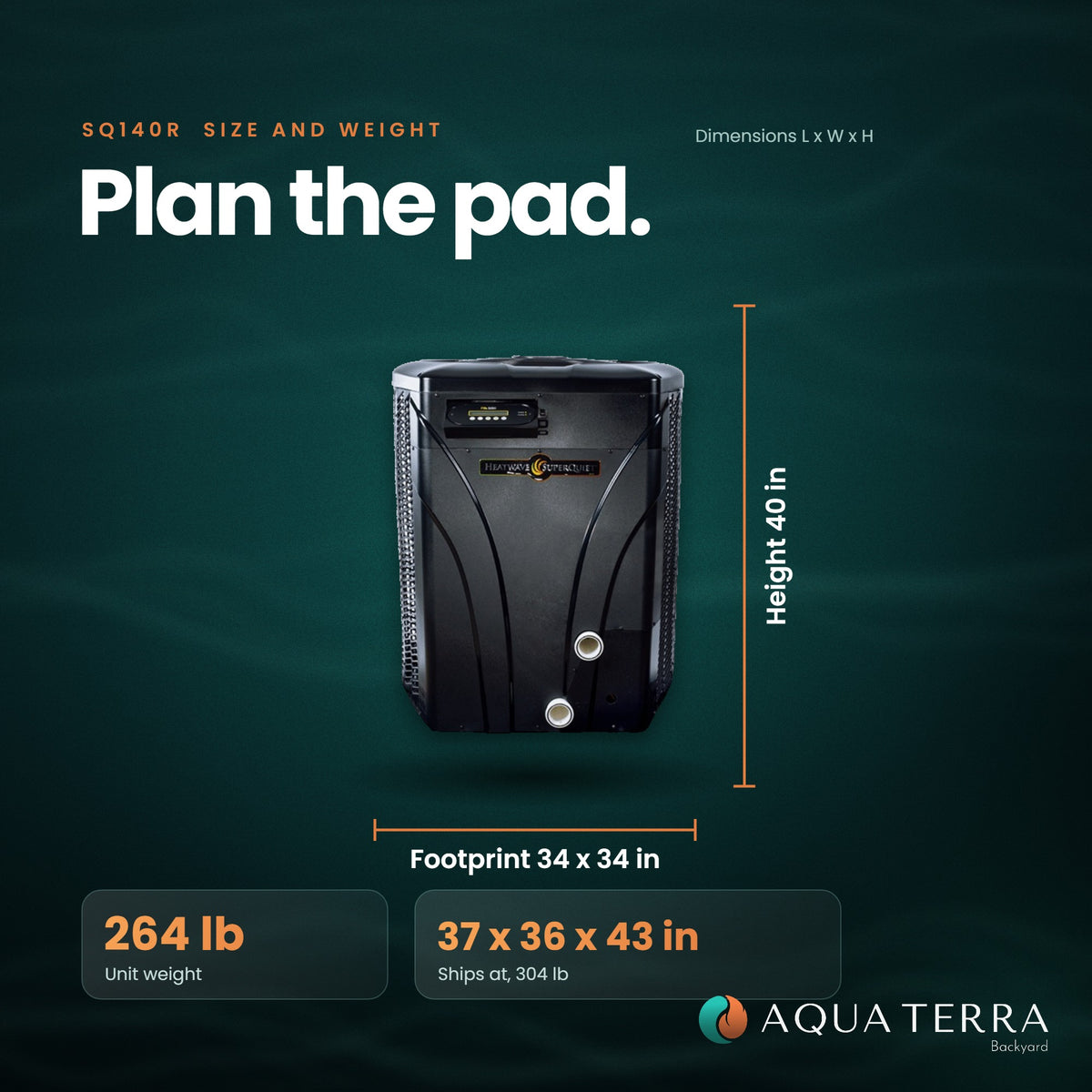

| Dimensions, L x W x H | 34 x 34 x 40 in |
| Weight | 264 lb |
| Shipping dimensions | 37 x 36 x 43 in |
| Shipping weight | 304 lb |
| Controls | Embedded PoolSync WiFi |
| Rating standard | AHRI 1160 |
| Warranty | 3 years parts and labor, limited parts years 4 and 5, ThermoLink titanium tubing for life |
Installation and what is included
The heat pump goes on its own dedicated circuit, sized from the ampacity and fuse figures in the specifications. A licensed electrician should make the connection.
Plumb it for 30 to 70 GPM. Above the maximum, AquaCal requires a heater bypass, and we will match one to your plumbing.
Built in PoolSync WiFi connects it to the PoolSync app once it is installed.
Shipping and returns
In stock orders are processed and shipped within 1 to 2 business days. Heat pumps travel by freight carrier and freight deliveries are made curbside.
Inspect the shipment before you sign for it. Signing without noting visible damage counts as accepting it in good condition. Report concealed damage within 48 hours and keep the packaging.
Return requests must be submitted within 21 calendar days from delivery, and every return needs prior written authorization from Aqua Terra Backyard.
Common questions
Will it heat the pool when the air is cool?
Yes, with less output as the air cools. AquaCal rates the SQ140R at 72,000 BTU with 50 degree air, 80 degree water and 63 percent humidity.
Can it cool the pool?
Yes. Every AquaCal heat pump heats and cools.
Do I need an electrician?
Yes. It runs on 230V single phase power on a dedicated circuit, and a licensed electrician should make the connection.
