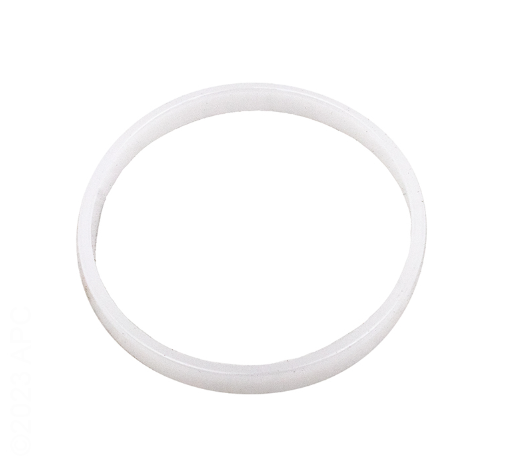

Zodiac W81600 Diaphragm Retaining Ring
Replacement diaphragm retaining ring designed for select Zodiac and Baracuda suction-side pool cleaners. The W81600 helps secure the cleaner's diaphragm within the cassette assembly for proper positioning and operation.
Product Highlights
Direct Replacement Part
Designed as replacement part number W81600 for compatible Zodiac and Baracuda pool cleaner assemblies.
Secures the Diaphragm
Fits within the cleaner's cassette assembly and helps keep the diaphragm correctly positioned during operation.
Multiple Cleaner Applications
Used on multiple Baracuda suction cleaner families, including select in-ground and above-ground models.
Compatible Zodiac & Baracuda Pool Cleaners
| Cleaner Model | Application | W81600 Fitment |
|---|---|---|
| Baracuda G2 | In-Ground Suction Cleaner | Compatible |
| Baracuda G3 | In-Ground Suction Cleaner | Compatible |
| Baracuda G4 | Suction Cleaner | Compatible |
| Zodiac Ranger | Above-Ground Suction Cleaner | Compatible |
| Zodiac Wahoo | Above-Ground Suction Cleaner | Compatible |
| Baracuda 1500 | Above-Ground Suction Cleaner | Compatible |
| Zodiac Zoom | Suction Cleaner | Compatible |
Specifications
| Manufacturer | Zodiac / Baracuda |
|---|---|
| Manufacturer Part Number | W81600 |
| Part Type | Diaphragm Retaining Ring |
| Equipment Type | Suction-Side Pool Cleaner |
| Application | Select in-ground and above-ground Zodiac / Baracuda cleaners |
| Quantity | 1 Retaining Ring |
Retaining Ring vs. Diaphragm
| W81600 | Diaphragm Retaining Ring |
|---|---|
| W81710 | Above-Ground Cassette Diaphragm used on applicable cleaner models |
| W74000 | Compression Ring used on applicable cleaner models |
Frequently Asked Questions
What is the Zodiac W81600 used for?
The W81600 is the diaphragm retaining ring used inside the cassette assembly of compatible Zodiac and Baracuda suction-side pool cleaners. It helps retain the diaphragm in the correct position.
Can W81600 be used on an in-ground Zodiac pool cleaner?
Yes. W81600 is used on compatible in-ground cleaners including the Baracuda G2 and G3, in addition to several above-ground cleaner models. Compatibility is based on the cleaner model, not solely on the type of pool.
Does W81600 include the diaphragm?
No. W81600 is the retaining ring only. The diaphragm is a separate component and should be ordered separately when replacement is required.
Is W81600 the same thing as a gasket?
No. W81600 is specifically identified as a diaphragm retaining ring. If you are looking for another seal, gasket, compression ring, or diaphragm, confirm the cleaner model before ordering.
Does W81600 fit the Zodiac Ranger?
Yes. W81600 is the diaphragm retaining ring shown in the Zodiac Ranger cleaner assembly.
How do I make sure W81600 fits my cleaner?
Check the model name or model number on your Zodiac or Baracuda pool cleaner and compare it with the compatibility information above. If you are unsure, contact Aqua Terra Backyard with your cleaner model before ordering.
Need Help Confirming Fitment?
Pool cleaner parts can look very similar between models. If you are unsure whether Zodiac W81600 is correct for your cleaner, contact Aqua Terra Backyard with your cleaner model or existing part number and our team can help verify compatibility before you order.
