Waterway Plastics

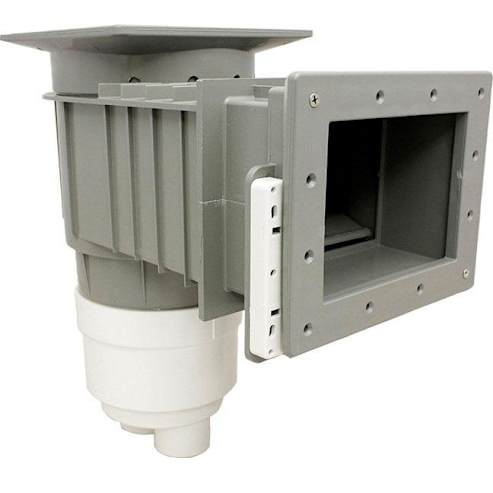

Waterway 540-8407 Renegade In-Ground Pool Skimmer, 2 Inch Socket, Gray
Waterway 540-8407 Renegade In-Ground Pool Skimmer, 2 Inch Socket, Gray
The Waterway 540-8407 Renegade In-Ground Pool Skimmer is a gray, standard-throat skimmer designed for vinyl liner in-ground swimming pools. It features 2-inch socket plumbing connections and a square lid for a clean, finished installation.
This skimmer is a color alternative to the white Waterway 540-8400. Both models use the same standard-throat design and 2-inch socket configuration, with the primary difference being the gray exterior color.
Waterway 540-8407 Features
- Designed for vinyl liner in-ground swimming pools
- Standard-throat skimmer configuration
- Gray finish
- 2-inch socket plumbing connections
- 2-1/2-inch spigot outside connection
- Square skimmer lid
- Large locking skimmer basket design
- Spring-loaded weir door for easier access and replacement
- PVC socket connections designed for secure glue joints
Standard-Throat Renegade Skimmer
The Waterway Renegade skimmer is designed to remove floating leaves, insects, and surface debris before they reach the pool pump and filter. Its standard-throat opening makes it suitable for installations where a wide-mouth extension is not required.
The large skimmer basket locks into position to help prevent movement during operation. The spring-loaded weir door allows water and debris to enter the skimmer while helping prevent collected material from floating back into the pool when circulation stops.
2-Inch Socket Plumbing Connection
The Waterway 540-8407 uses 2-inch socket plumbing connections. The connection can also function as a 2-1/2-inch spigot, providing installers with additional plumbing flexibility when designing or replacing an in-ground pool circulation system.
Always confirm the plumbing size, skimmer opening, faceplate pattern, and pool wall construction before installation.
| Specification | Details |
|---|---|
| Manufacturer | Waterway Plastics |
| Part Number | 540-8407 |
| Product Line | Renegade |
| Product Type | In-ground pool skimmer |
| Pool Type | Vinyl liner in-ground pool |
| Throat Style | Standard throat |
| Connection Size | 2-inch socket or 2-1/2-inch spigot |
| Color | Gray |
| Lid Style | Square |
Waterway 540-8407 Compatibility
The 540-8407 is designed for vinyl liner in-ground pool installations requiring a standard-throat skimmer with 2-inch socket plumbing. It is the gray-color counterpart to the white Waterway 540-8400.
Although the two models share the same general configuration, always verify the required skimmer opening, screw pattern, plumbing location, and available installation space before replacing an existing skimmer.
Frequently Asked Questions
What is the difference between Waterway 540-8407 and 540-8400?
The primary difference is color. The 540-8407 is gray, while the 540-8400 is white. Both are standard-throat Renegade vinyl liner skimmers with 2-inch socket connections.
Is the Waterway 540-8407 a wide-mouth skimmer?
No. The 540-8407 uses a standard-throat opening. Waterway wide-mouth Renegade skimmers use different part numbers and extended throat dimensions.
What size plumbing connection does this skimmer use?
The skimmer uses a 2-inch socket connection. The outside of the connection can also be used as a 2-1/2-inch spigot where appropriate.
Can this replace any in-ground pool skimmer?
No. Skimmer openings, faceplates, screw patterns, and plumbing locations can vary between manufacturers and models. Confirm the dimensions and installation requirements before ordering.
Installation reminder: Replacing an installed pool skimmer may require access behind the pool wall, plumbing modifications, and proper sealing around the liner and faceplate. Professional installation is recommended when fitment or plumbing requirements are uncertain.
