SwimSense
SwimSense AquaColors Color LED Pool Light, 4", for Gunite Pools
SwimSense AquaColors Color LED Pool Light, 4", for Gunite Pools
Powerful color lighting for concrete and gunite pools

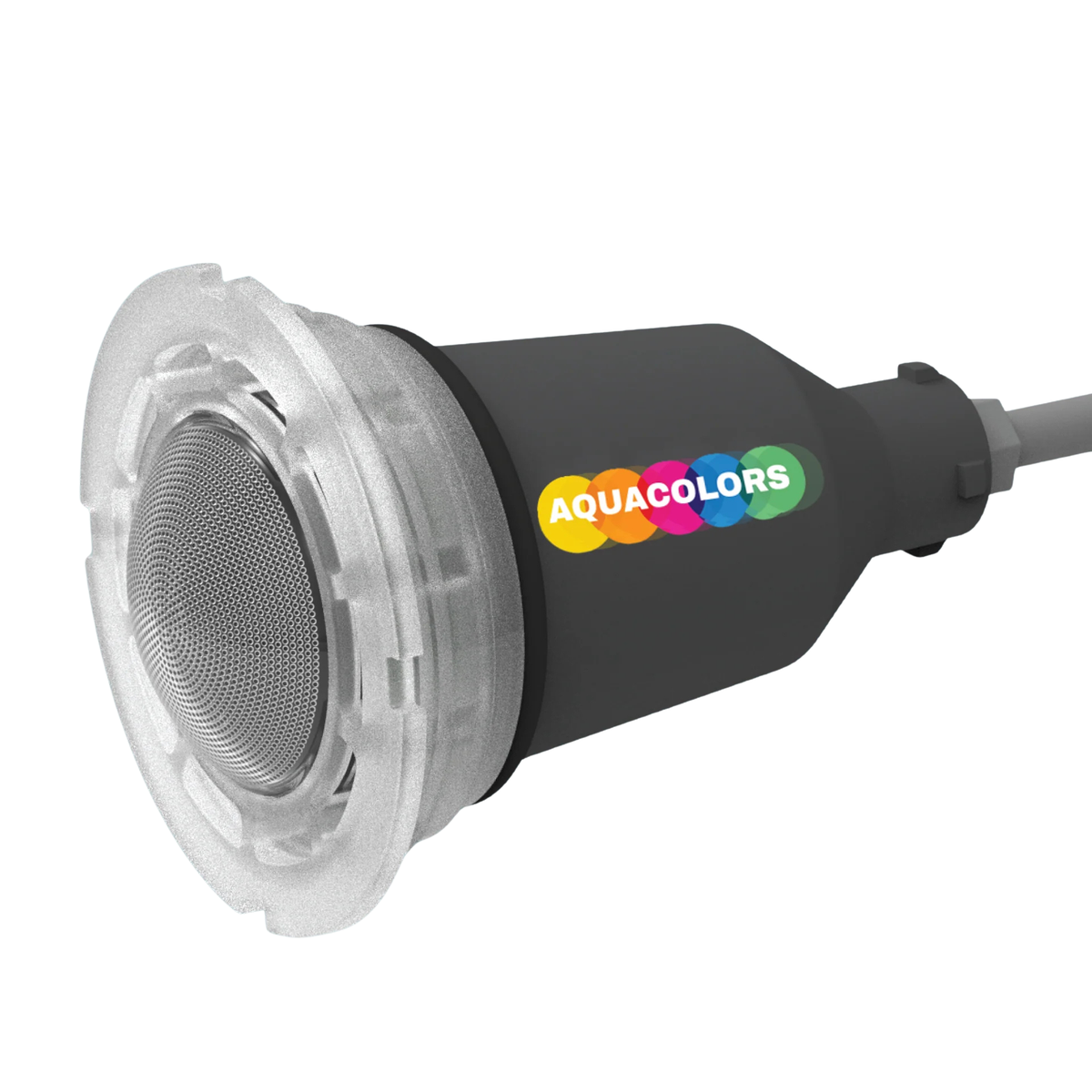

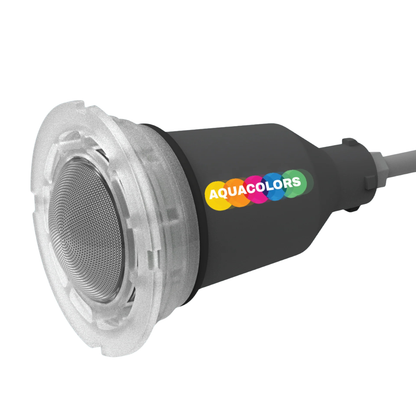

SwimSense AquaColors 4" Color LED Pool Light Complete for Gunite Pools
The SwimSense AquaColors 4" Color LED Pool Light Complete for Gunite Pools combines powerful color output, broad pool coverage and a heavy-duty mounting system designed specifically for concrete and gunite pool construction.
With 2,300 lumens of LED output, coverage of up to 900 square feet, multiple control mode options and your choice of a 100 ft or 150 ft cable, AquaColors delivers bright, evenly distributed illumination that transforms the pool after sunset.
Quick Fit Check: This listing is for the 4-inch gunite version of the SwimSense AquaColors pool light. Select the control mode that matches your existing lighting setup, then choose either a 100 ft or 150 ft cable.
Built Specifically for Gunite and Concrete Pools
This AquaColors configuration includes the gunite-specific niche assembly. Its heavy-duty body is designed to be embedded securely in concrete during pool construction and built to perform under demanding plaster applications.
The assembly includes a red plaster cover for use during construction, a 4-inch pipe and reducer, and compatibility with standard 1.5-inch conduit fittings.
Gunite Application Highlights
- Configured for concrete and gunite pool construction
- Heavy-duty niche body designed to embed securely in concrete
- Includes a red plaster cover for use during pool construction
- Compatible with standard 1.5-inch conduit fittings
- Includes a 4-inch pipe and reducer
- Designed for long-term performance under plaster applications
Powerful, Even Illumination
The AquaColors 4" pool light produces 2,300 lumens of LED output and is designed to illuminate up to 900 square feet. Its lenticular lens and balanced beam geometry help spread light across the pool floor and walls instead of concentrating the output into a narrow hotspot.
This broad, even beam helps create consistent color throughout the pool, giving the water a brighter and more immersive appearance after sunset.
Fixed Colors and Color Shows
AquaColors offers fixed colors and dynamic color shows. The available colors and show sequences vary according to the selected P-Style, J-Style or H-Style operating mode.
Choose the mode that corresponds with your existing pool lighting control setup so the AquaColors light operates using the expected color selections and sequencing.
Engineered to Control Heat
Excess heat can shorten the life and reduce the output of an LED pool light. AquaColors uses a solid marine-grade stainless steel heatsink core for corrosion resistance, thermal conductivity and long-term durability.
A precision-machined cooling groove in the rear housing guides cooler pool water upward across the heatsink as the light operates. This passive circulation creates a natural chimney effect that helps move heat away from the LED core without relying on moving parts.
Marine-Grade Heatsink
Solid stainless steel construction supports corrosion resistance and efficient heat transfer.
Cooling Groove Design
The rear housing creates a controlled water-flow path across the heatsink surface.
Lower Operating Temperature
SwimSense states the design can reduce LED operating temperature by up to 40% compared with standard sealed polymer housings.
Built for Lasting Brightness
AquaColors is designed to maintain more than 90% of its luminous performance after 30,000 hours. Its thermal design, corrosion-resistant materials and efficient LED core work together to support consistent light output over time.
Key Features
- Complete 4-inch color LED pool light for gunite and concrete pool applications
- 2,300 lumens of LED output
- Up to 900 square feet of coverage
- Fixed colors and color shows based on the selected operating mode
- Available in P-Style, J-Style and H-Style configurations
- Available with a 100 ft or 150 ft cable
- Heavy-duty gunite niche designed to embed in concrete
- Includes red plaster cover, 4-inch pipe and reducer
- Compatible with standard 1.5-inch conduit fittings
- Marine-grade stainless steel heatsink core
- Patented cooling groove design
- Passive water circulation helps reduce LED operating temperature
- Balanced beam geometry supports even light distribution
- Maintains more than 90% luminous performance after 30,000 hours
- Designed to synchronize with compatible industry-standard control equipment
Choose the Correct Version
This listing contains six possible configurations. Select the operating mode that matches your existing lighting control style, then select the cable length required for the installation.
| Selection | Available Options | What to Check |
|---|---|---|
| Compatibility Mode | J-Style, H-Style or P-Style | Match the mode to your existing controller or lighting setup |
| Cable Length | 100 ft or 150 ft | Choose the length required to reach the power and control equipment |
| Pool Application | Concrete or gunite pool | This listing is not the fiberglass or vinyl configuration |
Aqua Terra Backyard Tip: Pool lighting configurations vary by pool construction, control style, cable length and existing equipment. If you are not completely sure which AquaColors version you need, contact us before ordering and we will help you narrow down the correct option.
Specifications
| Brand | SwimSense |
| Product Line | AquaColors |
| Product Type | Complete color LED pool light |
| Application | Concrete and gunite pools |
| Light Size | 4 inch |
| Light Output | 2,300 lumens |
| Coverage | Up to 900 sq. ft. |
| Mode Options | P-Style, J-Style or H-Style |
| Cable Options | 100 ft or 150 ft |
| Niche Type | Gunite niche |
| Included Construction Components | Red plaster cover, 4-inch pipe and reducer |
| Conduit Compatibility | Standard 1.5-inch conduit fittings |
| Heatsink Material | Marine-grade stainless steel |
