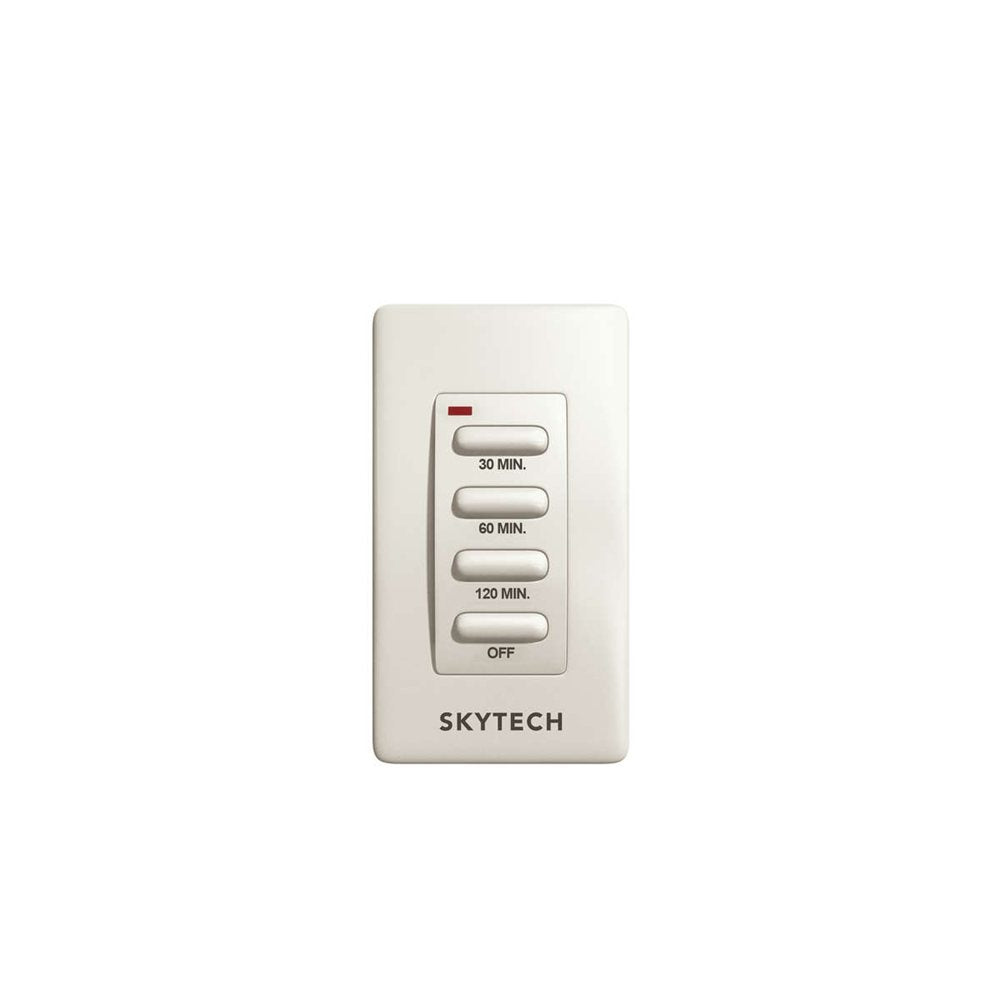

Skytech Wired Wall Mount Timer, 30, 60 & 120 Minute Fireplace Timer | TM-3

Skytech Wired Wall Mount Timer, 30, 60 & 120 Minute Fireplace Timer | TM-3

$140.00
$168.00 $140.00
Sale Sold out
Shipping calculated at checkout.
Skytech Wired Wall Mount Timer, 30, 60 & 120 Minute Fireplace Timer | TM-3
View full details

The Skytech TM-3 is a battery operated wired wall timer with 30, 60 and 120 minute buttons and an OFF button. It replaces a manual on/off wall switch, mounts on a standard single-gang box, and works with millivolt and electronic ignition appliances.

Single-gang mountReplaces an on/off wall switch
30, 60, 120 minThen shuts off on its own
2 x CR20323 volt cells, included
Millivolt or electronicDry contact output

Details

ModelTM-3
TypeWired wall mount timer
Settings30 MIN, 60 MIN, 120 MIN and OFF, with an indicator light
Works withMillivolt and electronic ignition appliances; replaces manual ON/OFF dry contact wall switches
OutputDry contact rated up to 800mV DC or 24VAC
BatteriesTwo 3V CR2032 button cells, included
MountingStandard single-gang junction box, two screws supplied
WiringInstalls with thermostat wire; strip each wire 1/4 inch
In the boxTimer, batteries, hardware bag, instructions
Warranty5 year limited
BrandSkytech
Never connect the timer to house power.Skytech warns not to connect a gas valve or electronic module directly to 110 to 120VAC, and notes that bare or touching wires can turn the appliance on. Have a qualified electrician or gas technician do the install.

Questions people ask us

How does it work?

Press 30 MIN, 60 MIN or 120 MIN and the burner runs for that long, then shuts off on its own. Press OFF to turn it off sooner. A light on the timer confirms each press.

What batteries does it use?

Two 3 volt CR2032 button cells, included. Skytech expects at least a year from them and suggests replacing them annually. If the light is dim or does not come on, check the batteries.

Can it replace my existing wall switch?

That is what it is built for. It replaces a manual on/off dry contact wall switch and mounts on a standard single-gang junction box with the screws supplied.

Will it work with my fireplace?

Skytech rates it for millivolt and electronic ignition appliances, with a dry contact output up to 800mV DC or 24VAC. Send us your fireplace model and we will confirm it before you order.

Goes with this

TM-R-2A Wireless TimerBattery operated, RF WS Wired Wall SwitchSimple on and off TS-3 Wall ThermostatWired, surface mount SkytechRemotes, valves and fans

Manuals and warranty

Skytech manuals and warranty

Warranty terms come from Skytech and depend on the product. Read the manual and the warranty for your model before you order.

Our warranty library· TM-3 instructions (PDF)
Not sure this is the right timer? Send us your fireplace model or a photo of your current wall switch wiring, and we will check it before you order. No obligation either way.
