Skytech Natural Gas Electronic Spark to Pilot Valve Kit, Battery Operated Remote Kit | AFVK-SP
Skytech Natural Gas Electronic Spark to Pilot Valve Kit, Battery Operated Remote Kit | AFVK-SP

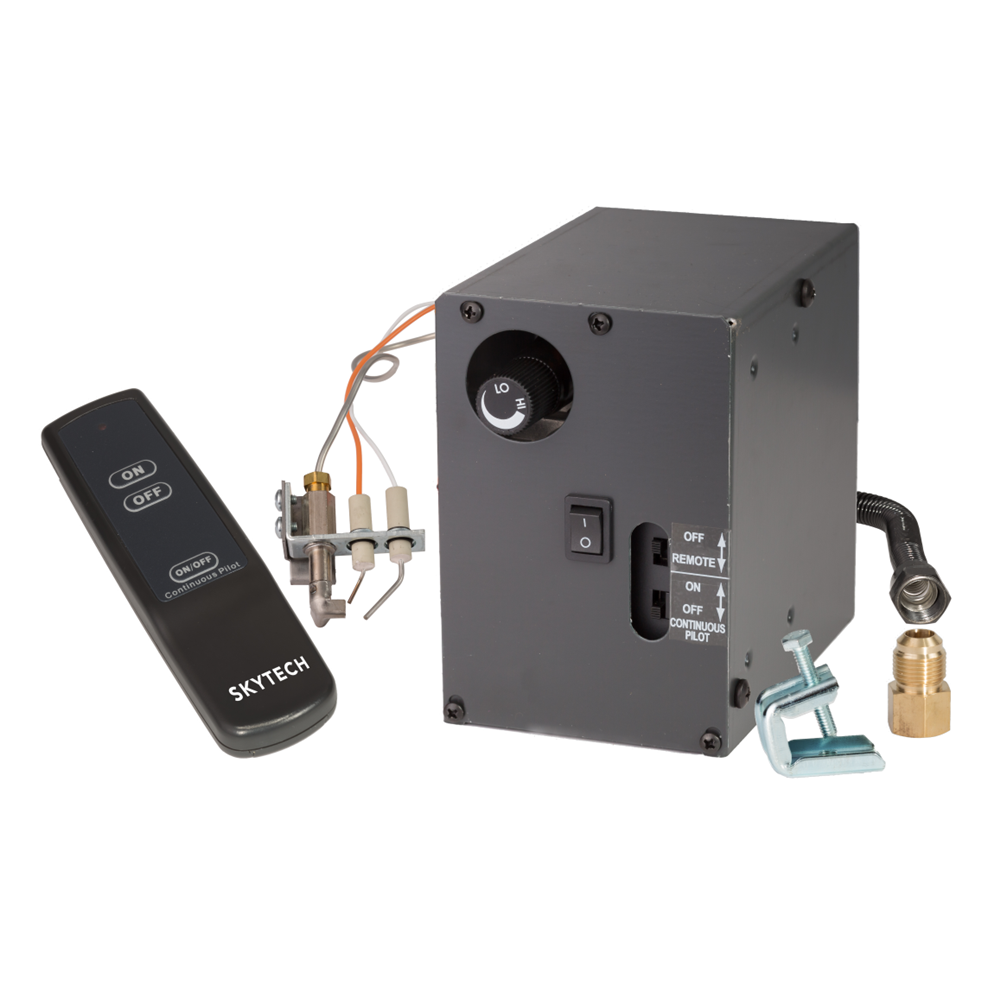

The Skytech AFVK-SP is a natural gas electronic spark to pilot valve kit with an ON/OFF remote, made for vented gas log sets. It lights the pilot electronically on battery power instead of relying on a standing pilot. Skytech rates it for 18 to 30-inch gas log sets up to 120,000 BTUs, with flame height set by a manual knob on the valve box.
Details
| Model | AFVK-SP |
|---|---|
| Type | Electronic spark to pilot (intermittent pilot) valve kit |
| Gas | Natural gas as shipped; propane with an LPK-18 or LPK-24 conversion kit |
| Capacity | Up to 120,000 BTUs, for 18 to 30-inch vented gas log sets |
| Remote | SP1001TX ON/OFF transmitter |
| Flame height | Manual HI/LO knob on the valve box |
| Continuous pilot | Switch on the valve box and remote; pilot turns off after 7 days if the main burner is not lit |
| Power | 4 AA batteries in the battery pack; optional AF-4000ADP24 adapter |
| In the box | Valve kit, SP1001TX transmitter, flex line, damper clamp, 3/8" to 1/2" flare adapter, batteries, instructions |
| Brand | Skytech |
Questions people ask us
Will it work with my gas logs?
It is made for vented gas log sets from 18 to 30 inches, up to 120,000 BTUs. Skytech does not recommend it for see-through fireplaces. Send us the log set details and we will check.
Can I use it on propane?
It ships set up for natural gas. Skytech converts it to propane with the LPK-18 or LPK-24 kit plus the valve regulator change described in the instructions.
Can it run without batteries?
Yes, with the optional AF-4000ADP24 adapter, which steps 120VAC down to 7.5VDC. The battery pack stays connected, and the valve must never be wired directly to 120V.
What does the continuous pilot setting do?
It keeps the pilot lit between uses instead of sparking it each time. If the main burner is not lit within 7 days, the pilot shuts itself off.
Not sure the AFVK-SP suits your fireplace?
Send us the fireplace type, the log set size and the gas type and we will check it before you order. Ask us here.
Goes with this
Manuals and warranty
Warranty terms come from Skytech and depend on the product. Read the manual and the warranty for your model before you order.
