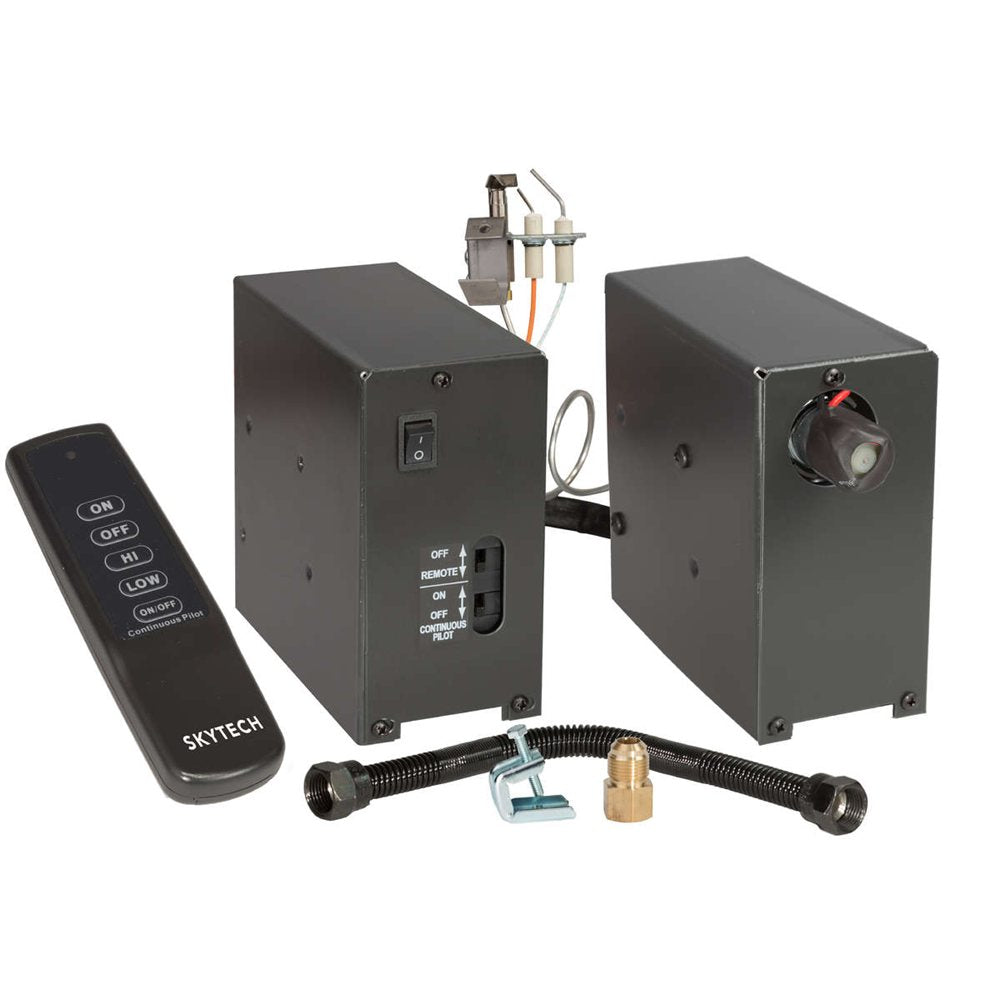

Skytech Spark to Pilot Valve Kit, Variable Flame Remote System | AFVK-SP-MHLSPLIT

Skytech Spark to Pilot Valve Kit, Variable Flame Remote System | AFVK-SP-MHLSPLIT

Regular price $1,079.00
Regular price $1,294.80 Sale price $1,079.00
Sale Sold out
Shipping calculated at checkout.
Skytech Spark to Pilot Valve Kit, Variable Flame Remote System | AFVK-SP-MHLSPLIT
View full details

The Skytech AFVK-SP-MHLSPLIT is an electronic spark to pilot valve kit for vented gas logs, with a split valve box and switch box and a remote that modulates the flame. Press and hold HI or LO on the SP1001H-LTX transmitter to move the flame up or down, and switch to a continuous pilot from the remote or the valve kit when you want one.

Spark to pilotIntermittent or continuous pilot
Hold HI or LOModulates the flame
Battery operated4 x AA battery pack
18" to 30" setsVented gas logs

Details

ModelAFVK-SP-MHLSPLIT
TypeElectronic safety pilot system with separate valve box and switch box
UseVented gas log sets, 18 to 30 inch; not recommended for see through fireplaces
GasNatural gas; propane with the LPK-18 or LPK-24 conversion kit
ValveDC motor drive valve, regulator set at 3.5" WC natural gas and 10.5" WC propane
IgnitionIntermittent pilot ignition with a continuous pilot option; pilot assembly with 60 inch leads
ControlsAF-4000MOD-1 module with built-in receiver; SP1001H-LTX transmitter with ON, OFF, HI, LO and continuous pilot
PowerAF-4000BP battery pack with 4 x AA; optional AF-4000ADP24 adapter
Valve kit size2-3/4" W x 5-3/4" D x 5-3/4" H
In the boxValve kit, SP1001H-LTX transmitter, flex line, damper clamp, 3/8" to 1/2" flare adapter, batteries, instructions
BrandSkytech
Have a qualified installer connect and leak test the gas.Skytech requires the glass doors and flue damper fully open while it runs, and the high temperature wire harness, ignition wires and pilot tubing kept out from under and in front of the burner pan. Keep both boxes at least 2 inches from the grate.

Questions people ask us

What does split mean on this kit?

The gas valve and the electronics sit in two boxes. The valve box goes in the left front corner of the firebox, and the switch box, with the module and battery pack, goes in the right front corner. A 392°F rated wire harness joins them.

How does the flame adjustment work?

Press and hold HI to raise the flame or LO to lower it, and let go where you like it. ON, OFF and continuous pilot are on the transmitter as well.

Does it need power from the wall?

No. It runs on a battery pack with four AA batteries in the switch box. An optional AF-4000ADP24 adapter is available, and Skytech warns never to connect 110 volt power directly to the kit.

Can it run on propane?

It ships for natural gas. Skytech converts it with the LPK-18 or LPK-24 kit, and the valve regulator has a propane setting of 10.5" WC.

Will it fit my fireplace?

It is made for vented gas log sets from 18 to 30 inches and is not recommended for see through fireplaces. Send us the fireplace and log set details and we will check.

Goes with this

Manuals and warranty

Skytech manuals and warranty

Warranty terms come from Skytech and depend on the product. Read the manual and the warranty for your model before you order.

Our warranty library· AFVK-SP SPLIT kit instructions (PDF)
Not sure this is the right valve kit? Send us your fireplace type, log set size and gas type, and we will check the kit before you order. No obligation either way.
