Raypak Above Ground P-R156A-EN-C #0-4999 150k BTU Natural Gas Copper Pool Heater

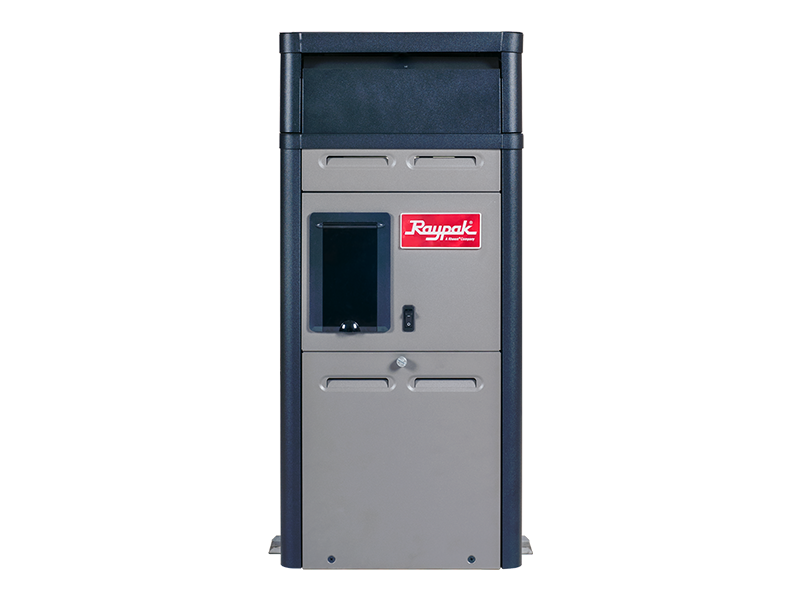

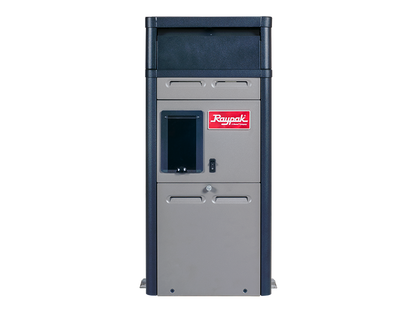

Raypak P-R156A-EN-C #0-4999 150,000 BTU Natural Gas Copper Heater

The Raypak P-R156A-EN-C #0-4999 is a 150,000 BTU natural gas pool and spa heater designed for above-ground and smaller in-ground pools at elevations up to 4,999 feet. Offering increased heating capacity over the 106A series, this model delivers faster heat-up times and more consistent temperature control for larger residential applications.

Built with a copper fin tube heat exchanger and a corrosion-resistant cabinet, the 156A is designed for efficient heat transfer and long-term durability. It is engineered to handle both above-ground and select in-ground pool systems with dependable performance. :contentReference[oaicite:1]{index=1}

Increased Heating Power with Digital Control Precision

The 156A series features a digital control panel with a microprocessor-based thermostat for accurate temperature adjustment and monitoring. The electronic ignition system ensures reliable startup without a standing pilot, improving efficiency and ease of use.

The built-in automatic bypass helps regulate water flow and reduce condensation, extending the lifespan of the heat exchanger and improving overall performance.

Key Features

• 150,000 BTU heating capacity for medium-sized pools and spas
• Natural gas operation for consistent performance
• Designed for elevations up to 4,999 ft
• Copper fin tube heat exchanger for efficient heating
• Digital control panel with precise temperature adjustment
• Electronic ignition system with no standing pilot
• Automatic bypass for proper water flow regulation
• Polymer headers for corrosion resistance
• Compact and durable cabinet design
• Suitable for above-ground and smaller in-ground pools
