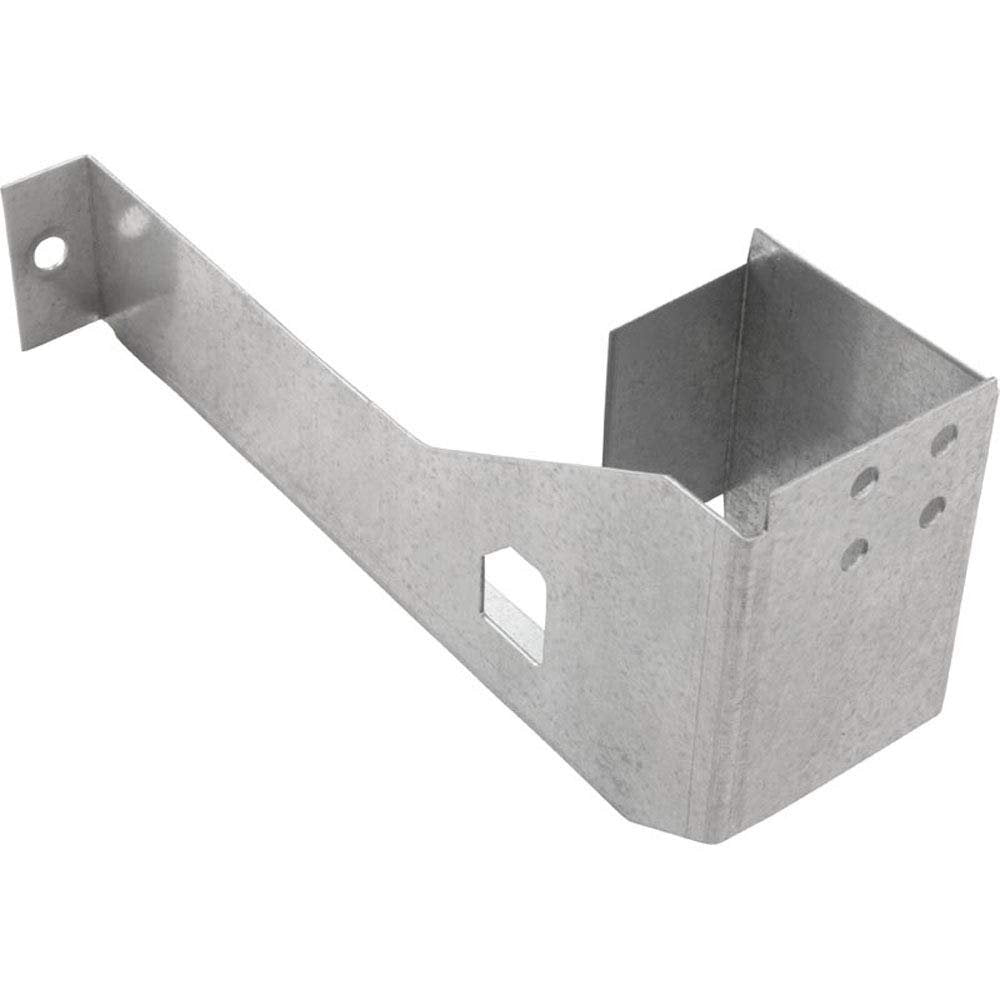

Raypak 306692 Pilot Mounting Bracket for IID Series V Heaters
Raypak 306692 Pilot Mounting Bracket for IID Series V Heaters
Raypak 306692 Pilot Mounting Bracket for IID Series V Heaters
If the pilot flame is out of position, ignition has become inconsistent, or the pilot assembly feels loose during service, the mounting bracket may be the actual issue. A pilot that is not held in the correct location can cause weak ignition, delayed light-off, or repeated startup problems.
This pilot mounting bracket secures the pilot assembly in the correct location on compatible IID Series V heaters. When the bracket is bent, heat-damaged, or missing, the pilot flame may no longer align where it should. Replacing it restores the positioning hardware that helps the ignition system work the way Raypak intended.
- Pilot assembly is loose or visibly out of position
- Ignition problems continue despite replacing other pilot components
- Bracket is bent, damaged, or missing during inspection
- Pilot flame is not aligned correctly during startup
What this part does: It holds the pilot assembly in the correct mounted position for proper IID ignition operation.
Compatibility: Designed for Raypak IID Series V heaters. Confirm with your model number before ordering.
- Part Number: 306692
- Type: Pilot mounting bracket
- Application: IID Series V heaters
OEM Value: A genuine Raypak bracket helps preserve the intended pilot location and mounting fit. Small alignment parts matter because ignition reliability depends on the pilot sitting where the heater was designed to fire.
