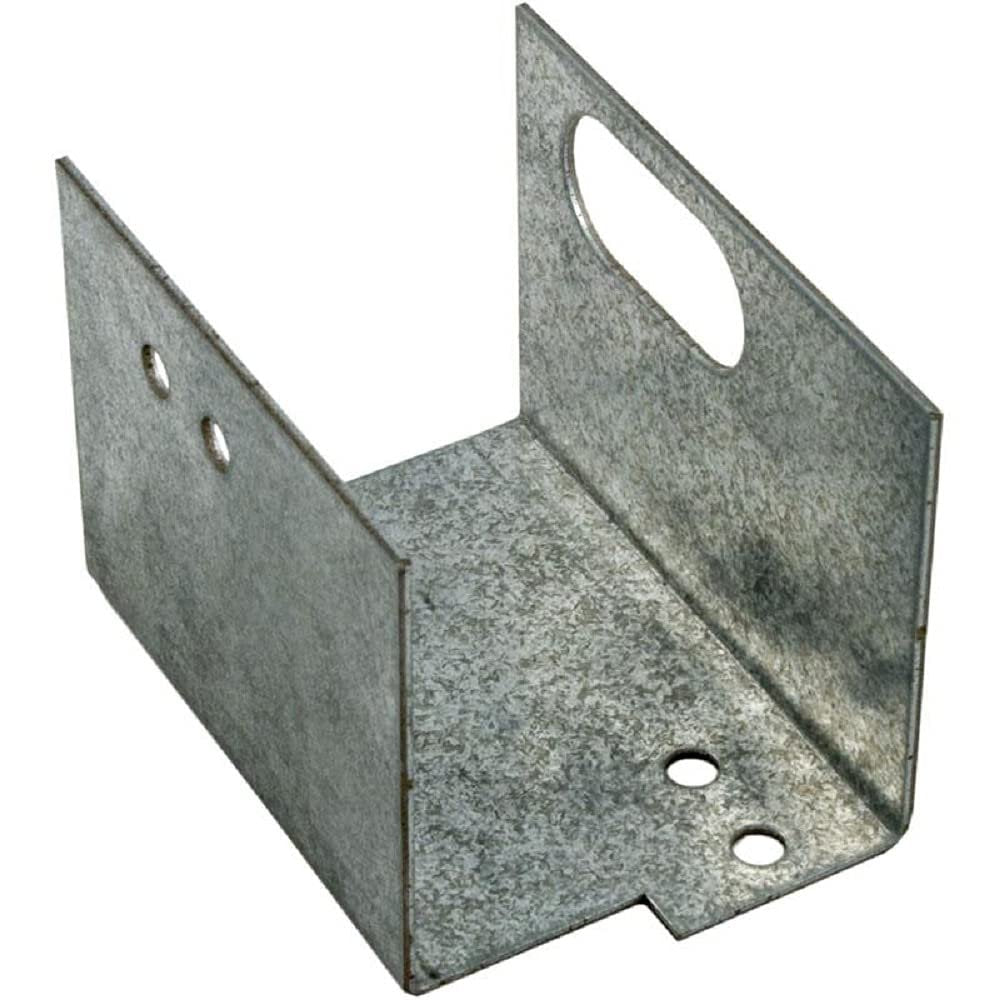

Raypak 305160F IID Pilot Mounting Bracket Replacement
Raypak 305160F IID Pilot Mounting Bracket Replacement
Raypak 305160F IID Pilot Mounting Bracket Replacement
If the pilot flame is out of position, ignition has become inconsistent, or the pilot assembly feels loose during service, the mounting bracket may be the actual failure point. A pilot that is not held in the correct position can cause weak ignition, delayed light-off, or repeat startup problems.
This IID pilot mounting bracket secures the pilot assembly in the correct location on compatible heaters using IID ignition. When the bracket is bent, heat-damaged, or missing, the pilot flame may no longer align where it should. Replacing it restores the positioning hardware that helps the ignition system work the way Raypak designed it.
- Pilot assembly is loose or visibly out of position
- Ignition problems continue despite replacing other pilot components
- Bracket is bent, damaged, or missing during inspection
- Pilot flame is not aligned correctly during startup
What this part does: It holds the pilot assembly in the correct mounted position for proper IID ignition operation.
Compatibility: Used on select Raypak IID heaters. Confirm with your model number before ordering.
- Part Number: 305160F
- Type: Pilot mounting bracket
- Application: IID ignition systems
OEM Value: A genuine Raypak bracket helps preserve the intended pilot location and mounting fit. Small alignment parts matter because ignition reliability depends on the pilot sitting where the heater was designed to fire.
