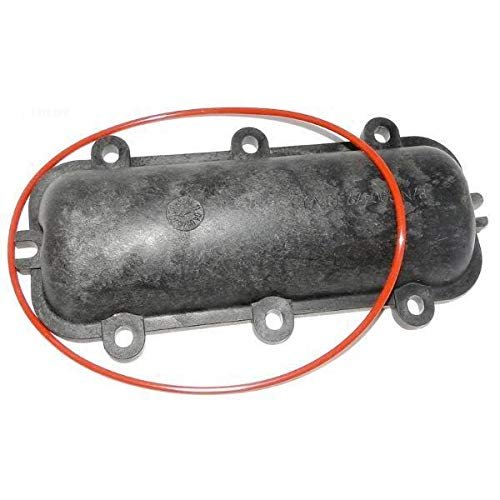

Raypak 011596F Return Header Assembly for Model 130A Heaters
Raypak 011596F Return Header Assembly for Model 130A Heaters
Raypak 011596F Return Header Assembly for Model 130A Heaters
If your 130A heater is leaking from the return side, showing corrosion around the header, or losing integrity where heated water exits the exchanger, the return header assembly is one of the first water-side components to inspect. Header damage can create pressure loss, external leaks, and unstable flow through the heater.
This return header assembly collects heated water as it leaves the exchanger and directs it back into the plumbing path on compatible Model 130A heaters. When the header assembly cracks, corrodes, or no longer seals correctly, the heater can leak and lose water-side stability. Replacing it restores the return-side water routing section as a complete assembly.
- Water leak develops at the return side of the heater
- Header assembly shows corrosion, cracking, or worn sealing surfaces
- Pressure loss appears around the exchanger outlet area
- Need to fix a Raypak heater with return-side header failure
What this part does: It routes heated water out of the exchanger and back into the plumbing system.
Compatibility: Designed for Raypak Model 130A heaters. Confirm with your model number before ordering.
- Part Number: 011596F
- Type: Return header assembly
- Application: Model 130A heaters
OEM Value: A genuine Raypak return header assembly helps maintain the intended fit, flow path, and sealing surfaces on the water side of the heater. Header repairs work better when the replacement matches the original exchanger layout.
