Raypak 010394F Burner Tray Assembly for R406A Pool Heaters
Raypak 010394F Burner Tray Assembly for R406A Pool Heaters
Raypak 010394F Burner Tray Assembly for R406A Pool Heaters
If your R406A heater is lighting unevenly, showing rough startup, or the burner section looks rusted and tired, the burner tray assembly is one of the first combustion-side parts to inspect. A compromised tray can throw off burner position and flame carryover even when the rest of the ignition system is doing its job.

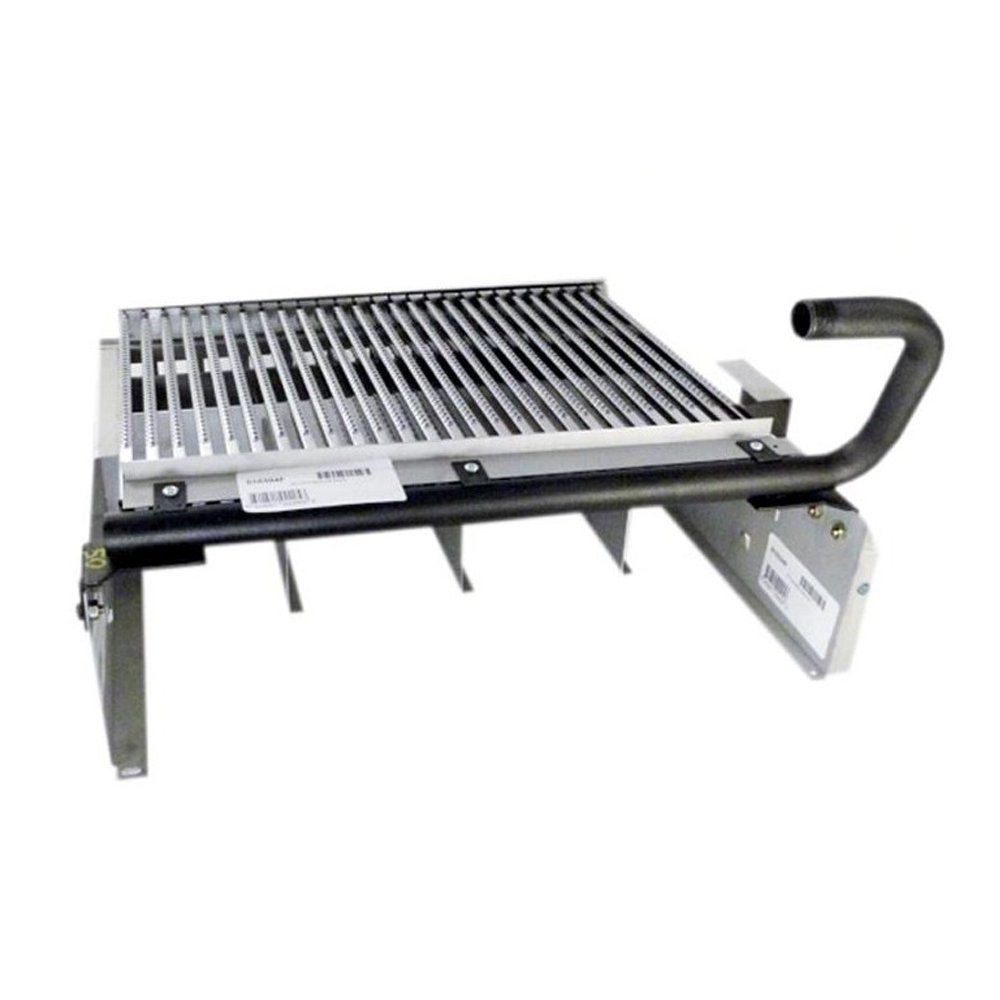

This burner tray with burners supports the burner section and maintains its layout inside the heater. It helps keep combustion stable by holding the burner area in the correct position for ignition and flame travel. On natural gas units, this assembly is a direct replacement for the burner section. If you are working on propane, confirm the correct orifice configuration before ordering.
- Uneven flame pattern across the burner row
- Delayed ignition or rough combustion on startup
- Tray corrosion or structural deterioration during inspection
- Raypak heater troubleshooting points to burner-section wear
What this part does: It supports and positions the burner section so the heater can ignite and burn evenly.
Compatibility: Designed for Raypak R406A digital heaters. Comes standard for natural gas configurations. Confirm with your model number before ordering.
- Part Number: 010394F
- Type: Burner tray with burners
- Application: R406A heaters
OEM Value: A genuine Raypak assembly helps preserve burner spacing and tray fit inside the combustion chamber. That matters because uneven burner alignment can create repeat ignition and flame quality problems.
