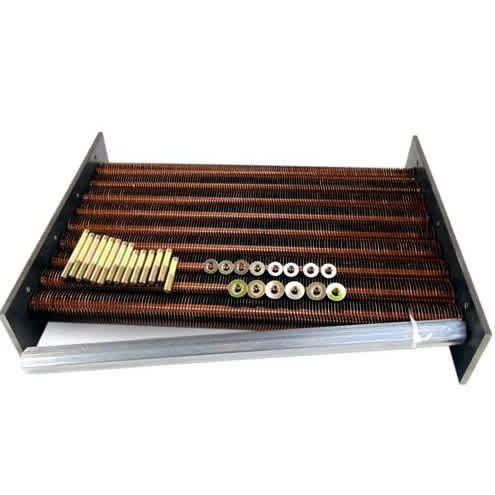

Raypak 010058F Tube Bundle Kit – Models 406 and 407, ASME Material
Raypak 010058F Tube Bundle Kit – Models 406 and 407, ASME Material
Raypak 010058F Tube Bundle Kit – Models 406 and 407, ASME Material
If your heater is losing heating efficiency, leaking internally, or showing clear signs of exchanger wear, the tube bundle is often where the real failure lives. A heater can still fire and sound normal while the internal bundle is scaled, deteriorated, or leaking enough to kill performance.
This tube bundle kit is the internal heat transfer section that carries water through the heater so heat can move from combustion into the system. When the bundle fails, heat transfer drops and leak risk goes up. Replacing it is a major but direct repair when you need to fix a Raypak heater with exchanger-related damage on compatible ASME units.
- Internal water leakage from the exchanger section
- Long heat-up times and reduced heater output
- Scale or corrosion found during teardown
- Raypak heater not working efficiently even though ignition is normal
What this part does: It transfers heat into the circulating water through the internal tube bundle assembly.
Compatibility: Designed for Raypak models 406 and 407, ASME material. Confirm with your model number before ordering.
- Part Number: 010058F
- Type: Tube bundle kit
- Configuration: ASME material
OEM Value: A genuine Raypak tube bundle helps maintain the intended fit at the headers and internal water path. On a repair this involved, correct configuration matters because the wrong bundle can cost you time, labor, and another teardown.
