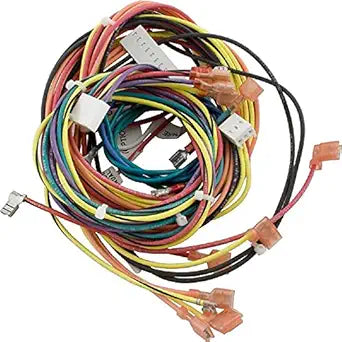

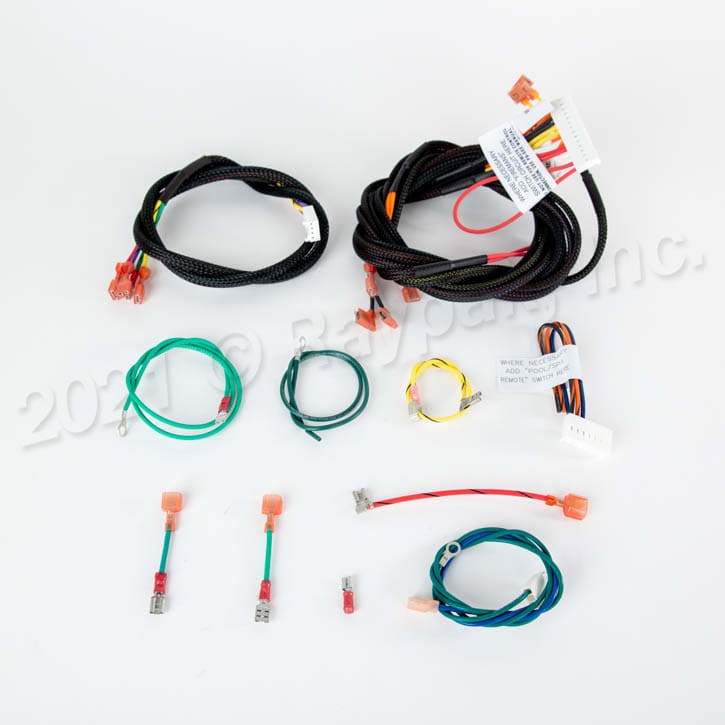

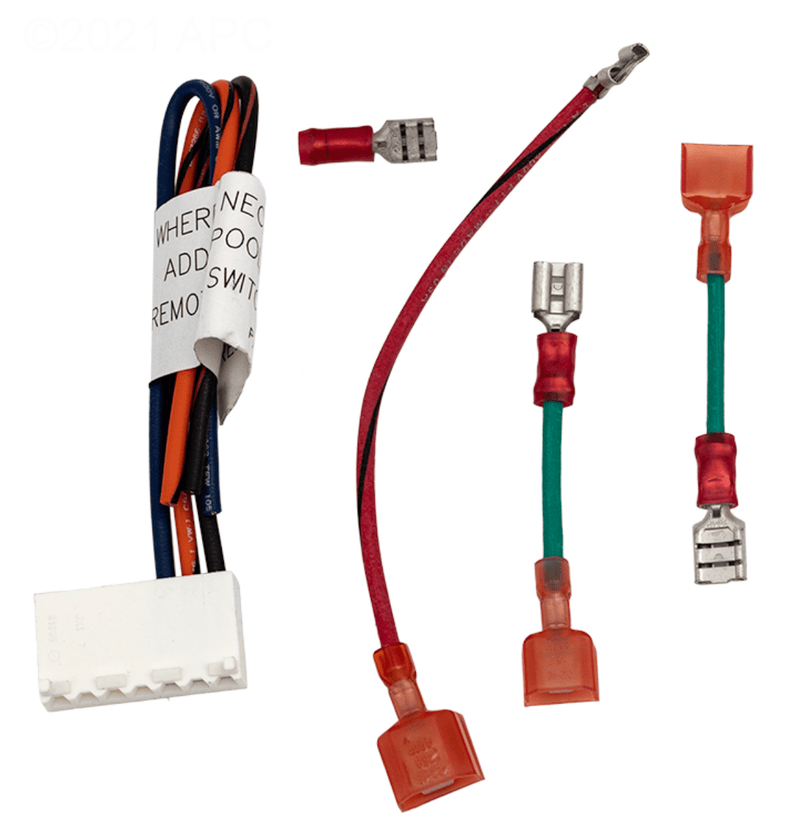

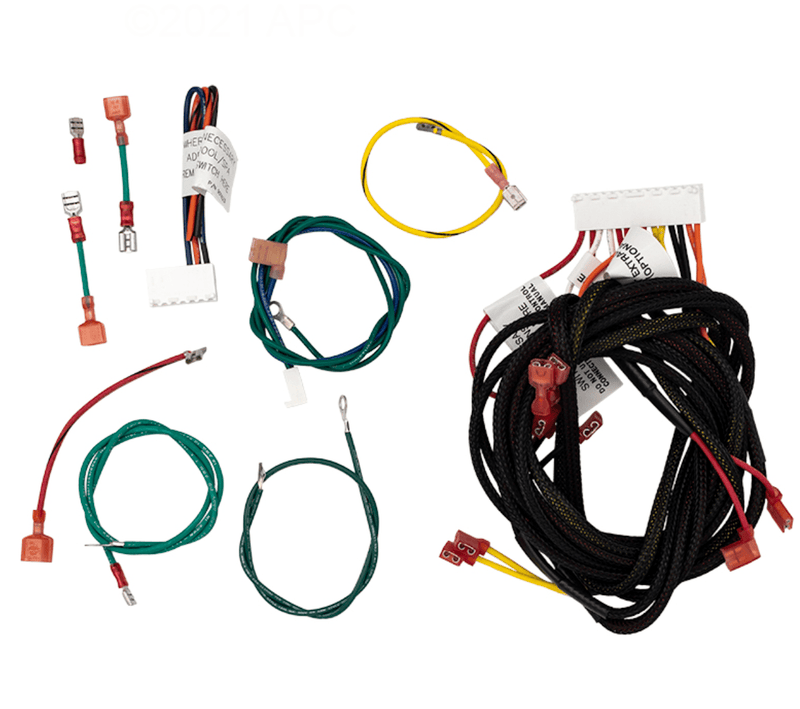

Raypak 009490F Wiring Harness – IID Models 185B to 405B
Raypak 009490F Wiring Harness – IID Models 185B to 405B
Raypak 009490F Wiring Harness – IID Models 185B to 405B
If your Raypak heater is not working and you are seeing intermittent ignition, dead controls, or unexplained communication loss between internal components, a damaged wiring harness is a real possibility. Heat, vibration, rodent damage, and brittle insulation can all cause signal loss that looks like a bad board or failed ignition part.
This wiring harness links the control and ignition components inside compatible IID heaters so power and signal paths stay intact. When connectors loosen, wires burn, or insulation breaks down, the heater can misfire, lock out, or stop responding altogether. Replacing the harness restores the electrical path with the correct connector layout for a cleaner repair.
- Intermittent ignition or no-start condition
- Burned, brittle, or damaged wiring inside the heater
- Loose connectors causing random shutdowns
- Previous repairs left spliced or mismatched wires in place
What this part does: It carries electrical power and control signals between the heater’s compatible IID components.
Compatibility: Designed for Raypak IID models 185B to 405B.
- Part Number: 009490F
- Type: Wiring harness
- Application: IID models 185B to 405B
OEM Value: A genuine Raypak replacement harness helps avoid wiring errors, connector mismatch, and unreliable field splices. That matters when you are trying to fix a Raypak heater with an ignition or control fault that depends on clean signal flow.
