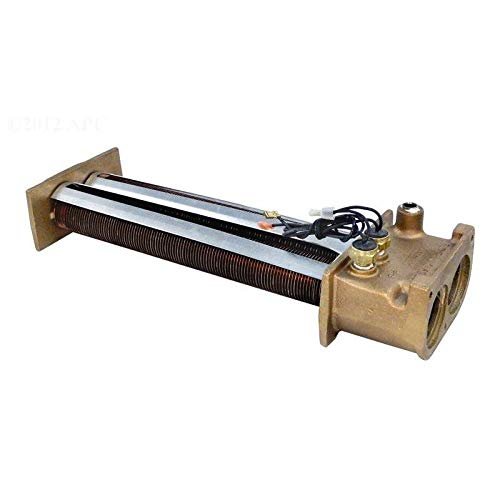

Raypak 004694F Heat Exchanger Assembly with Header
Raypak 004694F Heat Exchanger Assembly with Header
Raypak 004694F Heat Exchanger Assembly with Header
If the heater is firing normally but struggling to heat, or you are dealing with both exchanger failure and header-side leakage at the same time, replacing the full exchanger assembly is often the smarter repair. When both the core heat-transfer section and the attached water routing surfaces are compromised, piecing the job together usually adds more labor than it saves.
This heat exchanger assembly includes the exchanger and header as one matched unit for the specified Raypak application. It handles the job of moving combustion heat into the water while also providing the related water-side header connection. When the original assembly is leaking, scaled, or structurally compromised, replacement restores both major functions together.
- Heater heats poorly because the exchanger section is failing
- Water-side leakage involves both the exchanger and header area
- Major service work confirms damage to the combined assembly
- Need a Raypak replacement part that restores both heat transfer and header fit
What this part does: It combines the heat-transfer exchanger and header connection assembly into one replacement unit.
Compatibility: Used on select Raypak models. Confirm with your model number before ordering.
- Part Number: 004694F
- Type: Heat exchanger assembly
- Includes: Header
OEM Value: A genuine Raypak exchanger assembly helps maintain the intended alignment between the exchanger and header. On a repair this involved, a matched OEM assembly usually saves time and avoids fit issues during reassembly.
