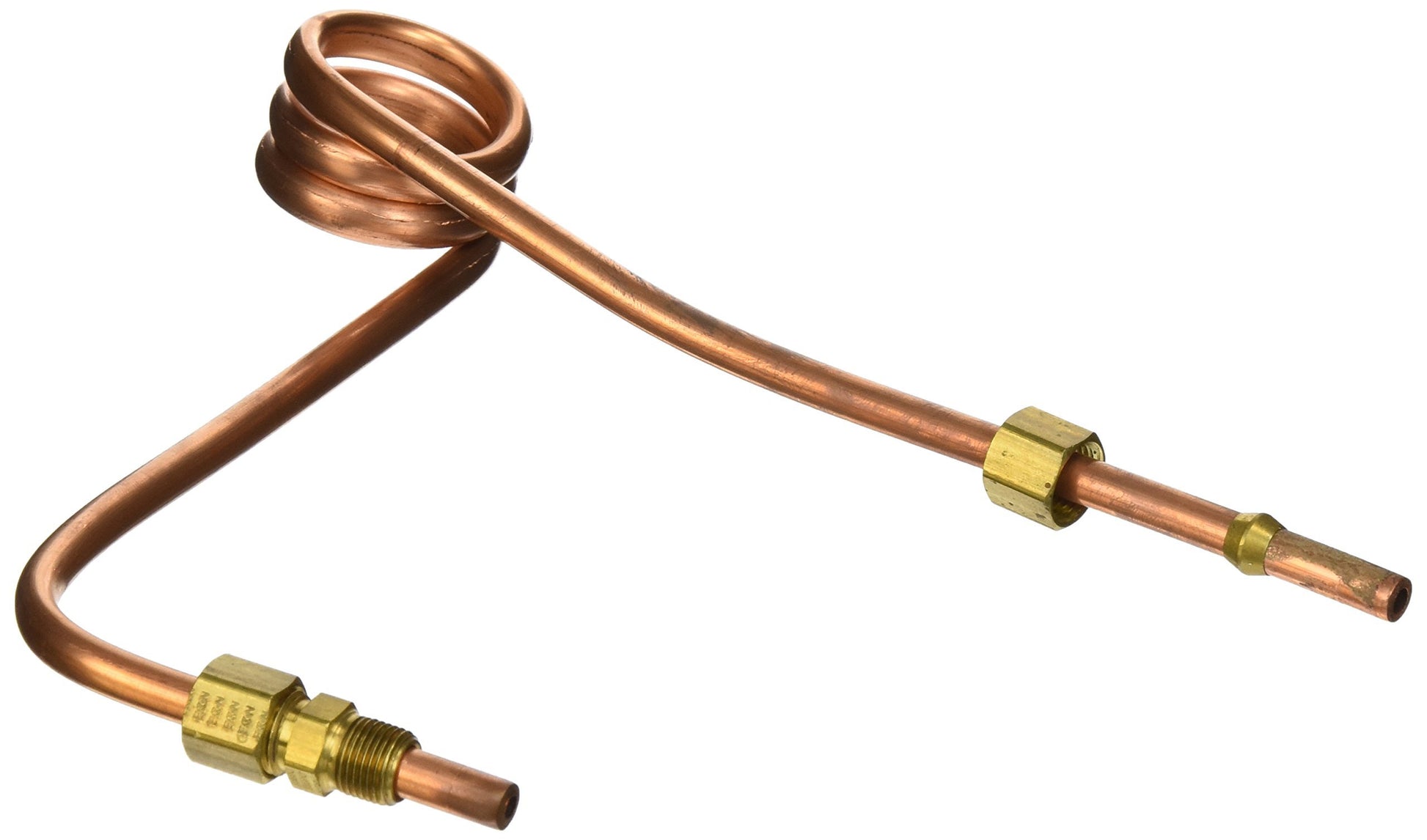

Raypak 003271F – Pressure Switch Tube Assembly – Heater Safety Line
Raypak 003271F – Pressure Switch Tube Assembly – Heater Safety Line
Raypak 003271F – Pressure Switch Tube Assembly – Heater Safety Line
If the heater will not prove water flow correctly, shuts down on pressure-related safety, or the small tubing line to the pressure switch is cracked or blocked, the pressure switch tube assembly is a likely cause. A simple problem in this line can make a Raypak heater not working situation look like a bad switch or flow issue elsewhere.
This pressure switch tube assembly carries pressure to the pressure switch so the heater can verify safe operating conditions before firing. When the tube is split, restricted, or disconnected, the switch may not read correctly and the heater may refuse to run or shut down unexpectedly. Replacing it restores the pressure signal path for the safety circuit.
- Heater will not fire because pressure safety is not proving correctly
- Cracked, blocked, or disconnected tube at the pressure switch
- Flow-related shutdowns during Raypak heater troubleshooting
- Need to restore the safety line between pressure source and switch
What this part does: It carries the pressure signal to the heater pressure switch so the safety circuit can operate correctly.
Compatibility: Used on select Raypak models. Confirm with your model number before ordering.
- Part Number: 003271F
- Type: Pressure switch tube assembly
- Application: Heater safety line
OEM Value: A genuine Raypak tube assembly helps maintain the correct routing and fit for the pressure safety circuit. When the safety line is compromised, even a good pressure switch cannot do its job properly.
