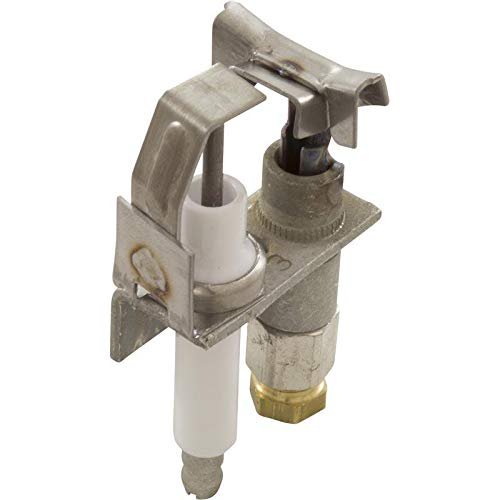

Raypak 002234F Pilot Assembly for IID Pool & Spa Heaters
Raypak 002234F Pilot Assembly for IID Pool & Spa Heaters
Raypak 002234F Pilot Assembly for IID Pool & Spa Heaters
If your heater is attempting to ignite but never establishes pilot flame, or the pilot is weak and unstable during startup, the pilot assembly is one of the first ignition parts to inspect. A failing pilot assembly can cause repeated ignition failure and leave a Raypak heater not working even when the rest of the startup sequence appears to begin correctly.
This pilot assembly is used on compatible IID pool and spa heaters to provide the pilot flame needed for ignition. It delivers and positions the pilot flame so the heater can light correctly and transition into normal burner operation. When the assembly is worn, damaged, or unable to maintain a stable flame, ignition reliability drops fast.
- Pilot will not light or stay stable during startup
- Ignition sequence fails because pilot flame is weak or absent
- Pilot assembly shows wear, corrosion, or physical damage
- Raypak heater troubleshooting points to pilot-side failure
What this part does: It provides the pilot assembly used to establish the pilot flame in compatible IID pool and spa heaters.
Compatibility: Designed for Raypak IID pool and spa heaters. Confirm with your model number before ordering.
- Part Number: 002234F
- Type: Pilot assembly
- Application: IID pool and spa heaters
OEM Value: A genuine Raypak pilot assembly helps maintain the intended flame position, mounting fit, and gas delivery at the ignition point. Pilot problems are often precise, so complete OEM replacement usually saves time over piecing together uncertain parts.
