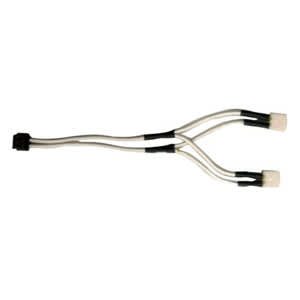

Pentair RYALX Splice Relay Adapter - LX

What This Part Is Used For
The Pentair RYALX Splice Relay Adapter LX is used to connect relay components within compatible Pentair automation systems. It supports proper electrical interfacing between modules.

Why This Part Matters
A faulty relay adapter can interrupt communication or power flow. Replacing the adapter helps maintain reliable automation control. Secure electrical connections are critical for pumps, heaters, and lighting circuits.

Key Features and Specifications

• Pentair manufacturer part number: RYALX
• Splice relay adapter
• For LX systems
• Electrical connection component
• For compatible Pentair automation equipment

Installation and Fitment Guidance
Disconnect power before servicing automation panels. Verify wiring configuration and compatibility prior to installation. Confirm by manufacturer part number before ordering.

About the Pentair Brand
Pentair manufactures pool automation systems and control components. Their relay and adapter kits support reliable system integration. Pentair automation products are widely used in modern equipment pads.

Common Service Context
Relay adapters are typically replaced during automation troubleshooting or panel upgrades. They are often serviced when circuits fail to engage properly.
