Pentair Max-E-Pro In-Ground Pool Pump, 3 HP, Single Speed | 345079
Pentair Max-E-Pro In-Ground Pool Pump, 3 HP, Single Speed | 345079
Pentair Sta-Rite Max-E-Pro pump 345079 has been discontinued and is no longer available.
This listing is maintained for product identification, specifications, replacement planning and historical reference only. This exact pump cannot be ordered or backordered through Aqua Terra Backyard.

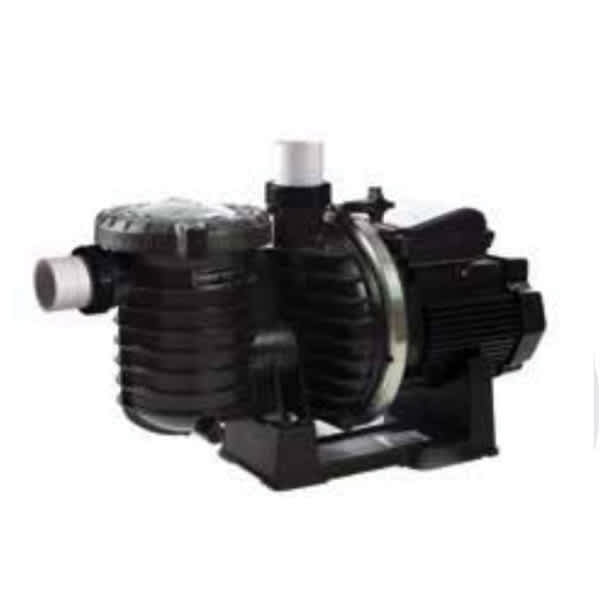

Pentair Sta-Rite Max-E-Pro 3 HP 3-Phase Pool Pump | 345079
Pentair Sta-Rite Max-E-Pro 345079 is a high-performance, single-speed pool and spa circulation pump equipped with a 3 HP three-phase motor. It was designed for demanding circulation applications requiring 208-230V or 460V three-phase electrical service.
The Max-E-Pro hydraulic design combines a large strainer housing, clear-view lid and serviceable pump construction. Model 345079 uses 2-inch suction and discharge connections and carries a service factor of 1.15 for 3.45 service-factor horsepower.
Key Pump Features
- High-performance Max-E-Pro hydraulic design
- 3 HP single-speed pump motor
- Three-phase electrical configuration
- Large-capacity strainer housing and basket
- Clear lid for visual basket inspection
- Quick-Lock-style strainer lid design
Important Identification Details
- Manufacturer part number 345079
- 208-230V or 460V three-phase service
- 60 Hz motor frequency
- 1.15 motor service factor
- 3.45 service-factor horsepower
- Not a single-phase residential pump
Product Specifications
| Manufacturer | Pentair |
|---|---|
| Brand | Sta-Rite |
| Product Line | Max-E-Pro |
| Manufacturer Part Number | 345079 |
| Product Type | High-performance pool and spa circulation pump |
| Motor Speed | Single speed |
| Rated Horsepower | 3 HP |
| Service Factor | 1.15 |
| Service-Factor Horsepower | 3.45 SFHP |
| Motor Phase | Three phase |
| Rated Voltage | 208-230/460V |
| Frequency | 60 Hz |
| Full-Load Amperage | 9.8-9.4A at 208-230V / 4.7A at 460V |
| Suction Connection | 2 inches |
| Discharge Connection | 2 inches |
| Carton Weight | Approximately 52 lb |
| Original Motor Part Number | 354812S |
| Original Impeller Part Number | C105-238PLA |
| Original Diffuser Part Number | C1-271P |
| Original Certifications | UL and NSF |
| Availability | Discontinued and no longer available |
This Is a Three-Phase Pump
Model 345079 requires compatible three-phase electrical service. It is not designed to connect directly to a standard 230V single-phase residential pool-pump circuit.
Before selecting a replacement, verify the existing supply voltage, phase, breaker or motor protection, conductor sizing, grounding, bonding and equipment-control arrangement.
A replacement pump labeled 3 HP is not automatically compatible. Horsepower alone does not confirm electrical or hydraulic suitability.
Replacement and Retrofit Guidance
Pentair does not identify a direct drop-in supersession for model 345079. A replacement must be selected using the complete operating requirements of the pool or water system.
- Confirm whether the existing service is 208V, 230V or 460V
- Confirm whether three-phase power must be retained
- Match the required flow rate and total dynamic head
- Review filter, heater and water-feature flow limitations
- Compare suction and discharge centerline dimensions
- Allow for replumbing if the replacement footprint differs
- Verify automation or external-control compatibility
Frequently Asked Questions
Is Pentair Max-E-Pro 345079 still available?
No. Pentair Max-E-Pro model 345079 has been discontinued and is no longer available as a complete new pump through Aqua Terra Backyard. This listing remains online for identification and reference.
Is model 345079 a single-phase or three-phase pump?
It is a three-phase pump. It was manufactured for 208-230V or 460V three-phase electrical service.
Is this a variable-speed pool pump?
No. Pentair 345079 is a single-speed pump. Any conversion to a variable-speed model requires verification of electrical, hydraulic, plumbing and control compatibility.
Can a 230V single-phase pump directly replace 345079?
Not directly. Model 345079 is three phase, while most residential 230V variable-speed pumps are single phase. An electrician must verify or provide the correct electrical supply before a single-phase pump can be considered.
Does another 3 HP pump automatically match this model?
No. Two pumps carrying the same nominal horsepower can have different phase requirements, voltages, flow curves, service factors, port locations and plumbing dimensions.
What size plumbing connections does this pump use?
Pentair lists model 345079 with 2-inch suction and 2-inch discharge connections. Replacement-pump dimensions and union styles must still be compared before installation.
What is the original replacement motor number?
Pentair's replacement-parts documentation identifies motor 354812S for Max-E-Pro pump model 345079. Availability of individual service parts should be confirmed before ordering.
Will replacing this pump require replumbing?
Possibly. Replumbing is typically required when the replacement pump's suction height, discharge position, union style or overall footprint differs from the original Max-E-Pro.
How should a replacement pump be selected?
Selection should be based on available voltage and phase, required flow, total dynamic head, plumbing size, equipment-pad dimensions and any automation or water-feature requirements.
Need Help Identifying a Replacement Pump?
Before selecting a replacement, gather a clear photo of the motor nameplate, the available electrical service, existing plumbing size and the pool or water-feature operating requirements.
