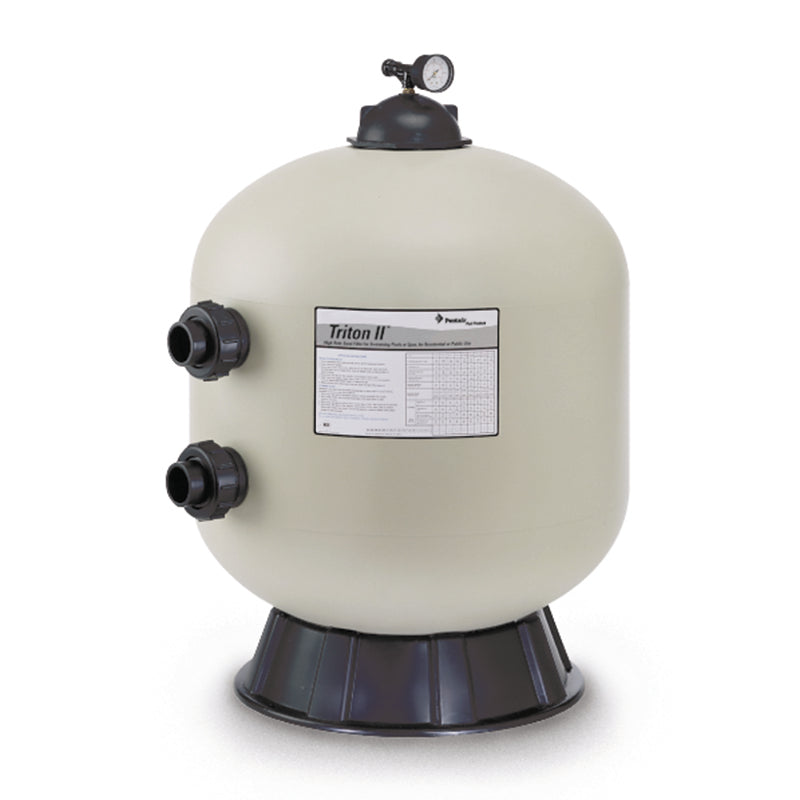

Pentair EC-140264 Triton II TR60 Sand Filter
Pentair EC-140264 Triton II TR60 Sand Filter
Pentair EC-140264 Triton II TR60 Side-Mount Sand Filter
The Pentair EC-140264 Triton II TR60 Sand Filter is a durable, high-capacity side-mount pool filter designed for dependable residential inground pool filtration. Its one-piece fiberglass-reinforced tank, efficient internal flow design, and service-friendly construction make the Triton II a proven choice for new installations and replacement filter systems.
With a 63 GPM flow rate, 3.14 square feet of filtration area, and a 325-pound total media capacity, the TR60 provides reliable water clarity while allowing extended operating time between backwashing cycles.
This is a side-mount filter tank without a multiport or push-pull valve. The compatible valve, unions, plumbing fittings, filter media, and installation materials must be purchased separately.
Key Features
- Genuine Pentair Triton II side-mount sand filter
- Manufacturer part number: EC-140264
- Filter model: TR60
- One-piece fiberglass-reinforced tank
- UV-resistant exterior finish for outdoor installation
- Special internal flow design promotes even filtration through the sand bed
- Internal air bleed helps prevent trapped air pockets
- Heavy-duty top closure allows access for inspection and maintenance
- Easy-to-read pressure gauge and manual air-relief valve
- Swing-away diffuser provides easier access to the sand and internal components
- Threaded internal parts and bulkhead connectors simplify service
- Combination sand and water drain supports maintenance and winterization
TR60 Specifications
| Model | Triton II TR60 |
| Manufacturer Part Number | EC-140264 |
| Filter Type | Side-mount high-rate sand filter |
| Tank Material | Fiberglass-reinforced construction |
| Tank Diameter | Approximately 24 inches |
| Effective Filtration Area | 3.14 sq. ft. |
| Flow Rate | 63 GPM |
| 8-Hour Turnover | 30,240 gallons |
| 10-Hour Turnover | 37,800 gallons |
| 12-Hour Turnover | 45,360 gallons |
| Total Media Capacity | 325 lb. |
| Recommended Media Bed | 75 lb. pea gravel plus 250 lb. filter sand |
| Maximum Operating Pressure | 50 PSI |
| Maximum Internal Water Temperature | 104°F / 40°C |
Why Choose the Pentair Triton II TR60?
The Triton II is built around a balanced internal flow system that distributes water evenly across the filtration media. This helps maximize the usable surface of the sand bed, support consistent water clarity, and extend the time between backwashing compared with poorly distributed filter designs.
Its fiberglass tank is resistant to corrosion and outdoor exposure, while the threaded bulkhead connections and accessible internal components make the TR60 practical to install, inspect, and service over the life of the pool.
What Is Included?
- Pentair Triton II TR60 filter tank
- Internal diffuser and lateral assembly
- Heavy-duty top closure
- Pressure gauge and air-relief components
- Drain assembly
Side-mount valve, plumbing unions, filter sand, pea gravel, PVC fittings, and installation labor are not included. Confirm the correct valve style and plumbing size for your equipment pad before ordering.
Frequently Asked Questions
How much sand does the Pentair TR60 require?
The TR60 has a total media capacity of 325 pounds. Pentair specifies a media bed of 75 pounds of pea gravel and 250 pounds of pool filter sand. Follow the current Pentair installation manual and local installer recommendations when loading the filter.
Does the EC-140264 include a multiport valve?
No. The EC-140264 is supplied as a side-mount filter without a valve. A compatible Pentair multiport or push-pull valve must be purchased separately.
What size pool can the TR60 support?
At its rated 63 GPM flow, the TR60 provides approximately 30,240 gallons of turnover in eight hours. Actual filter sizing must also account for the pool volume, plumbing, pump flow, local codes, and desired turnover time.
Is the Triton II TR60 suitable for saltwater pools?
Yes. The corrosion-resistant fiberglass tank can be used as part of a properly installed and maintained saltwater pool system. Water chemistry must remain within the equipment manufacturer's recommended ranges.
Send Aqua Terra Backyard your pool volume, pump model, plumbing size, and a photo of the existing equipment pad. We can help confirm whether the Pentair Triton II TR60 is the right fit for your system.
