Pentair IntelliBrite 5G White LED Pool Light, 400W, 50' Cable, 120V | 601201
Pentair IntelliBrite 5G White LED Pool Light, 400W, 50' Cable, 120V | 601201
Pentair IntelliBrite 5G White LED Pool Light 601201 has been discontinued and is no longer available.
This exact IntelliBrite 5G fixture cannot be ordered or backordered through Aqua Terra Backyard. Pentair has replaced it with the newer IntelliBrite Architectural Series White Pool Light, part number 602178.
View Pentair 602178 Replacement Light

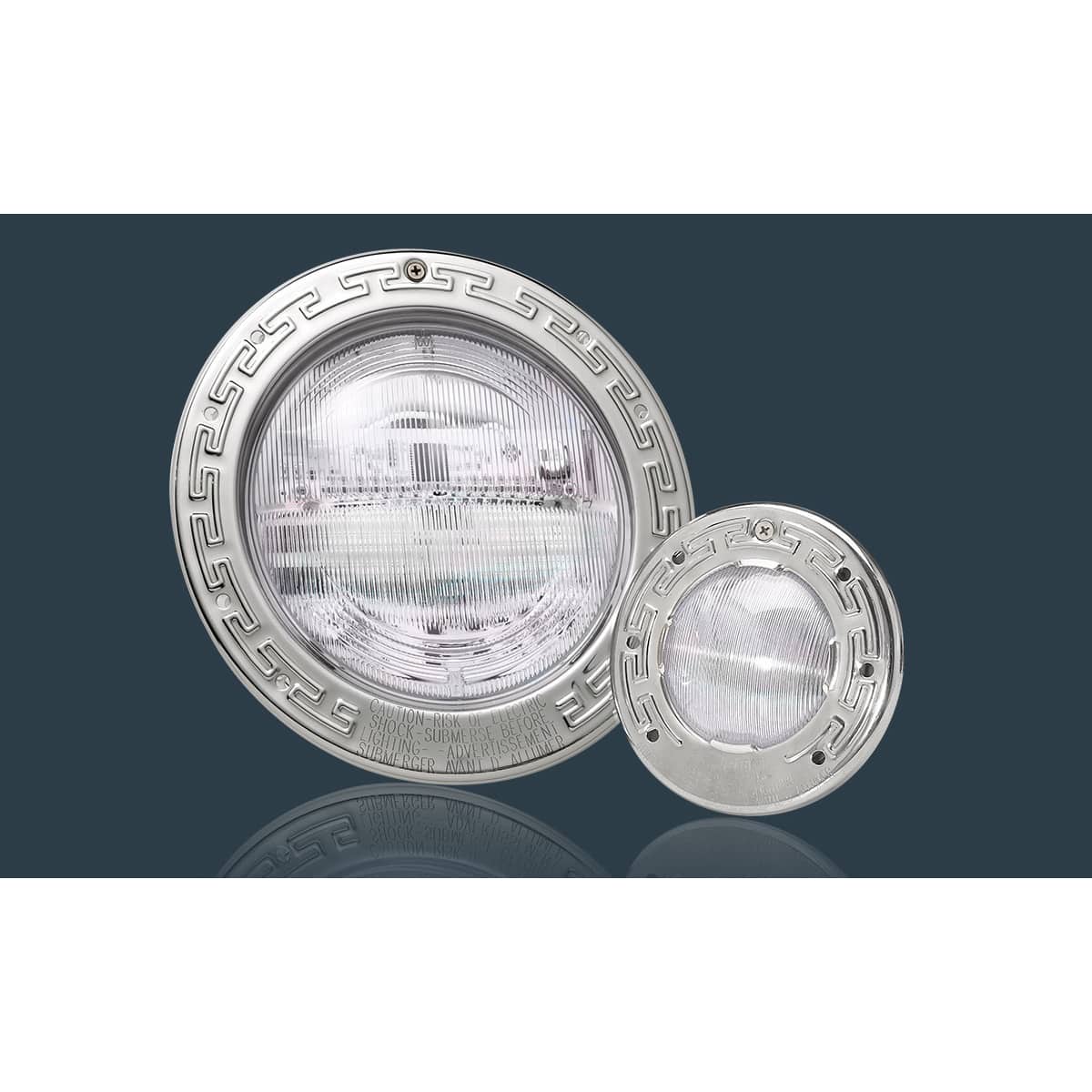

Pentair IntelliBrite 5G White LED Pool Light, 120V, 50-Foot Cord | 601201
Pentair 601201 is a discontinued IntelliBrite 5G fixed-white LED underwater pool light designed for compatible full-size Pentair wet niches. It provides the illumination class of a 500-watt incandescent pool light while using energy-efficient LED technology.
The fixture operates on a 120V branch circuit and includes a factory-attached 50-foot cord. Its adjustable lens orientation allowed the installer to select a wider or narrower beam pattern based on the pool shape and original light placement.
Pentair now identifies IntelliBrite Architectural Series part 602178 as the direct model cross-reference for this voltage, cord length and white brightness class.
Original IntelliBrite 5G Features
- Fixed pure-white LED underwater illumination
- 500-watt incandescent-equivalent brightness class
- 120V line-voltage configuration
- Factory-attached 50-foot electrical cord
- Full-size Pentair wet-niche pool-light design
- Adjustable wide or narrow beam orientation
Replacement Model Benefits
- Current Pentair Architectural Series platform
- 31-watt LED power consumption
- 500-watt incandescent-equivalent output class
- Same 120V electrical configuration
- Same 50-foot factory cord length
- Broader and more evenly distributed illumination
Original Product Features
- Fixed-white pool lighting: Produces bright white underwater illumination without color-changing modes or programmed light shows.
- High-output LED design: Provides Pentair's 500-watt incandescent-equivalent lighting class while consuming substantially less power than an incandescent pool light.
- Adjustable beam pattern: The original IntelliBrite 5G lens could be oriented for a wider standard beam or a narrower lighting pattern.
- 120V configuration: Designed for an approved 120V underwater-lighting branch circuit with proper GFCI protection.
- 50-foot factory cord: Includes an uninterrupted factory-attached cord for routing through the niche conduit to the pool-light junction box.
- Compatible Pentair niche application: Designed for approved Pentair, PacFab, Purex, American Products and other specifically listed Pentair wet niches.
- Legacy replacement reference: This discontinued page remains available to help identify existing IntelliBrite 5G installations and direct customers to the correct Architectural Series replacement.
Original Product Specifications
| Manufacturer | Pentair |
|---|---|
| Product Line | IntelliBrite 5G White LED |
| Manufacturer Part Number | 601201 |
| Product Type | Full-size fixed-white underwater LED pool light |
| Application | Compatible inground swimming pool wet-niche installations |
| Light Output | Fixed white |
| Color-Changing Capability | No |
| Rated Voltage | 120V |
| Incandescent Equivalency | 500 watts |
| Cord Length | 50 feet |
| Installation Type | Compatible full-size Pentair wet niche |
| Beam Adjustment | Wide or narrow pattern through lens orientation |
| Transformer Required | No, this is the 120V version |
| Required Circuit Protection | Properly rated, code-compliant GFCI-protected branch circuit |
| Current Availability | Discontinued and no longer available |
| Official Replacement | Pentair IntelliBrite Architectural Series 602178 |
Pentair IntelliBrite Architectural Series White Pool Light | 602178
Pentair 602178 is the current Architectural Series replacement for the discontinued IntelliBrite 5G 601201. It preserves the key installation specifications of the original fixture while moving the system to Pentair's newer lighting platform.
The replacement remains a fixed-white, full-size underwater pool light with a 120V electrical rating, 50-foot cord and 500-watt incandescent-equivalent output class. The newer fixture operates at 31 watts and uses updated optics designed to spread light more evenly throughout the pool.
Confirm the Voltage, Niche and Cord Length
Pentair officially cross-references 601201 to 602178, but the complete existing installation should still be inspected before replacement. Older niches, conduit, junction boxes and electrical systems may require service or correction before a new fixture is installed.
- Confirm the existing fixture part number is 601201
- Verify that the existing electrical circuit is 120V
- Confirm the wet niche is approved for the replacement light
- Measure the full conduit route to the junction box
- Allow sufficient extra cord for deck-side fixture service
- Inspect the niche, mounting tab and pilot-screw connection
- Verify proper grounding and bonding
- Test the GFCI before returning the pool to service
Professional Installation Required
Underwater pool lighting combines line voltage, a wet niche, electrical conduit, grounding, bonding, GFCI protection and a pool-light junction box. Installation should be completed by a licensed or certified electrician or qualified pool professional familiar with underwater luminaires.
- Disconnect power at the circuit breaker before service
- Verify the circuit is de-energized before removing the fixture
- Confirm proper grounding and bonding connections
- Use only a compatible approved wet niche
- Do not splice the light cord inside the conduit
- Leave sufficient cord inside the niche for future service
- Use the correct pilot screw and mounting method
- Never energize the fixture unless fully installed and submerged
Frequently Asked Questions
Is Pentair IntelliBrite 601201 still available?
No. Pentair 601201 and the IntelliBrite 5G White LED product family have been discontinued. This page remains online for identification and replacement guidance.
What replaces Pentair 601201?
Pentair officially cross-references 601201 to IntelliBrite Architectural Series white pool light 602178.
Is Pentair 601201 a 400W- or 500W-equivalent light?
Pentair identifies 601201 as a 500-watt incandescent-equivalent white pool light. It should not be listed as the 400-watt-equivalent model.
Does the replacement use the same voltage?
Yes. Both the discontinued 601201 and replacement 602178 are 120V pool lights.
Does the replacement have the same cord length?
Yes. Pentair 602178 includes the same 50-foot factory-attached cord length as the discontinued 601201.
Is the replacement also a fixed-white light?
Yes. Pentair 602178 is a standard fixed-white pool light. It does not provide color-changing modes or programmed light shows.
How much power does Pentair 602178 use?
The Architectural Series replacement uses 31 watts while maintaining Pentair's 500-watt incandescent-equivalent lighting class.
Will the replacement fit the existing wet niche?
Pentair identifies 602178 as the model replacement for 601201, but the existing niche, mounting point, grounding, bonding and conduit condition should still be inspected before installation.
Does the 120V replacement require a transformer?
No standard 12V pool-light transformer is used with this 120V model. It requires a properly designed and GFCI-protected 120V underwater lighting circuit.
Can the old pool-light cord be reused?
No. The replacement fixture includes its own factory-attached cord. The old fixture and cord are removed together, and the new cord is routed continuously through the conduit to the junction box.
Who should install the replacement pool light?
Installation should be completed by a licensed or certified electrician or qualified pool professional familiar with line-voltage underwater lighting and current electrical codes.
Replacing a Pentair IntelliBrite 5G White Pool Light?
Pentair 602178 is the official fixed-white Architectural Series replacement for the discontinued 120V, 50-foot-cord 601201 fixture.
