Napoleon

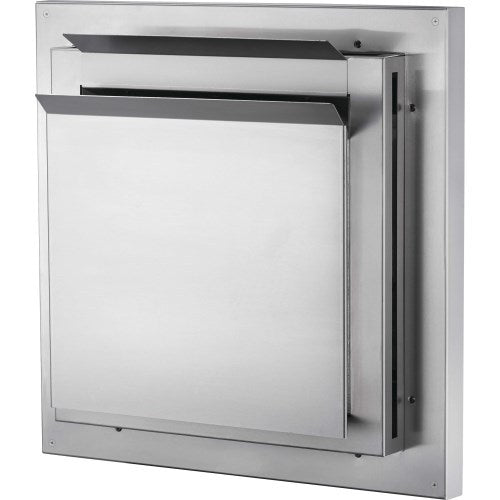

Napoleon Silhouette Terminal Kit, 4/7" | ST47U
Napoleon Silhouette Terminal Kit, 4/7" | ST47U
The Napoleon ST47U is the Silhouette low profile wall terminal for 4/7 direct vent systems. Napoleon's manuals for 4"/7" appliances list it as a wall terminal option next to the GD-222 and GD-222R. Napoleon notes it installs in standard 2x4 and 2x6 exterior walls. Part number ST47U.
Part details
| Part number | ST47U |
|---|---|
| Part type | Wall terminal (Silhouette) |
| Vent size | 4/7 |
| Wall | Standard 2" x 4" and 2" x 6" exterior walls |
| Finish | Can be painted with an approved high temperature exterior paint |
| Fits | Ascent 30, 36, 42, 46, Ascent BX 36, Ascent Linear BL36/42/46, Bayfield, Arlington and Knightsbridge (as named in their manuals) |
| Matching screen | STS4758 |
| Brand | Napoleon |
Questions people ask us
Which appliances name the ST47U?
Napoleon's 4"/7" manuals list "wall terminal kit GD-222, GD-222R, ST47U" for the Ascent 30, 36, 42 and 46, the Ascent BX 36, the Ascent Linear BL36, BL42 and BL46, and the Bayfield, Arlington and Knightsbridge stoves.
Is there a screen or stand-off for it?
Napoleon lists the STS4758 Silhouette terminal screen for both sizes, and 4/7 stand-offs for brick and finishing applications. Napoleon says a stand-off may be required for brick and vinyl. See the SOST47.
Can it be painted?
Napoleon says the Silhouette terminal can be painted with an approved high temperature exterior paint.
Not sure the ST47U is right for my appliance?
Send us the model number from the rating plate and we will confirm the terminal before you order. Ask us here.
Goes with this
Manuals and warranty
Warranty terms depend on the part and on the appliance it goes in. Read the manual and the warranty for your model before you order.
Our warranty library · Napoleon manuals and documentsAsk us before you order
