Napoleon Luminex LCD Electric Linear Built-in Fireplace, 65 | NEFL65LCD-3SV
Napoleon Luminex LCD Electric Linear Built-in Fireplace, 65 | NEFL65LCD-3SV

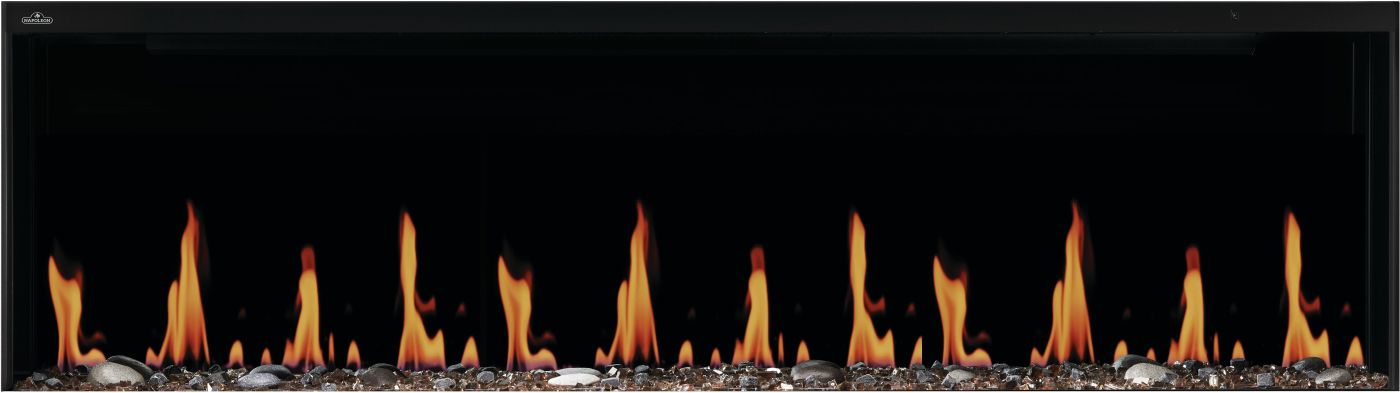

A 65 inch linear fireplace with a video flame, sound and a full set of media. The Luminex LCD 65 plays three flame patterns on an LCD panel, each in six colors, with a fire sound to match. You can set it up for one, two or three viewing sides. It is hardwired and works with Napoleon's Home App.
Built in: the fireplace sits in a framed opening and the wall is finished around it. Check the framing size for your model in the table above.
What you get
| Model | Napoleon NEFL65LCD-3SV, Luminex LCD 65 |
|---|---|
| Mounting | Fully recessed into an enclosure only. Set up for one-sided, two-sided (corner) or three-sided viewing. |
| Viewing area | 65″ wide × 16¾″ tall |
| Framing opening | 65 9/16″ wide for single-sided viewing, or 65 1/16″ wide for two and three-sided viewing, × 25⅞″ tall × 12½″ deep |
| Heater | Up to 1,500 W at 120 V or 3,000 W at 240 V. Thermostat from 64 to 82°F, a blower-only setting, ECO (half power) and a 30 minute Boost mode. The flame runs with the heater off. |
| Power | 120 V or 240 V on a dedicated 15 A grounded circuit. Hardwired only, with no cord. A qualified electrician must wire it to the household wiring. |
| Flame | LCD flame in three patterns, each in six colors: yellow, blue, green, orange, purple and white |
| Ember bed and top light | 13 colors plus a cycle, with three brightness levels |
| Sound | Built-in speakers with a fire sound for each flame pattern |
| Media included | Driftwood logs, mineral rocks, charcoal, two bags of rusty iron glass and two bags of smoky gem glass |
| Controls | Remote, a control panel on the unit and Napoleon's Home App over Wi-Fi. An optional wall-mount control is available from Napoleon. |
| Weight | 178.57 lb (81 kg) net |
| Warranty | Napoleon Electric Appliance 5 Year Limited Warranty |
Add to your order
Add the fireplace to your cart here. If you are planning a trim, mount or other part for it, tell us the model and we will confirm what fits before you order.
Questions people ask us
Can I hang it on the wall?
No. The Luminex is fully recessed into an enclosure, with the rough opening in the table above. The framing width changes slightly between single-sided viewing and two or three-sided viewing, so decide that before you frame.
What power does it need?
A dedicated 15 amp grounded circuit at 120 V or 240 V. Napoleon's manual says a qualified electrician must wire it directly. There is no cord.
Can I mount a TV above it?
Napoleon's manual warns that elevated temperatures on the wall or in the air above the appliance can damage a TV or other electronic components. Napoleon's manual gives 0″ above the appliance when it is recessed in the wall and 3 9/16″ to a mantel. Check your TV maker's guidance as well as the clearance chart in Napoleon's manual. If you want a second opinion on your wall, send us the dimensions.
How much heat does it put out?
The heater runs up to 1,500 W at 120 V or 3,000 W at 240 V. It has a thermostat, a blower-only setting, an ECO mode at half power and a 30 minute Boost. The flame can run with the heat off.
What is the LCD flame?
Instead of a mechanical flame, a panel plays a video flame. There are three patterns, each in six colors, and each has its own fire sound through the built-in speakers. The ember bed and top light have 13 colors and three brightness levels.
How do I control it?
The remote is included, the unit has a control panel and it pairs with Napoleon's Home App over Wi-Fi. An optional wall-mount control is available from Napoleon.
Where can I install it?
Indoors only. Napoleon's manual says not to use it outdoors and to choose a location that is not prone to moisture. Its rating plate lists it as suitable for bedroom and bed-sitting room installation. Napoleon's manual says this appliance is not suitable for installation in a bathroom.
Goes with this
Manuals and warranty
5 years on warranted parts, including electrical components and wearable parts such as the fan and heater, motors, switches, remote controls and LED lights. Light bulbs and fuses are not covered. Terms are in the manual, so read them before you order. After the first year, Napoleon does not cover installation or labor.
Read the warranty terms · Our warranty library · Register your fireplaceEvery document is kept on our site, so the link works when you need it. More are in our Napoleon manuals and documents.
A note on the photos. Napoleon's photography often shows optional media and trim, and its flame colors are shown by the lighting. What ships with the fireplace is listed in the What you get table, and anything else is sold separately.
