Napoleon Elevation LCD Built-in Electric Fireplace, 36 | NEFB36LCD-MF
Napoleon Elevation LCD Built-in Electric Fireplace, 36 | NEFB36LCD-MF
A recessed electric fireplace with a real video flame behind the glass. The Elevation LCD 36 uses a 32 inch LCD panel to play the flame, in a gas style or a wood style, in front of a split oak log set. Napoleon lists the series as Elevation X Electric. It includes a remote and works with Napoleon's Home App over Wi-Fi.
Built in: the fireplace sits in a framed opening and the wall is finished around it. Check the framing size for your model in the table above.
What you get
| Model | Napoleon NEFB36LCD-MF, Elevation LCD 36 (Napoleon's Elevation X Electric series) |
|---|---|
| Mounting | Built in only, recessed into an enclosure |
| Appliance size | 39″ W × 35 3/16″ H × 16⅝″ D outside, with a decorative trim that measures 40⅜″ W × 36⅜″ H |
| Viewing area | 35¾″ wide × 29 1/16″ tall |
| Framing opening | 39¾″ wide × 35 9/16″ tall × 16⅞″ deep |
| Heater | Up to 1,465 W at 120 V or 2,930 W at 240 V. Napoleon's rating plate lists 5,000 BTU at 120 V and 10,000 BTU at 240 V. Thermostat from 64 to 82°F, blower-only setting, ECO (half power) and BOOST. |
| Power | 120 V or 240 V on a dedicated 15 A grounded circuit. A qualified electrician makes the connection, following the wiring section of Napoleon's manual. |
| Flame | LCD flame video with a gas style and a wood style, set from the remote. Split oak log set in front. |
| Ember bed and top light | Modulating ember bed with five color options, and 13 top light colors |
| Sound | Built-in speaker. Napoleon says it adds crackling sounds. |
| Controls | Remote and Napoleon's Home App over Wi-Fi. An optional wall-mount control is available from Napoleon. Timer, 7 day and 24 hour. |
| Weight | 77.3 kg net (about 170 lb) |
| Warranty | Napoleon Electric Appliance 5 Year Limited Warranty |
Add to your order
Add the fireplace to your cart here. If you are planning a trim, mount or other part for it, tell us the model and we will confirm what fits before you order.
Questions people ask us
What makes it different from the other Elevation?
The flame here is a video on a 32 inch LCD panel behind the glass. The remote switches between a gas style flame and a wood style flame, and a split oak log set sits in front. Napoleon lists it in its Elevation X Electric series.
Can I hang it on the wall?
No. Napoleon lists it as built in only, recessed into an enclosure. The framed opening is 39¾″ wide × 35 9/16″ tall × 16⅞″ deep.
What power does it need?
A dedicated 15 amp grounded circuit at 120 V or 240 V. Napoleon's manual describes a qualified electrician wiring it to the household wiring. Have your electrician follow the manual's wiring section, and never use an extension cord.
Can I mount a TV above it?
Napoleon's manual warns that elevated temperatures on the wall or in the air above the appliance can damage a TV or other electronic components. Check your TV maker's guidance as well as the clearance chart in Napoleon's manual. If you want a second opinion on your wall, send us the dimensions.
How much heat does it put out?
The heater runs up to 1,465 W at 120 V or 2,930 W at 240 V. Napoleon's rating plate lists 5,000 BTU at 120 V and 10,000 BTU at 240 V. It has a thermostat, a blower-only setting, an ECO mode at half power and a BOOST mode. The flame can run with the heat off.
How do I control it?
The remote is included, and the unit works with Napoleon's Home App over Wi-Fi. An optional wall-mount control is available from Napoleon. The timer runs on a 7 day or 24 hour schedule.
Does the glass get hot, and can it go in a bathroom?
The glass stays hot for an extended period after the appliance is off, and Napoleon asks that young children be supervised. Napoleon's manual says this appliance is not suitable for installation in a bathroom, and not for outdoor use.
Goes with this
Manuals and warranty
5 years on warranted parts, including electrical components and wearable parts such as the fan and heater, motors, switches, remote controls and LED lights. Light bulbs and fuses are not covered. Terms are in the manual, so read them before you order. After the first year, Napoleon does not cover installation or labor.
Read the warranty terms · Our warranty library · Register your fireplaceEvery document is kept on our site, so the link works when you need it. More are in our Napoleon manuals and documents.

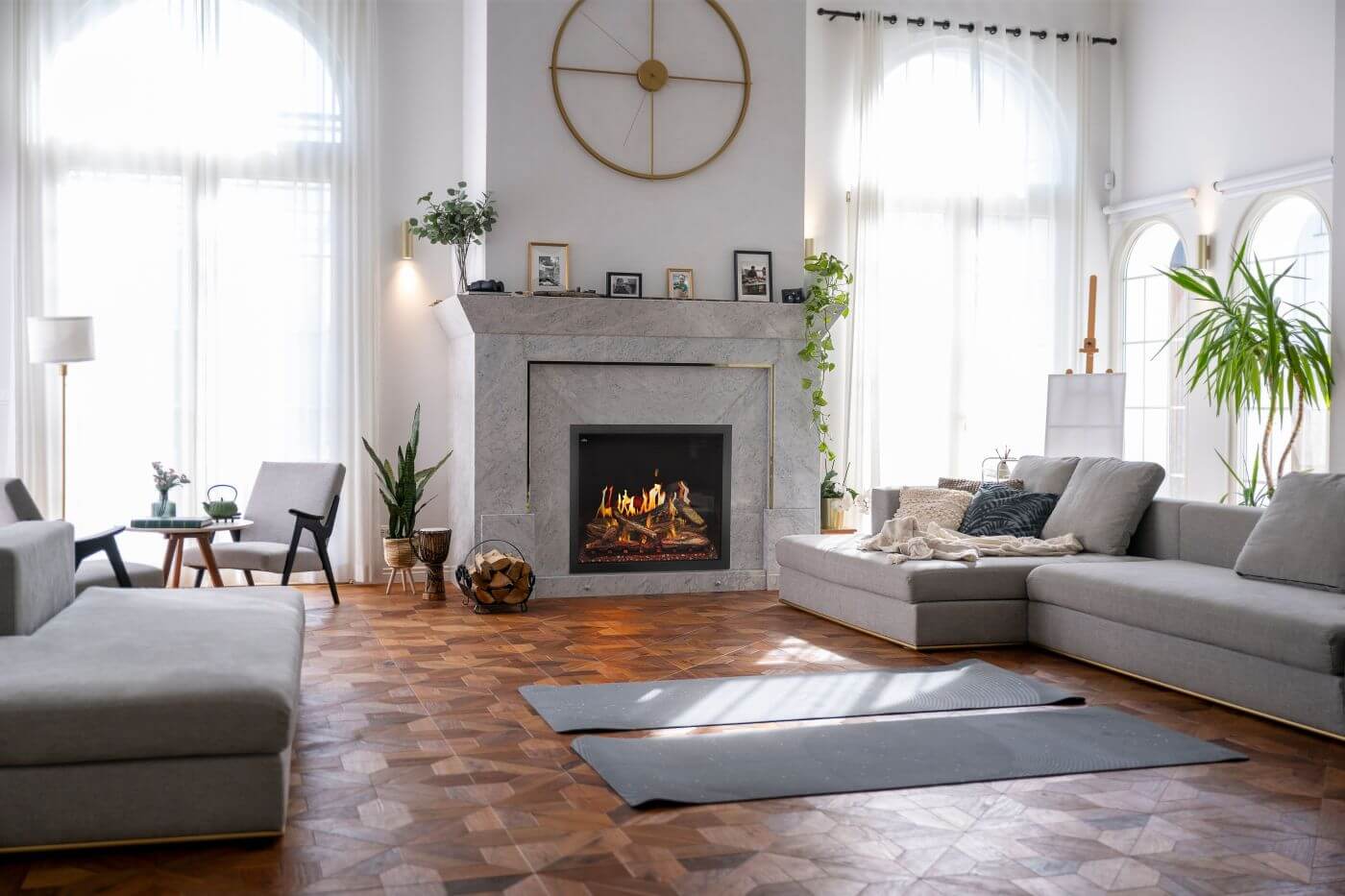

A note on the photos. Napoleon's photography often shows optional media and trim, and its flame colors are shown by the lighting. What ships with the fireplace is listed in the What you get table, and anything else is sold separately.
