• Napoleon Ducted Heat Management Side Discharge Kit for Luxuria 62/74, model DHMS6274
1 1

Napoleon

Napoleon Ducted Heat Management Side Discharge Kit for Luxuria 62/74 | DHMS6274

Napoleon Ducted Heat Management Side Discharge Kit for Luxuria 62/74 | DHMS6274

$719.00
$790.90 $719.00
Sale Sold out
Shipping calculated at checkout.
Napoleon Ducted Heat Management Side Discharge Kit for Luxuria 62/74 | DHMS6274
View full details

A side discharge ducted heat management kit for the Napoleon Vector and Luxuria 62 and 74 linear gas fireplaces. Part DHMS6274 is the side manifold kit in Napoleon's Ducted Heat Management (DHM) system, which is designed to move heat away from the fireplace so it can circulate more effectively in the living space.

Side dischargeside manifold kit
Vector and Luxuria 62/74LV and LVX linear models
Sleeves and manifolds2 sleeves, 2 manifolds, 2 collector boxes
DHMS6274Napoleon part number

Part details

Part numberDHMS6274
Part typeDucted heat management side manifold kit
BrandNapoleon
FitsNapoleon Vector and Luxuria 62 and 74 linear models
DischargeSide

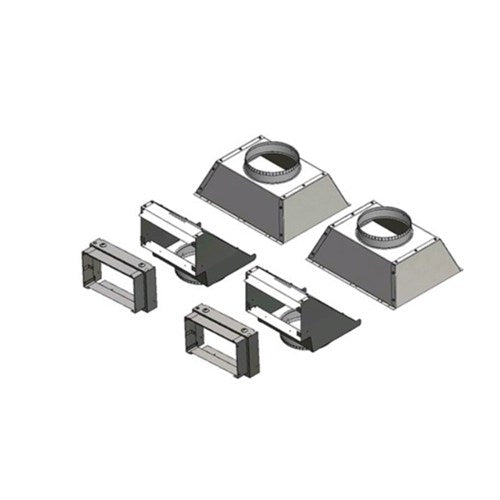

Kit contents2 side sleeve extensions, 2 side sleeves, 2 manifolds, 2 collector boxes
InstructionsNapoleon Ducted Heat Management installation manual for Vector and Luxuria
Plan it at the framing stage.Napoleon says the DHM kit must be installed during the framing of the appliance, before gas is installed, and that installation must be done by a qualified installer. Napoleon also calls the high limit switch installation mandatory on the LV models, so follow the DHM manual step by step.

Questions people ask us

Which fireplaces is the DHMS6274 for?

Napoleon's Ducted Heat Management manual is written for Vector and Luxuria models. The DHMS6274 is the side manifold kit for the 62 and 74 inch linear models, and the 38 and 50 inch models use the DHMS3850. See the DHMS3850.

What else is part of a side discharge setup?

Napoleon's manual lists the DHMSG side grill kit and the DVK ducted vent kit, which has 8 inch flex vent, in the options for these models. See the DHMSG side grills. For a front discharge setup there is the DHMF6274 front discharge kit.

When does this kit get installed?

During framing. Napoleon says the DHM kit must go in while the appliance is being framed, before gas is installed, and a qualified installer should do the work to the manual and local codes.

What if I am not sure which DHM kit I need?

Send us the model number from the rating plate and tell us whether you want front or side discharge. Ask us here.

Goes with this

Napoleon VectorThe linear fireplace line this kit is written for DHMSG side grillsThe grill kit for side discharge DHMF6274 front discharge kitThe front discharge option for 62/74 Venting and heat managementNapoleon venting and ducting parts

Manuals and warranty

Napoleon parts and warranty

Warranty terms depend on the part and on the appliance it goes in. Read the manual and the warranty for your model before you order.

Our warranty library · Napoleon manuals and documents
Not sure the DHMS6274 is the right kit? Send us the model number from your fireplace's rating plate and whether you want front or side discharge. We will confirm the kit before you order. No obligation either way.
Ask us before you order
