Napoleon Cineview Built-in Electric Fireplace
Napoleon Cineview Built-in Electric Fireplace

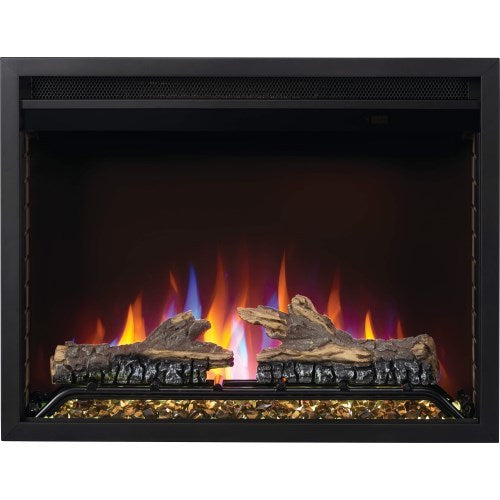

A compact 26 inch electric fireplace that goes straight into a framed wall opening. The Cineview 26 has a self-trimming flange, logs and black crystal media in the box, a built-in heater and a touch panel plus remote. It plugs into a 120 V outlet, or an electrician can hardwire it.
Built in: the fireplace sits in a framed opening and the wall is finished around it. Check the framing size for your model in the table above.
What you get
| Model | Napoleon NEFB26H, Cineview 26 |
|---|---|
| Overall size | 26″ W × 20 5/16″ H × 7¾″ D |
| Viewing area | 23 15/16″ wide × 15 3/16″ tall |
| Framing opening | 25¼″ wide × 7¾″ deep. Height is 19 7/8″ plus an allowance that varies with your floor or mantel base, so use the framing page of the manual. |
| Weight | 37.5 lb (17 kg) net |
| Mounting | Recessed into a framed opening. The self-trimming flange gives a finished face, and one supplied screw through the mounting tab secures it to the framing. |
| Heater | 1,465 W at 120 V. Napoleon lists 5,000 BTU. Thermostat from 64 to 82°F, blower-only setting, ECO (half heat) and BOOST (maximum heat with a faster blower). The flame runs with the heater off. |
| Power | 120 V on a dedicated 15 A grounded circuit. Plugs into an outlet box by default, or an electrician can hardwire it. |
| Flame | LED flame in orange, blue or combined, with adjustable brightness and five flame speeds |
| Ember bed | LED ember bed lighting in a choice of colors, plus an auto-cycle |
| Media included | Logs and black crystal media, in the same box |
| Controls | Touch control panel and remote (button battery). Timer from 30 minutes to 8 hours. |
| Warranty | Napoleon Electric Appliance Standard Warranty, 1 year on warranted parts |
Add to your order
Napoleon's Cineview specification sheet (W415-2946) lists this trim kit for the NEFB26H. Tick it to add it with the fireplace in one step. It is optional, because the fireplace has its own self-trimming flange.
Questions people ask us
Does it recess into the wall, or can I hang it?
It is a recessed appliance. Napoleon's manual has it set into a framed opening and secured with one screw through the mounting tab. The flange trims the front on its own. If you want a bigger surround, or you are fitting it into an old opening, Napoleon sells 3 and 4 piece trim kits.
What power does it need?
A dedicated 15 amp grounded 120 V circuit. It plugs into an outlet box by default. A qualified electrician can hardwire it instead. Napoleon does not permit extension cords.
Can I mount a TV above it?
Napoleon's manual warns that elevated temperatures on the wall or in the air above the appliance can damage a TV or other electronic components. Napoleon's manual lists 0″ clearance to a mantel above the unit, which is a clearance for the wall material and not a TV height. Check your TV maker's guidance as well as the clearance chart in Napoleon's manual. If you want a second opinion on your wall, send us the dimensions.
How much heat does it put out?
The heater is 1,465 W at 120 V, and Napoleon lists it at 5,000 BTU. It has a thermostat, a blower-only setting, an ECO mode that runs at half heat and a BOOST mode that runs at maximum heat for 10, 20 or 30 minutes. The flame has its own control, so you can run it with the heat off.
How do I control it?
Use the touch control panel on the unit or the remote, which takes a button battery. You can set flame color and brightness, flame speed, ember bed color, heat, thermostat and a timer from 30 minutes to 8 hours.
What is in the flame bed?
Logs and black crystal media come in the box. The small crystals go on the media tray under the grate, the logs sit on the grate and the large crystals go over the small ones.
Where can I install it?
Indoors only. Napoleon's manual says not to use it outdoors and to choose a location that is not prone to moisture. Its rating plate lists it as suitable for bedroom and bed-sitting room installation. Please check with us before planning a bathroom install.
Goes with this
Manuals and warranty
1 year on warranted parts, including electrical components and wearable parts such as the fan and heater, motors, switches, remote controls and LED lights. Light bulbs and fuses are not covered. Terms are in the manual, so read them before you order.
Read the warranty terms · Our warranty library · Register your fireplaceEvery document is kept on our site, so the link works when you need it. More are in our Napoleon manuals and documents.
A note on the photos. Napoleon's photography often shows optional media and trim, and its flame colors are shown by the lighting. What ships with the fireplace is listed in the What you get table, and anything else is sold separately.
