Lexington Hearth Classic Non-Combustible Beam Mantel
Lexington Hearth Classic Non-Combustible Beam Mantel

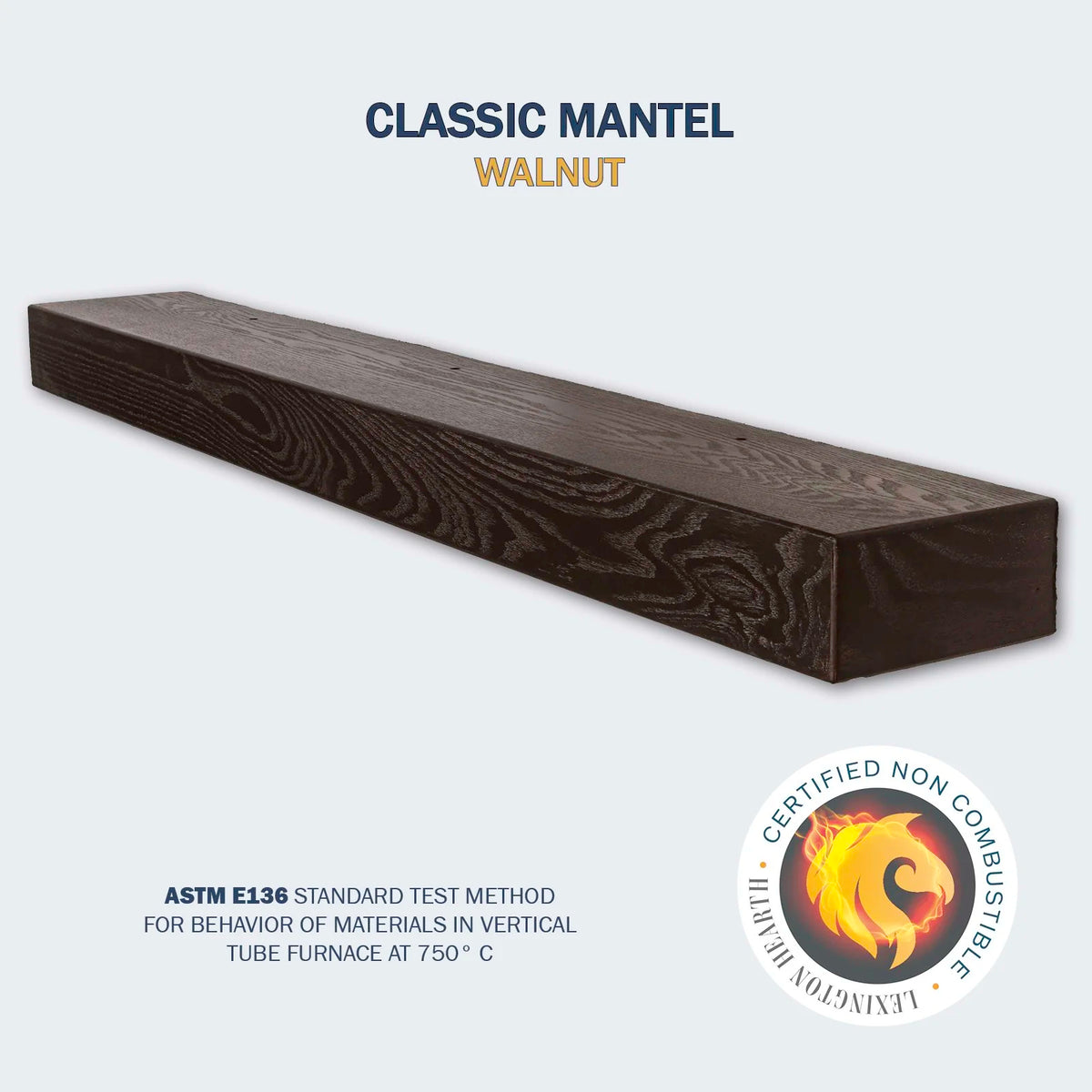

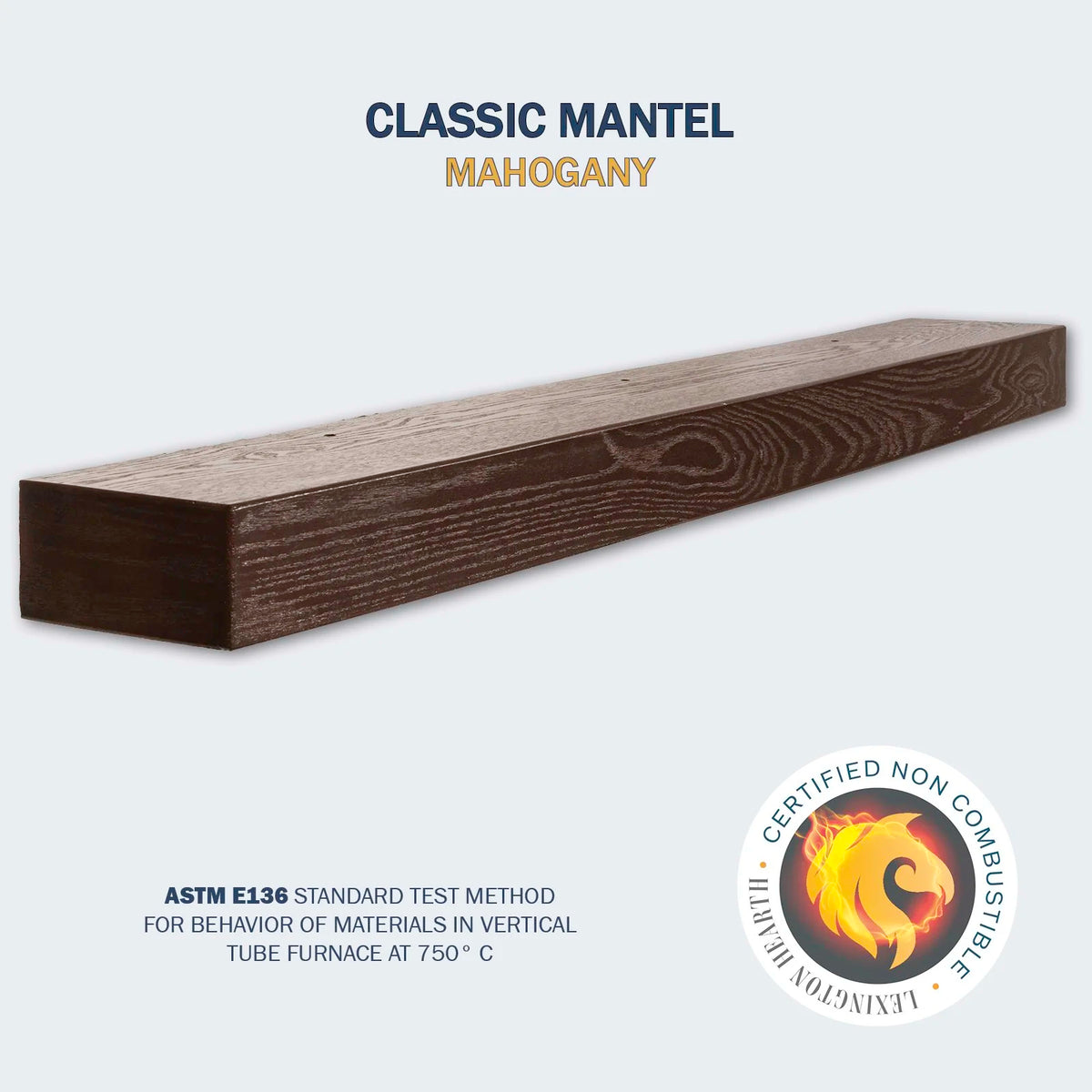

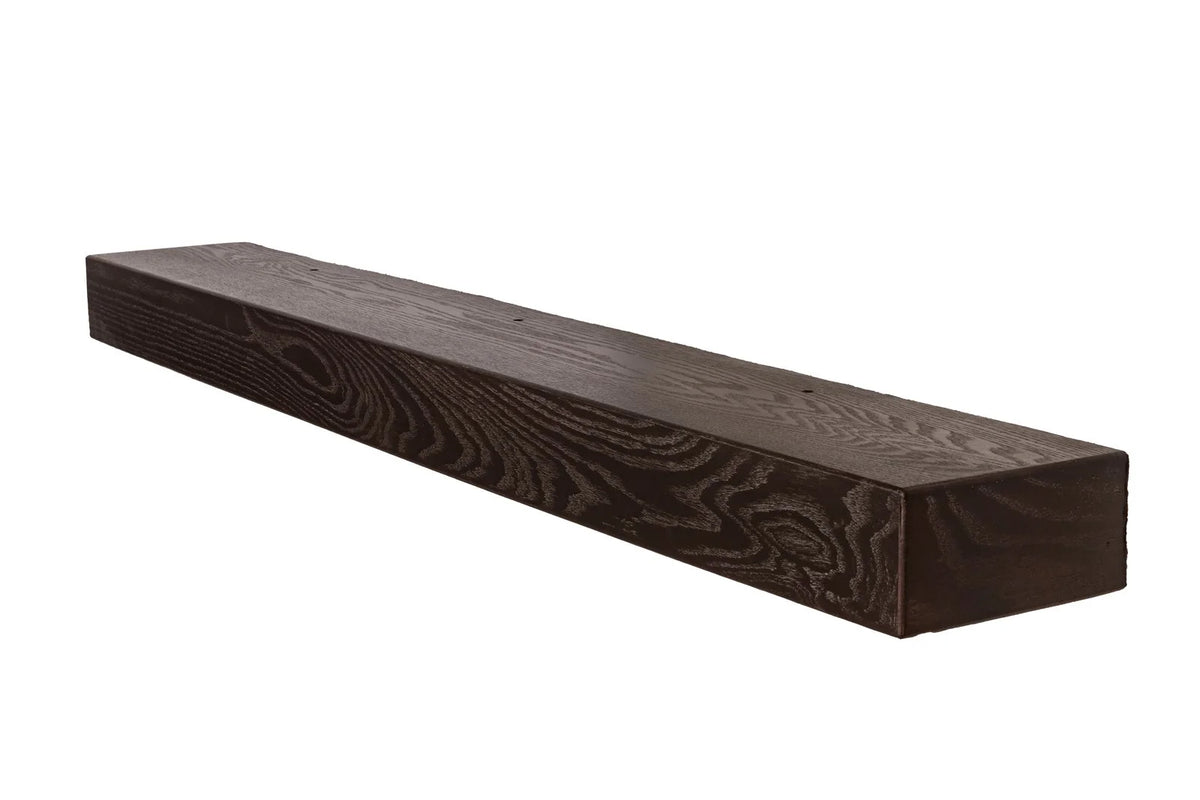

The Lexington Hearth Classic is a non-combustible beam mantel made to look like a smooth sanded oak beam, 4 inches high and 8 inches deep, in 60 and 84 inch lengths. It is part of Lexington Hearth's Architect Series, with plain, symmetrical lines that sit well in traditional, Georgian, Federal, rustic and mid-century rooms. It is cast in Burncrete, certified non-combustible to ASTM E136, and hand-painted in Walnut or Mahogany.
Specifications
| Model | Classic Non-Combustible Beam Mantel (Architect Series) |
|---|---|
| Part numbers | CL-5-LH-WA (60", Walnut), CL-7-LH-MG (84", Mahogany), CL-7-LH-WA (84", Walnut) |

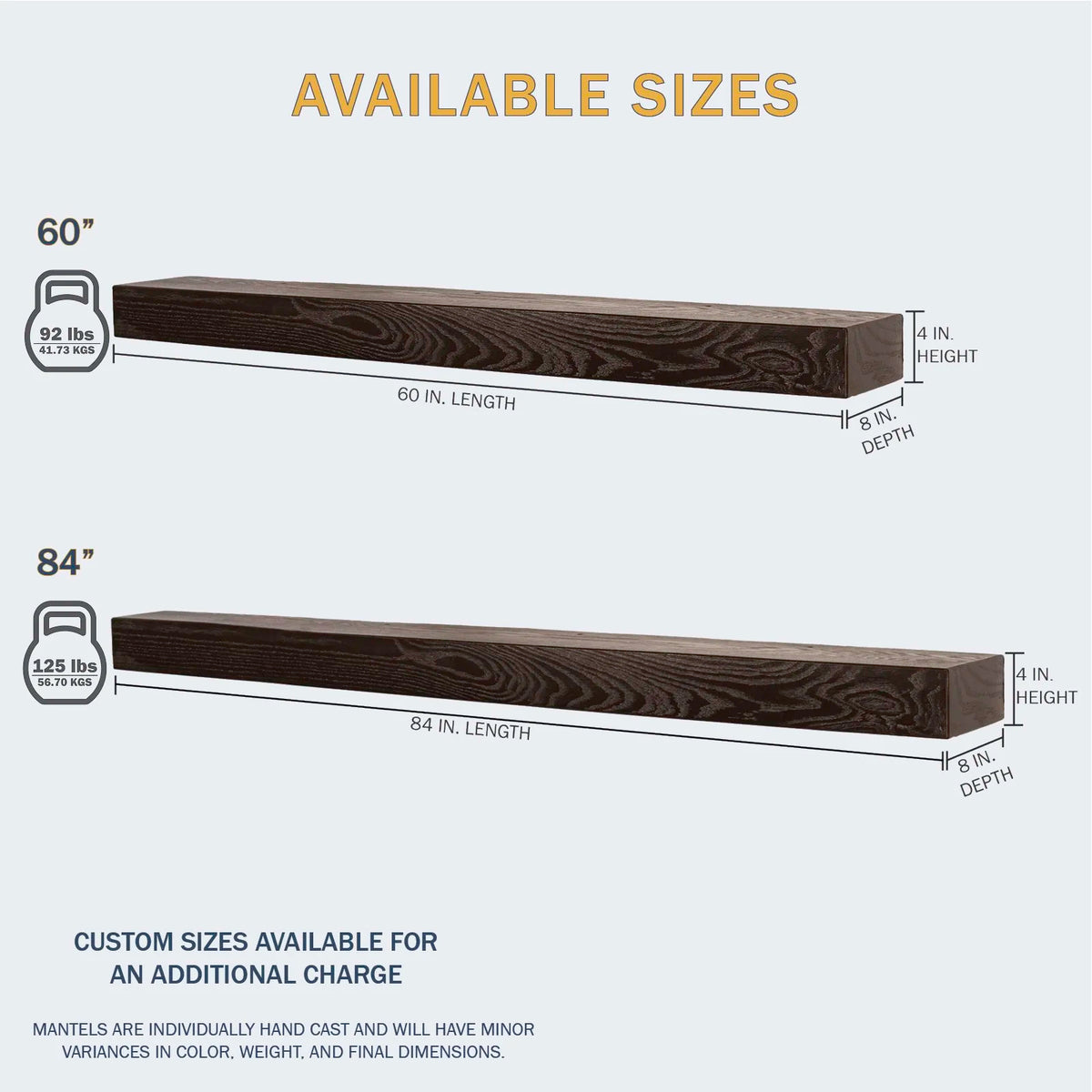

| Profile | 4" high x 8" deep |
| Lengths listed | 60" and 84" |
| Weight | 92 lbs (60"), 125 lbs (84") |
| Material | Burncrete non-combustible casting |
| Certification | Non-combustible per ASTM E136 (vertical tube furnace at 750°C) |
| Look | Smooth sanded oak beam |
| Finishes listed | Walnut, Mahogany |
| In the box | Mantel, 3" x 2" mounting bracket, screws, touch-up kit (filler putty, paint, brush) |
| Made in | Lexington, Kentucky, USA |
| Brand | Lexington Hearth |
Questions people ask us
Is this the wood or the non-combustible Classic?
This listing is the non-combustible Classic, cast in Burncrete. Lexington Hearth also makes a lighter Classic in wood veneer, which is a different product with its own finishes. Ask us if you want the wood version.
Which lengths and finishes can I order?
We list the 60 inch in Walnut and the 84 inch in Walnut or Mahogany. Lexington Hearth also paints the Classic in Honey Oak and can make custom lengths and colors at the factory, so ask us about other combinations.
How far above the fireplace can it go?
Lexington Hearth's install guide gives a general guideline for its non-combustible mantels: the bottom of the mantel at least 6 inches above the fireplace for units under 50,000 BTU, and at least 12 inches for units of 50,000 BTU and up. It also says to follow local building codes and the fireplace manufacturer's minimum clearances. Your fireplace manual has the final say, so check its mantel clearance before you mark the wall.
How does it mount?
It hangs on the mounting bracket in the box. The bracket screws into the wall studs with the 2.5 inch screws, then three 2.25 inch self-drilling screws fix the mantel to the bracket through the pre-drilled holes in its top. Lexington Hearth calls for 3 studs for a 60 inch mantel and 4 studs for an 84 inch mantel, with each screw at least 1.5 inches into the stud. On masonry, use anchors rated for four times the load. Mantels are heavy, so plan on two people.
Can I cut or drill it?
No. Lexington Hearth warns against drilling, sawing, sanding or machining its cast mantels, because that can release ceramic fiber and crystalline silica dust. Use the pre-drilled holes, and if you need a different length, ask us about a factory custom length. Also keep tape off the painted finish; cover it with paper or plastic first.
Goes with this
Manuals and warranty
Warranty terms come from Lexington and depend on the product. Read the manual and the warranty for your model before you order.
Our warranty library· Classic non-combustible spec sheet (PDF)· Non-combustible mantel install guide (PDF)Ask us before you order
