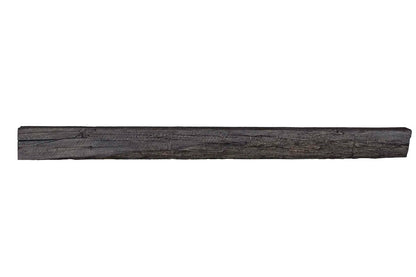

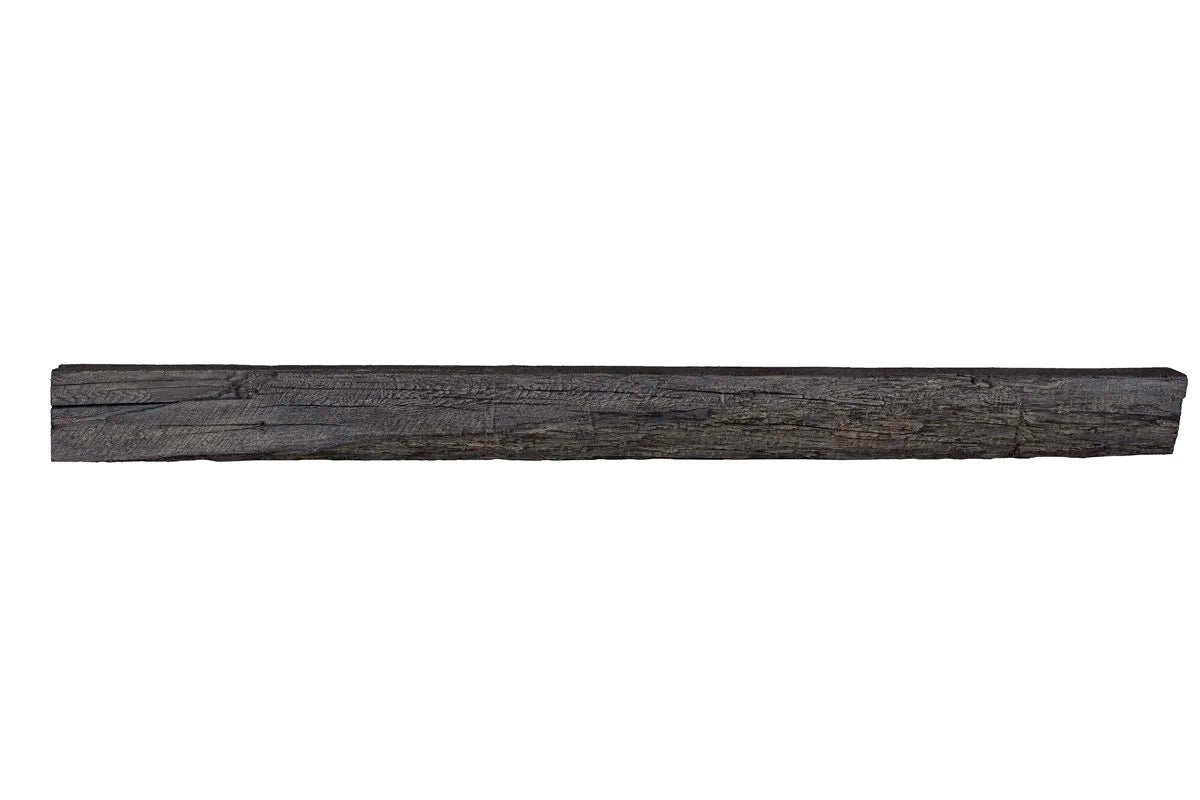

• Lexington Hearth Cabin Pine mantel in Eclipse, front view

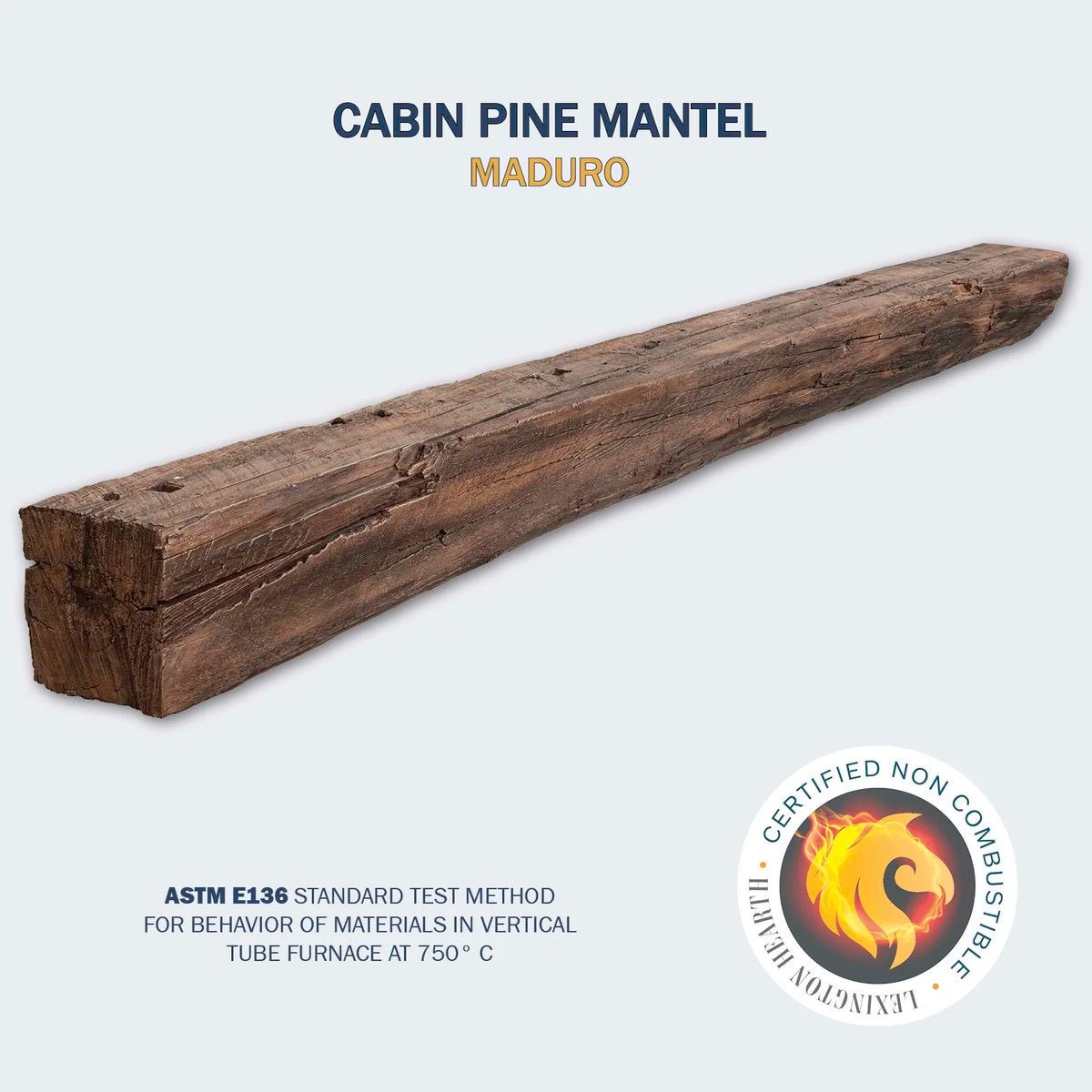

  • Lexington Hearth Cabin Pine non-combustible mantel shelf

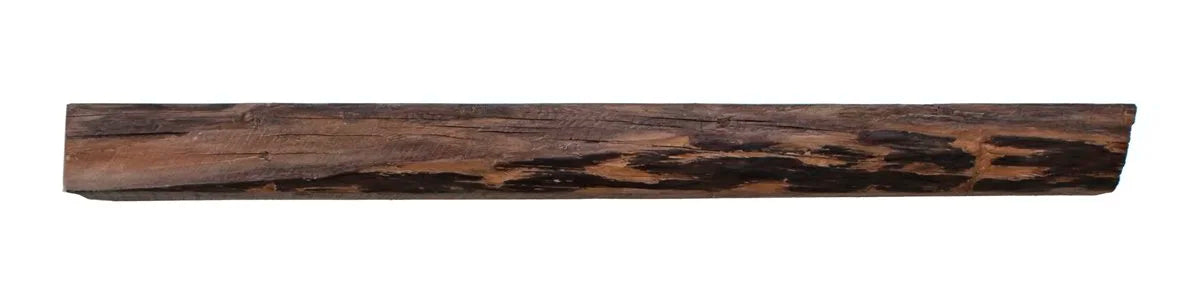

  • Lexington Hearth Cabin Pine mantel in Maduro, front view

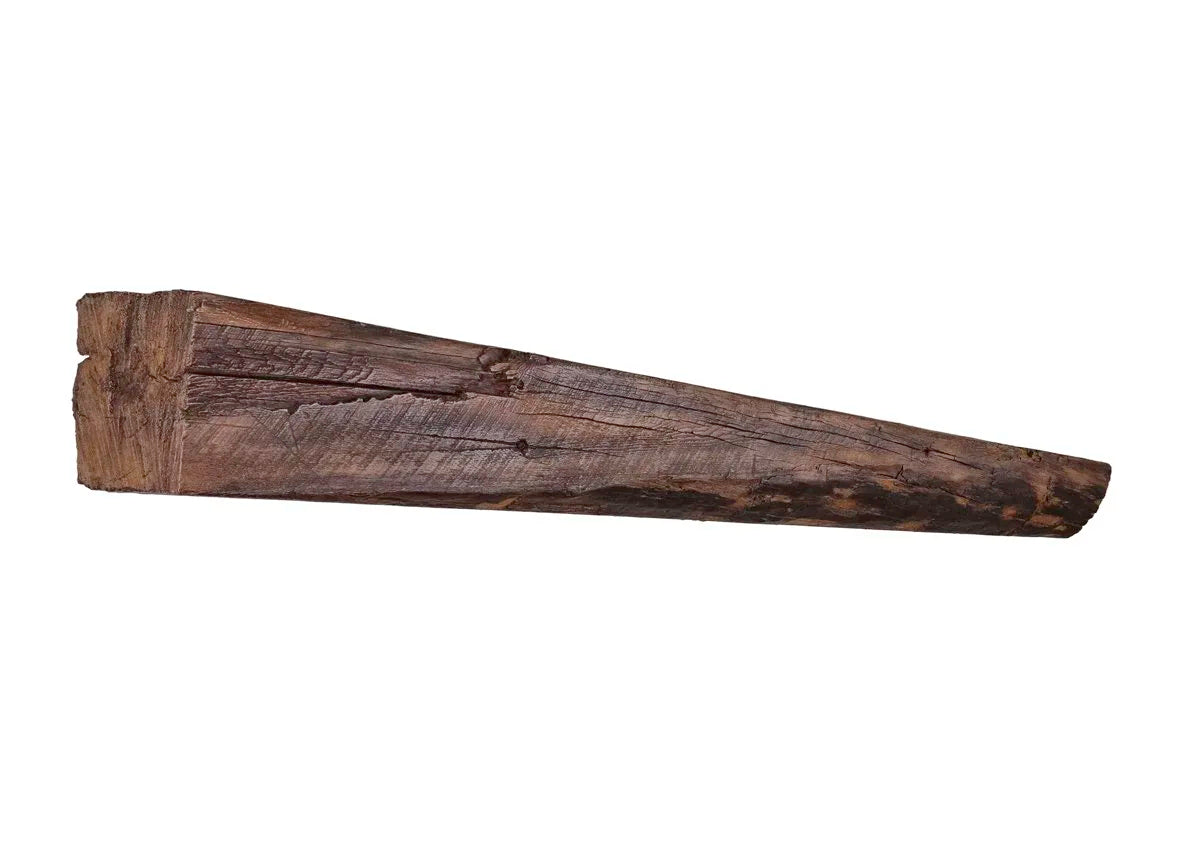

  • Lexington Hearth Cabin Pine mantel in Maduro, left end view

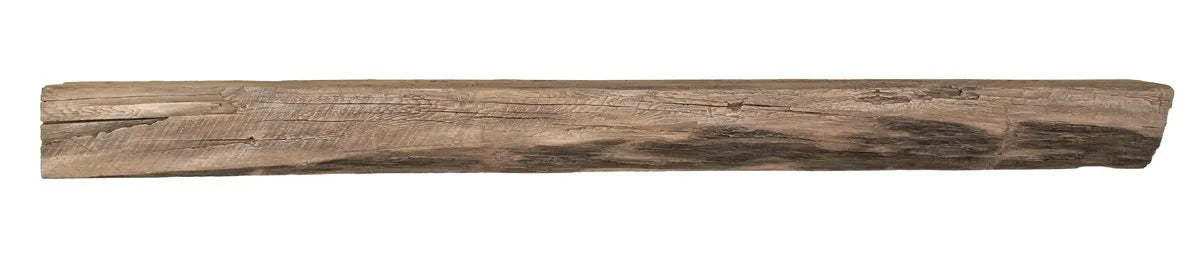

  • Lexington Hearth Cabin Pine mantel in Pale Honey, front view

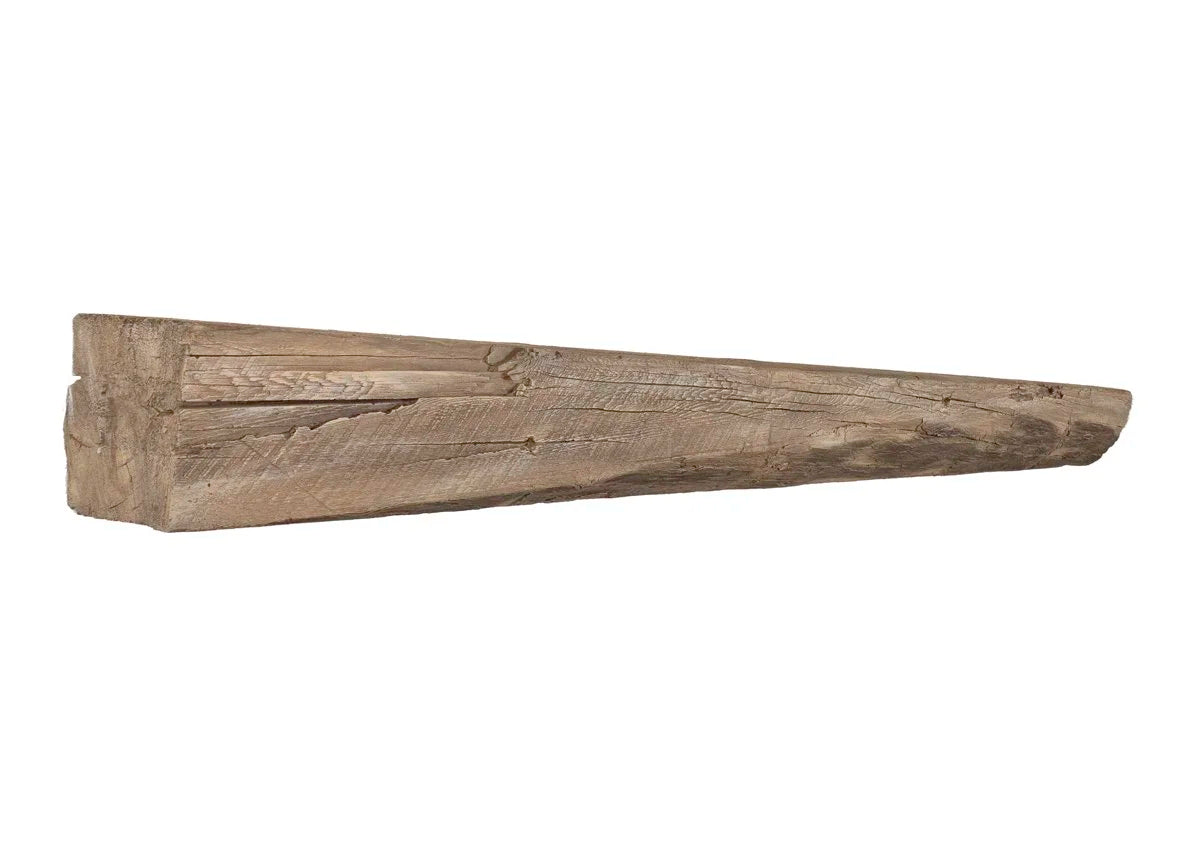

  • Lexington Hearth Cabin Pine mantel in Pale Honey, left angle view

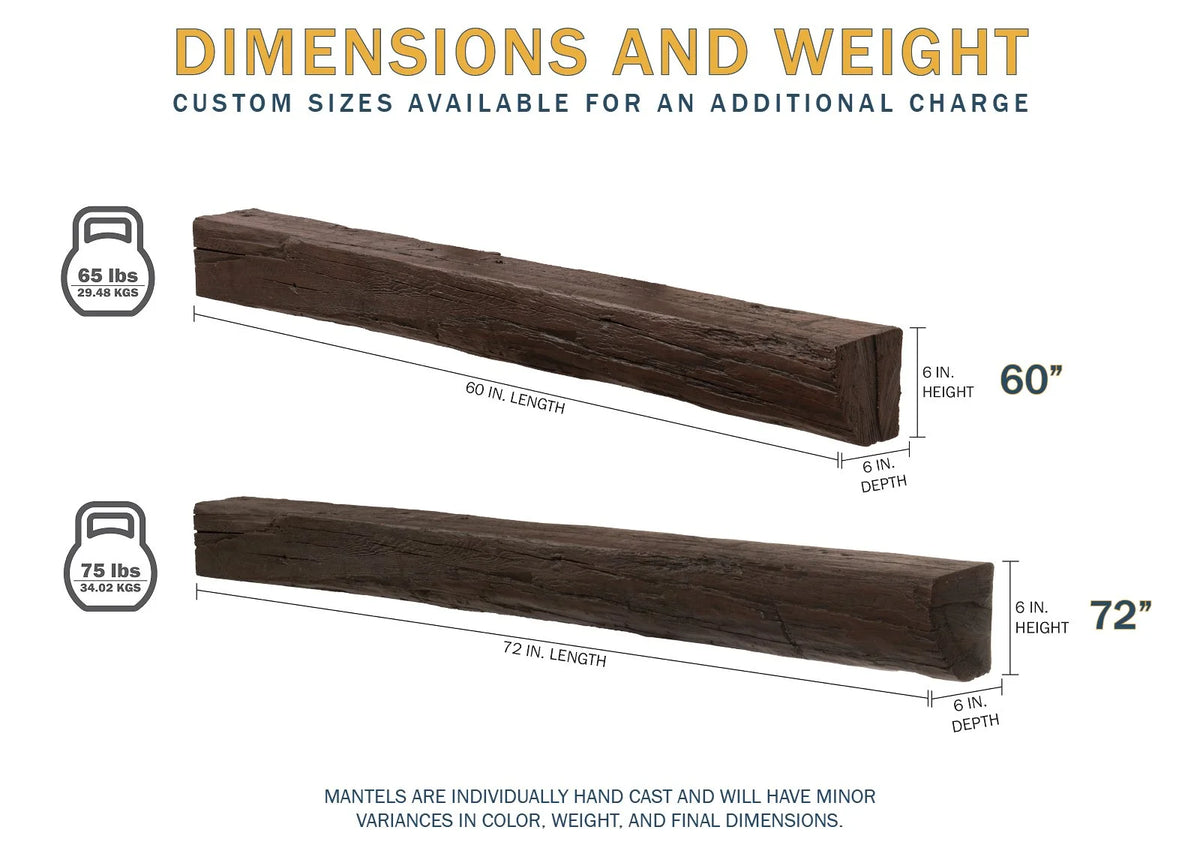

  • Lexington Hearth Cabin Pine dimension chart: 60 inch at 65 lbs and 72 inch at 75 lbs, 6 inches high and deep
1 3

Lexington

Lexington Hearth Cabin Pine Non-Combustible Mantel

Lexington Hearth Cabin Pine Non-Combustible Mantel

$1,449.00
$1,449.00
Sale Sold out
Shipping calculated at checkout.
Freight Shipping Notice This item may require freight delivery due to its size or weight. Please complete your order normally. Qualifying freight ships free to 44 states plus Washington, DC. Alaska, Hawaii, Idaho, Montana, North Dakota, and South Dakota require a freight quote, and oversized pallets may require a quote to any destination. If a quote is needed, we will contact you after your order is placed. Freight charges are not included unless specifically shown at checkout, and any additional freight charge must be quoted, approved and paid before the order ships.
Lexington Hearth Cabin Pine Non-Combustible Mantel
View full details

The Lexington Hearth Cabin Pine is a non-combustible mantel shelf cast to look like a pine timber, with a pine bark texture, a square-to-round edge, splits, insect damage, deep checking, knots and saw marks. It is 6 inches high and 6 inches deep, and this listing covers the 60 and 72 inch lengths. It is cast in Burncrete, Lexington Hearth's non-combustible formulation certified to ASTM E136, and hand-painted in Lexington, Kentucky. The compact square beam suits cabins and smaller fireplace walls.

6" H x 6" D60" and 72" lengths
ASTM E136Certified non-combustible
Bracket and screws includedMounts into the wall studs
3 finishes listedHand-painted in Kentucky

Specifications

ModelCabin Pine Non-Combustible Mantel
Part numbersCP-5-LH-EC, CP-5-LH-MD, CP-5-LH-PH, CP-6-LH-MD, CP-6-LH-PH
Profile6" high x 6" deep
Lengths listed60" and 72"
Weight65 lbs (60"), 75 lbs (72")
MaterialBurncrete non-combustible casting, hollow core
CertificationNon-combustible per ASTM E136 (vertical tube furnace at 750°C)
Surface detailPine bark texture, square-to-round edge, splits, checking, knots
Finishes listedEclipse, Maduro, Pale Honey
In the boxMantel, 3" x 2" mounting bracket, screws, touch-up kit (filler putty, paint, brush)
Made inLexington, Kentucky, USA
BrandLexington Hearth
Check the fireplace clearance before you mount it.Lexington Hearth's guideline is at least 6 inches above the fireplace for units under 50,000 BTU and 12 inches for 50,000 BTU and up, and it defers to local codes and the fireplace manufacturer's minimum clearances. Each piece is hand-cast and hand-painted, so color, weight and final size vary slightly.

Questions people ask us

Which lengths and finishes can I order?

We list Eclipse in 60 inch; Maduro in 60 and 72 inch; Pale Honey in 60 and 72 inch. Lexington Hearth paints the Cabin Pine in five standard finishes and also makes custom colors and lengths at the factory, so ask us if you need a different combination.

How far above the fireplace can it go?

Lexington Hearth's install guide gives a general guideline for its non-combustible mantels: the bottom of the mantel at least 6 inches above the fireplace for units under 50,000 BTU, and at least 12 inches for units of 50,000 BTU and up. It also says to follow local building codes and the fireplace manufacturer's minimum clearances. Your fireplace manual has the final say, so check its mantel clearance before you mark the wall.

How does it mount?

It hangs on the mounting bracket in the box. The bracket screws into the wall studs with the 2.5 inch screws, then three 2.25 inch self-drilling screws fix the mantel to the bracket through the pre-drilled holes in its top. Lexington Hearth calls for 3 studs for a 60 inch mantel and 4 studs for a 72 inch mantel, with each screw at least 1.5 inches into the stud. On masonry, use anchors rated for four times the load. Mantels are heavy, so plan on two people.

Can I get a different length?

Lexington Hearth can cast the Cabin Pine to a custom length at the factory. Custom work carries an added charge, and Lexington Hearth treats custom sales as final except for manufacturing defects. Ask us for a quote.

Can I cut or drill it?

No. Lexington Hearth warns against drilling, sawing, sanding or machining its cast mantels, because that can release ceramic fiber and crystalline silica dust. Use the pre-drilled holes, and if you need a different length, ask us about a factory custom length. Also keep tape off the painted finish; cover it with paper or plastic first.

Goes with this

Half-Round Sleeper MantelA half-round log look All Lexington Hearth mantelsRustic, stone and classic styles Lexington HearthMantels and mantel accessories

Manuals and warranty

Lexington manuals and warranty

Warranty terms come from Lexington and depend on the product. Read the manual and the warranty for your model before you order.

Our warranty library· Cabin Pine spec sheet (PDF)· Non-combustible mantel install guide (PDF)
Not sure this is the right mantel? Send us a photo of the fireplace wall, the opening width and the fireplace model, and we will help you pick the length and check clearance before you order. No obligation either way.
