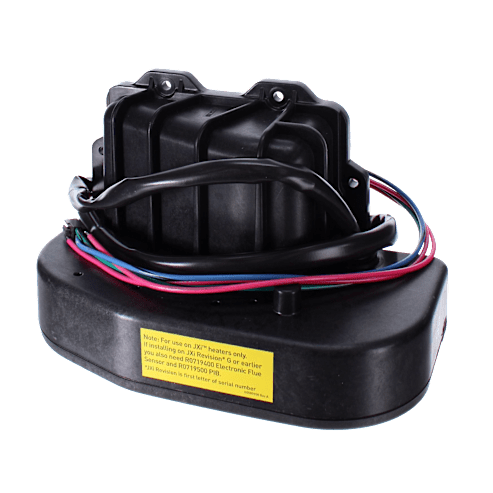

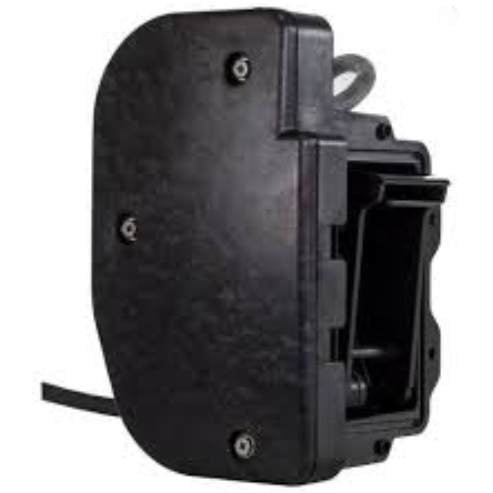

Jandy JXIVFKIT VersaFlo Bypass Accessory Kit for JXi Heaters
Jandy JXIVFKIT VersaFlo Bypass Accessory Kit for JXi Heaters
Jandy JXIVFKIT VersaFlo Bypass Accessory Kit for JXi & JXiQ Heaters
Upgrade Jandy JXi Heater Efficiency with VersaFlo Integrated Bypass
The Jandy JXIVFKIT VersaFlo Bypass Accessory Kit is an add-on bypass kit designed for compatible Jandy JXi and JXiQ pool and spa gas heaters. This kit adds VersaFlo integrated bypass functionality, allowing water to be directed through the heater heat exchanger when heat is needed and bypassed when the heater is not actively heating.
By reducing unnecessary water flow through the heat exchanger during non-heating operation, the VersaFlo bypass system can help improve hydraulic efficiency, support lower pump speeds, reduce system head loss, and limit unnecessary wear on the heater water path. It is a smart upgrade for JXi heater installations using variable-speed pumps, automation, or energy-focused equipment pad designs.
ATB Compatibility Note
The JXIVFKIT is an accessory kit for compatible Jandy JXi and JXiQ pool and spa heaters. It is not a complete heater, not a universal bypass valve, and not a replacement for standard pool plumbing check valves or manual bypass assemblies. Confirm your exact heater model and installation requirements before ordering.
Why Choose the Jandy JXIVFKIT VersaFlo Kit?
- Adds VersaFlo integrated bypass functionality to compatible Jandy JXi and JXiQ heaters
- Directs water through the heat exchanger only when heat is needed
- Helps reduce head loss through the heater during non-heating circulation
- Supports variable-speed pump efficiency by reducing unnecessary restriction
- Helps limit unnecessary heat exchanger exposure when the heater is not firing
- Designed for professional installation on compatible Jandy heater platforms
- Useful upgrade for automation-based systems and energy-conscious pool equipment pads
Product Details
| Brand | Jandy |
| Manufacturer Part Number | JXIVFKIT |
| Product Type | VersaFlo Integrated Bypass Accessory Kit |
| Compatible Heater Families | Jandy JXi and JXiQ pool and spa gas heaters |
| Function | Automatically bypasses the heater heat exchanger when heat is not being called |
| Application | Residential pool and spa heater accessory |
| Common Use | Hydraulic efficiency upgrade for compatible Jandy heater installations |
| Installation | Professional installation recommended |
What Comes With the JXIVFKIT?
The Jandy JXIVFKIT is sold as a VersaFlo bypass accessory kit for compatible JXi heater installations. The kit is designed to provide the parts needed to add the integrated bypass assembly to the heater.
Typical Kit Components
| Bypass Assembly with Wiring Harness | Primary VersaFlo bypass component |
| Bypass Header Gasket | Sealing gasket for the bypass/header connection |
| Attachment Screws | Mounting hardware for the assembly |
| Wire Ties / Cable Grommet | Used for wiring management and routing |
| Service Tool | Included installation tool may vary by kit packaging |
Kit contents can vary by packaging or revision. Always review the included manufacturer instructions before installation and confirm all required parts are present before disassembling the heater.
How VersaFlo Integrated Bypass Works
The VersaFlo integrated bypass system is designed to reduce unnecessary restriction through the heater when the pool is circulating but the heater is not actively heating. When there is no call for heat, water can be routed around the heat exchanger. When heat is needed, the bypass changes position so water is directed through the heat exchanger.
This is especially useful on equipment pads with variable-speed pumps. Instead of forcing all circulation water through the heater water path all the time, VersaFlo helps reduce pressure loss when the heater is not firing. That can support lower pump speeds, better circulation efficiency, and reduced hydraulic strain on the system.
The heater is only actively heating during part of normal system operation. VersaFlo helps the rest of the circulation time run more efficiently by reducing unnecessary flow through the heat exchanger when heat is not required.
Compatibility and Fitment
The Jandy JXIVFKIT is designed for compatible Jandy JXi and JXiQ pool and spa gas heaters. It should be matched to the correct heater family and installed according to the manufacturer’s VersaFlo installation instructions.
Compatible Heater Families
| Jandy JXi | Compatible JXi pool and spa gas heater models |
| Jandy JXiQ | Compatible JXiQ pool and spa gas heater models |
Not every heater installation is the same. Before ordering, confirm your heater model, cabinet configuration, heater age, automation setup, and whether your existing heater already includes VersaFlo from the factory.
This kit is not a universal bypass for other heater brands. It is intended for compatible Jandy JXi and JXiQ heater platforms only.
When Should You Choose the JXIVFKIT?
- You have a compatible Jandy JXi or JXiQ heater
- You want to add VersaFlo integrated bypass functionality
- Your pool system uses a variable-speed pump
- You want to reduce unnecessary restriction through the heater during non-heating circulation
- You are upgrading an existing JXi heater installation for improved hydraulic efficiency
- You want to help reduce wear on the heater water path when heat is not being used
- You are working with a qualified pool professional who can confirm fitment and install the kit properly
JXIVFKIT vs Factory-Installed VersaFlo
Some Jandy heater models may be sold with VersaFlo technology already factory-installed. The JXIVFKIT is an accessory kit used to add VersaFlo functionality to compatible heater installations that do not already include the integrated bypass.
| Configuration | What It Means | Best Next Step |
| Standard JXi / JXiQ without VersaFlo | Heater does not already have integrated bypass functionality | JXIVFKIT may be the correct accessory kit |
| JXi / JXiQ with factory VersaFlo | Heater already includes integrated bypass functionality | Accessory kit may not be needed |
| Different heater brand | Not a Jandy JXi or JXiQ platform | Do not use this kit as a universal bypass |
ATB Expert Tip
The best use case for the JXIVFKIT is a compatible Jandy JXi or JXiQ heater paired with a variable-speed pump. If the heater is not calling for heat, bypassing the heat exchanger can help reduce system restriction and support more efficient circulation. Confirm your exact heater model before ordering, especially if your heater may already have VersaFlo installed.
Installation Notes
The Jandy JXIVFKIT should be installed by a qualified pool professional familiar with Jandy JXi and JXiQ heaters. Installation requires opening the heater, installing the bypass assembly, routing the wiring harness, and confirming proper operation after installation.
Before installation, power should be turned off and the installer should follow the manufacturer’s instructions included with the kit. After installation, the system should be checked for proper water flow, bypass movement, heater operation, leak-free seals, and any control or automation communication requirements.
Pre-Install Checklist
- Confirm the heater is a compatible Jandy JXi or JXiQ model
- Confirm whether the heater already has VersaFlo installed
- Shut off power before opening or servicing the heater
- Inspect the heater water system and header area
- Confirm all kit components are included before disassembly
- Install the bypass assembly and wiring harness per manufacturer instructions
- Verify proper bypass operation after installation
- Check for leaks and confirm proper heater operation
Frequently Asked Questions
What is the Jandy JXIVFKIT?
The Jandy JXIVFKIT is a VersaFlo integrated bypass accessory kit for compatible Jandy JXi and JXiQ pool and spa gas heaters.
What does VersaFlo do?
VersaFlo allows water to bypass the heater heat exchanger when the heater is not actively calling for heat. When heating is needed, water is directed through the heat exchanger.
Does this kit fit every Jandy heater?
No. The JXIVFKIT is intended for compatible Jandy JXi and JXiQ heater platforms. It is not a universal bypass kit for all Jandy heaters or other brands.
Does this kit include a complete heater?
No. This listing is for the VersaFlo bypass accessory kit only. The heater is sold separately.
Is this useful with a variable-speed pump?
Yes. VersaFlo can be especially useful on systems with variable-speed pumps because reducing restriction through the heater during non-heating circulation can help support lower pump speeds and improved hydraulic efficiency.
Can this help reduce heater wear?
By bypassing the heat exchanger when heat is not needed, VersaFlo can reduce unnecessary water flow through the heater water path during normal circulation. Proper water chemistry and installation are still required to protect the heater.
Can I install this myself?
Professional installation is recommended. The kit requires heater disassembly, gasket sealing, wiring, and functional testing.
How do I confirm fitment?
Confirm the exact heater model number from the heater data plate and check whether the heater already has VersaFlo installed. If you are unsure, send us photos of the heater label, front cabinet, and internal water/header area.
Order the Jandy JXIVFKIT VersaFlo Bypass Kit from Aqua Terra Backyard
At Aqua Terra Backyard, we help pool owners and service professionals confirm the correct Jandy replacement parts and accessories before the order ships. The Jandy JXIVFKIT VersaFlo Bypass Accessory Kit is a smart efficiency upgrade for compatible Jandy JXi and JXiQ heater installations, especially when paired with variable-speed pumps and modern automation setups.
Need help confirming compatibility? Send us photos of your Jandy heater data plate, front cabinet, and equipment pad. We can help confirm whether the JXIVFKIT is the correct VersaFlo accessory kit for your heater before you order.
