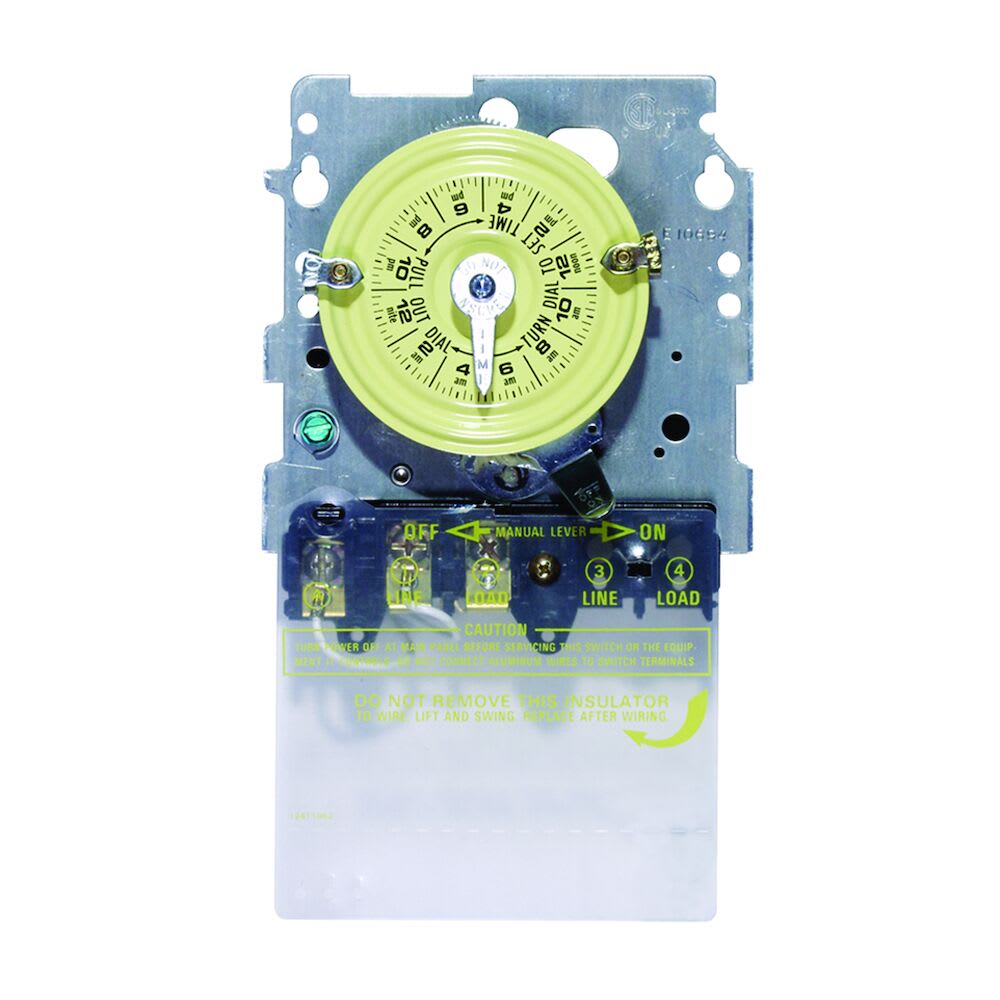

Intermatic Timer Mechanism, 208-277V, SPDT, 2-Speed | T106M

What This Part Is Used For
The Intermatic T106M is a mechanical timer mechanism for 208 to 277 volt applications. It is commonly used to control two speed pool pump circuits within compatible enclosures.

Why This Part Matters
Two speed pumps require proper switching between high and low settings. If the mechanism fails, pump speed control may not function correctly. This can affect energy use and circulation performance. Reliable switching ensures structured pump operation.

Key Features and Specifications

• Manufacturer part number T106M
• 208 to 277 volt configuration
• SPDT switching configuration
• Supports 2-speed control applications
• Mechanical 24 hour timer mechanism

Installation and Fitment Guidance
Verify voltage and pump wiring configuration before installation. Install only in compatible Intermatic enclosures. Confirm by manufacturer part number before ordering.

About the Intermatic Brand
Intermatic timer systems are widely used in structured pool control environments. Their multi configuration mechanisms support single speed and two speed equipment. The modular design allows targeted repairs without full panel replacement. Intermatic products are familiar to most pool service professionals.

Common Service Context
Technicians encounter the T106M when servicing older two speed pump installations. It is often replaced when speed switching fails or when upgrading worn mechanical timers.
